X201
X201

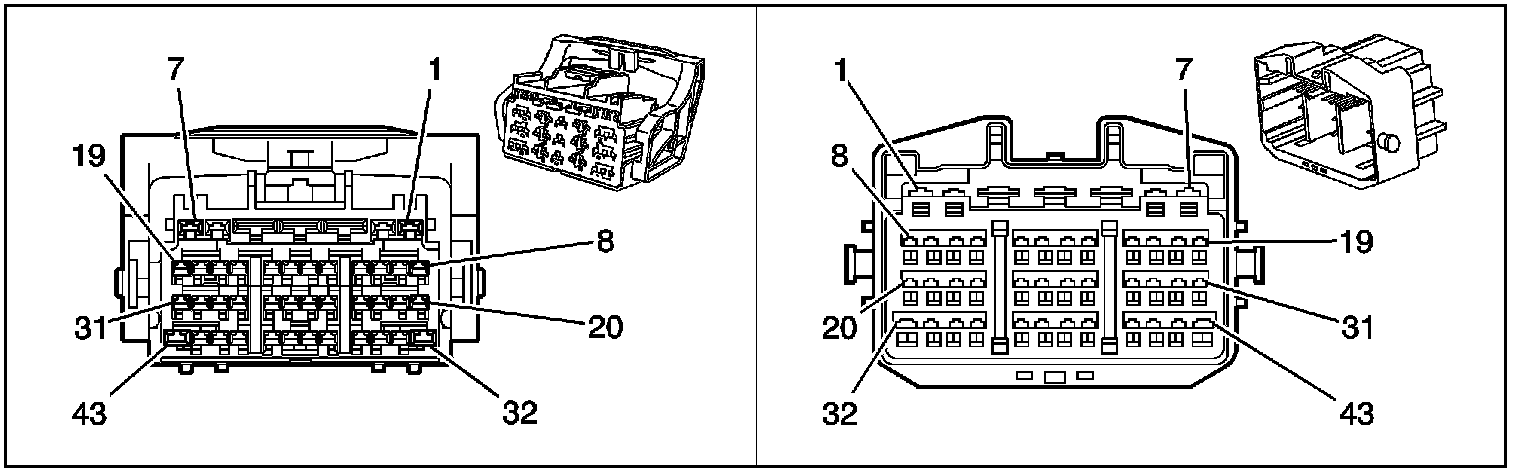

Inline Harness Connector End Views

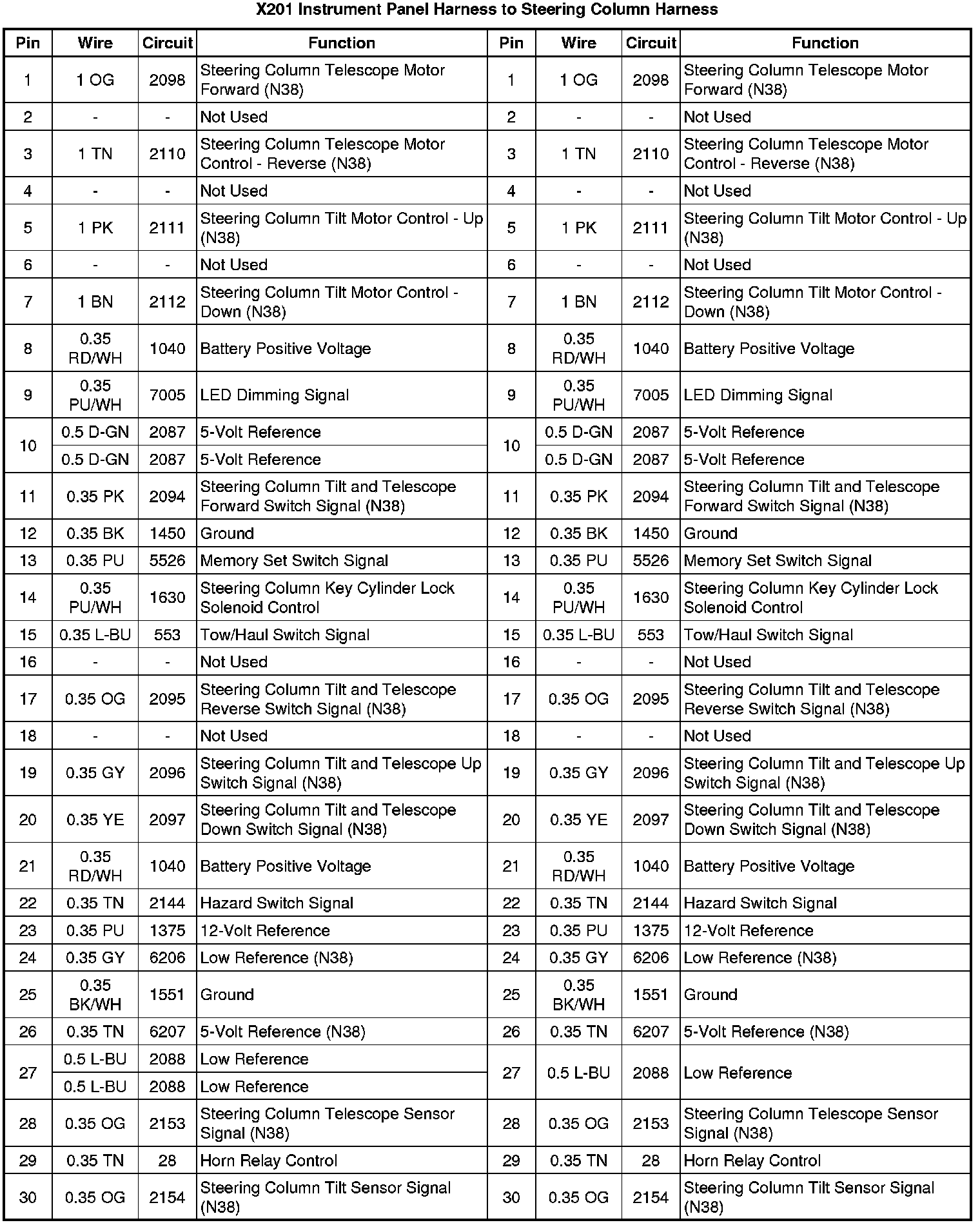

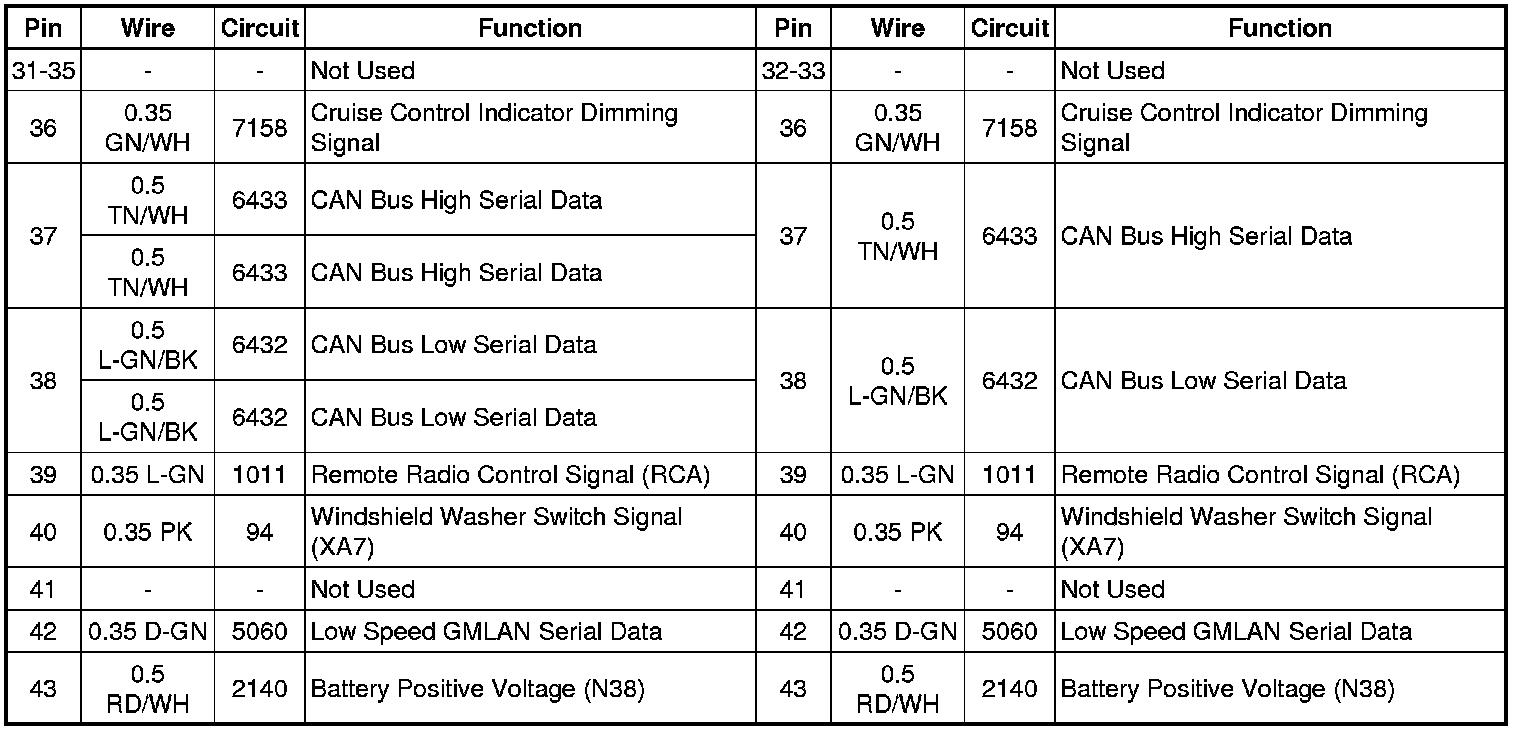

X201 Instrument Panel Harness to Steering Column Harness
