X151

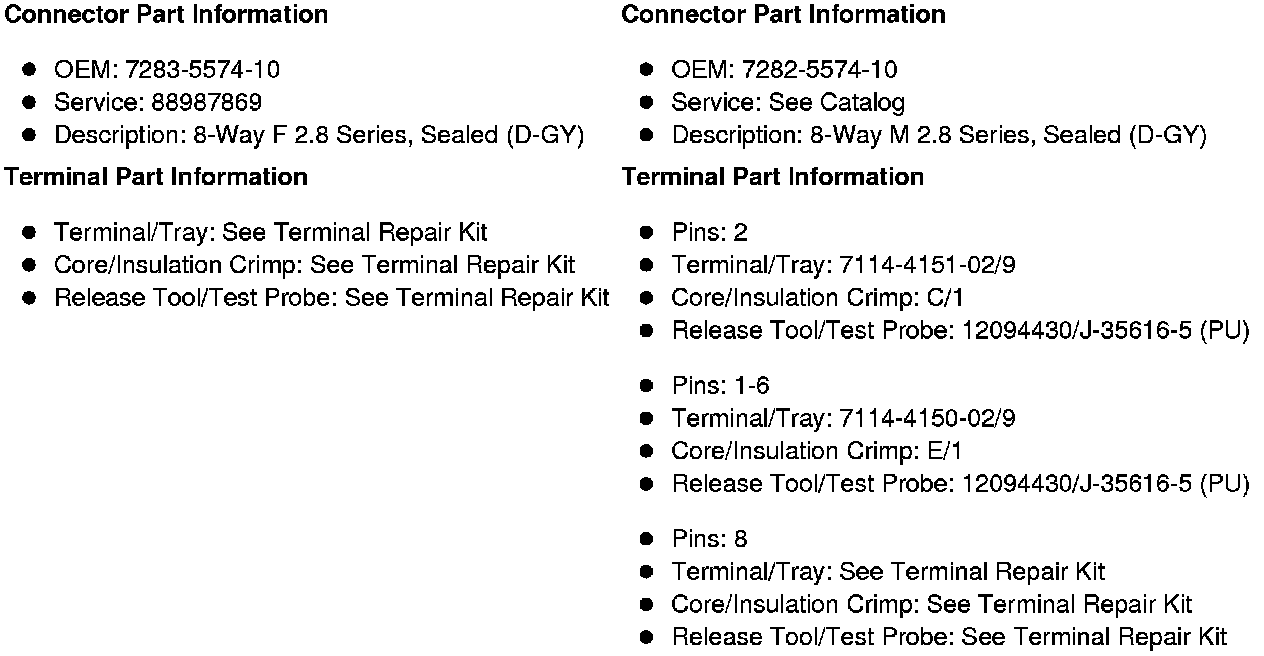

Inline Harness Connector End Views

X151 Forward Lamp Harness to Left Headlamp Harness (W49 without TSH)

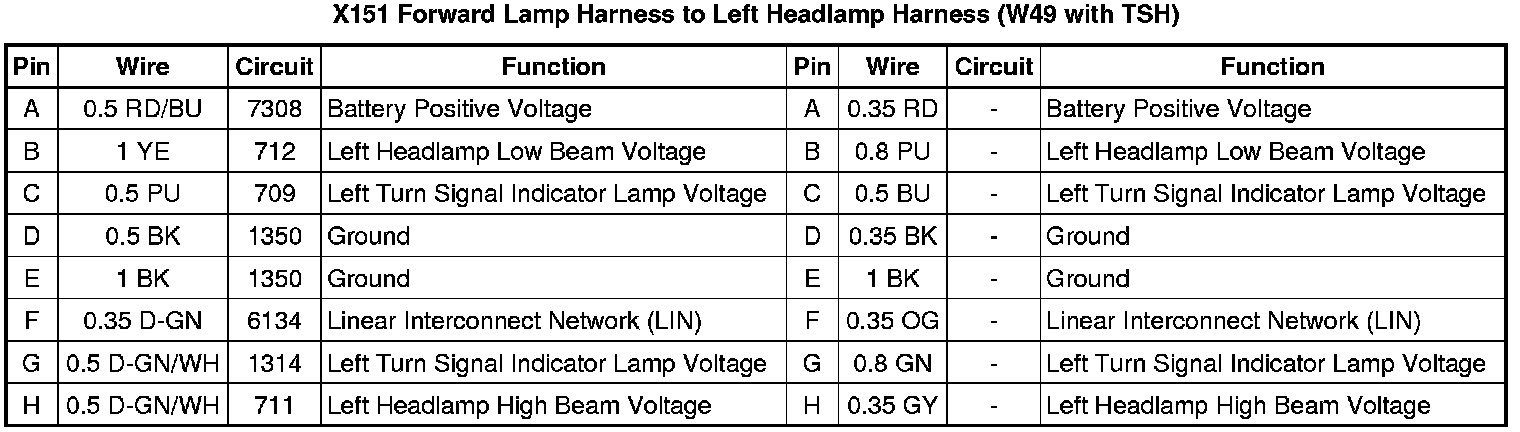

X151 Forward Lamp Harness to Left Headlamp Harness (W49 with TSH)














X151 Forward Lamp Harness to Left Headlamp Harness (WDA with TVD)














X151 Forward Lamp Harness to Left Headlamp Harness (WDA without TVD)














X151 Forward Lamp Harness to Left Headlamp Harness (X88)














X151 Forward Lamp Harness to Left Headlamp Harness (Z88 without TVD)














X151 Left Headlamp Harness to Forward Lamp Harness (Z88 with TVD)
