Parking Lamp




Component Connector End Views

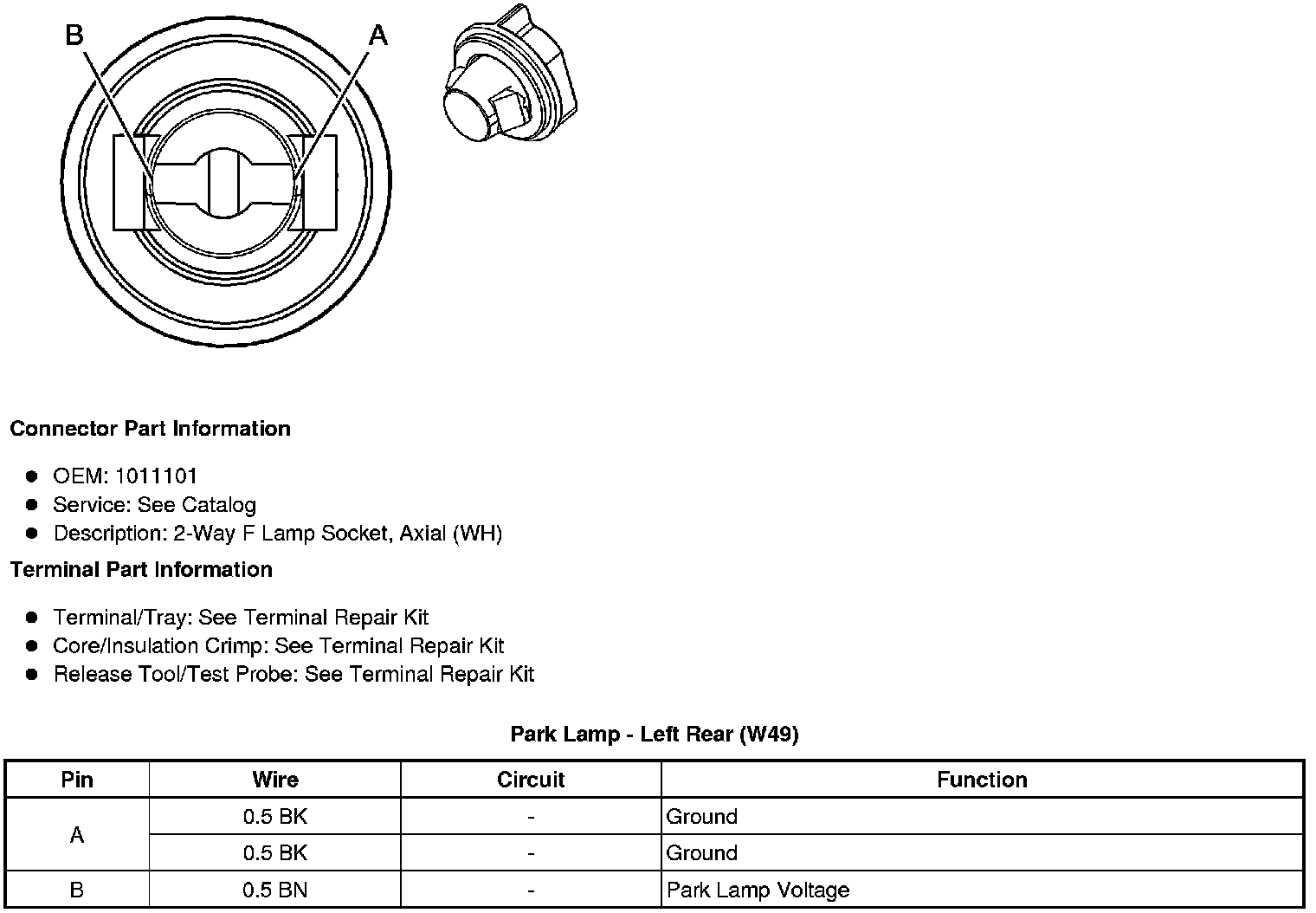

Park Lamp - Left Rear (W49)






Park Lamp - Left Rear (Z88)






Park Lamp - Right Rear (W49)






Park Lamp - Right Rear (Z88)

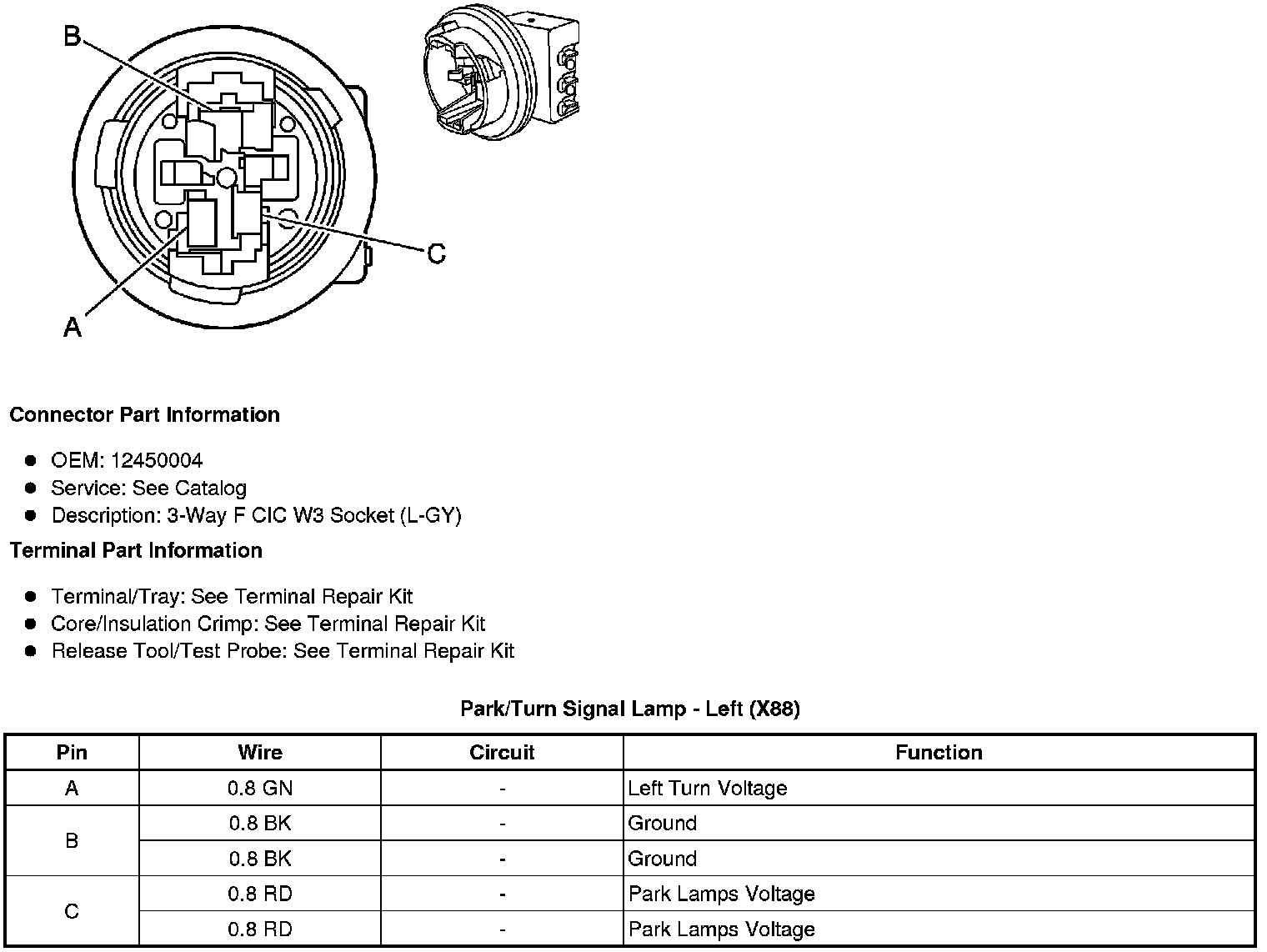

Park/Turn Signal Lamp - Left (X88)






Park/Turn Signal Lamp - Right (X88)
