Marker Lamp




Component Connector End Views

Marker Lamp - Left Front (W49 or Z88)






Marker Lamp - Left Front (WDA)






Marker Lamp - Left Front (X88)






Marker Lamp - Left Rear (W49)






Marker Lamp - Left Rear (WDA)






Marker Lamp - Left Rear (X88)

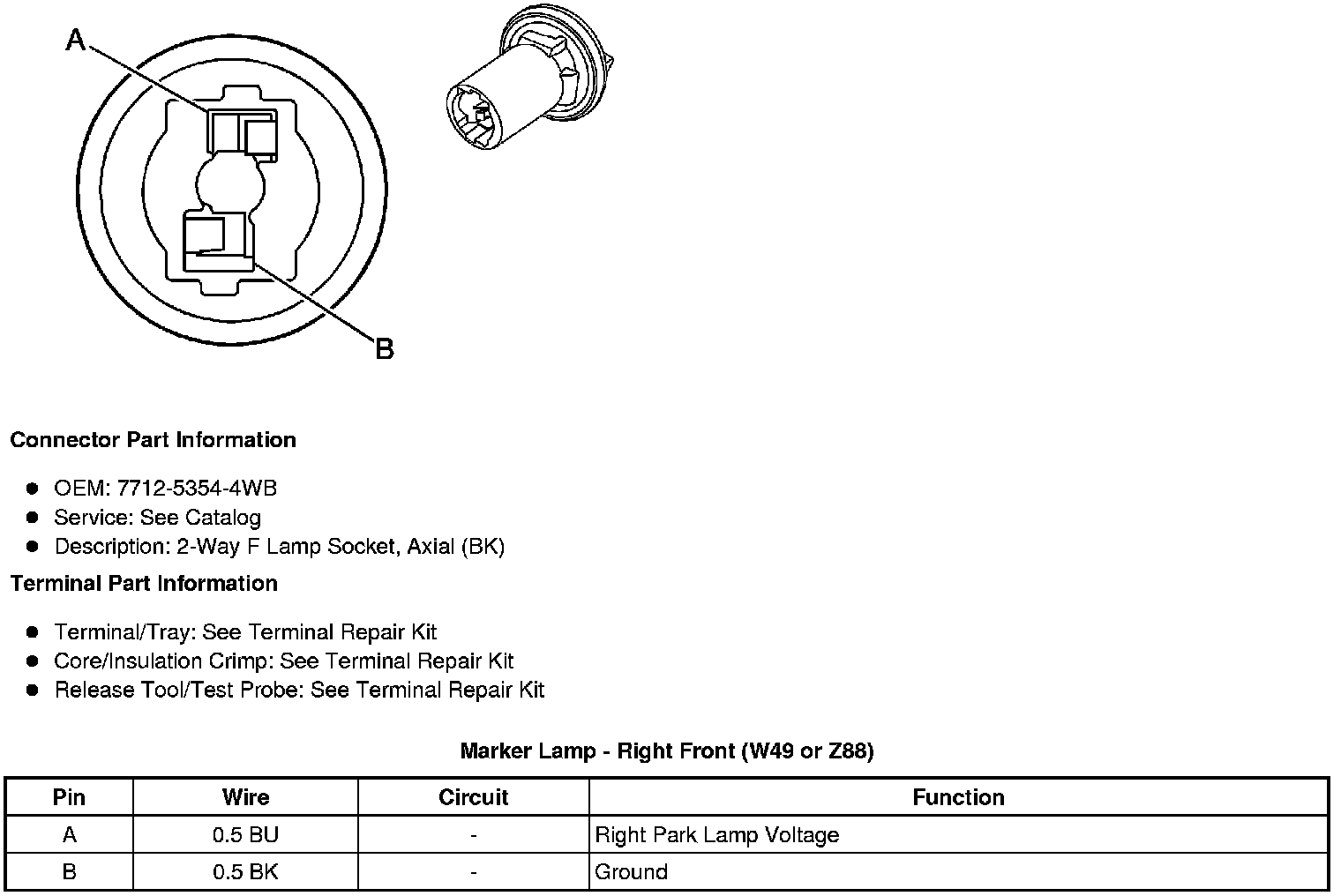

Marker Lamp - Right Front (W49 or Z88)






Marker Lamp - Right Front (WDA)

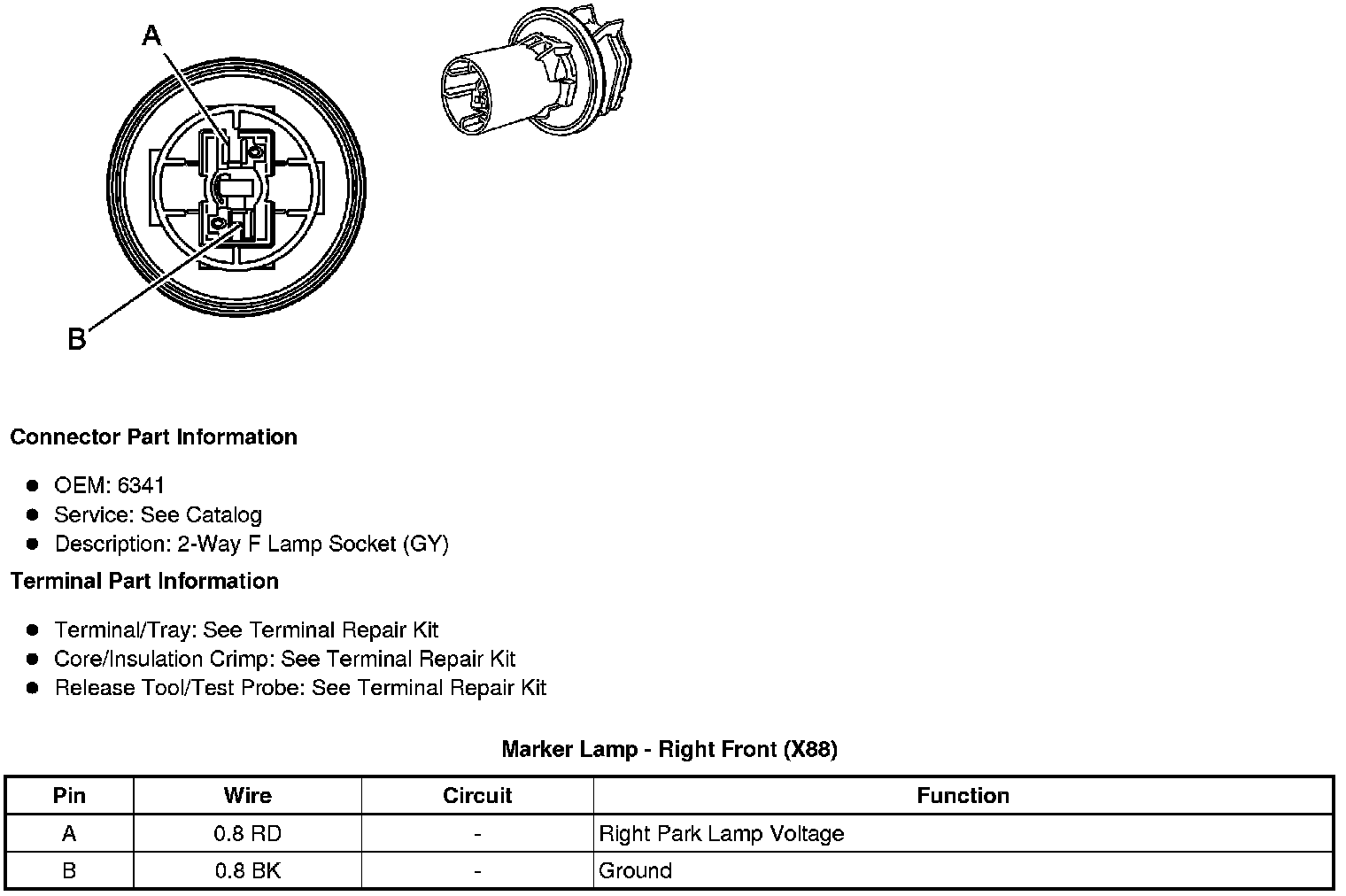

Marker Lamp - Right Front (X88)

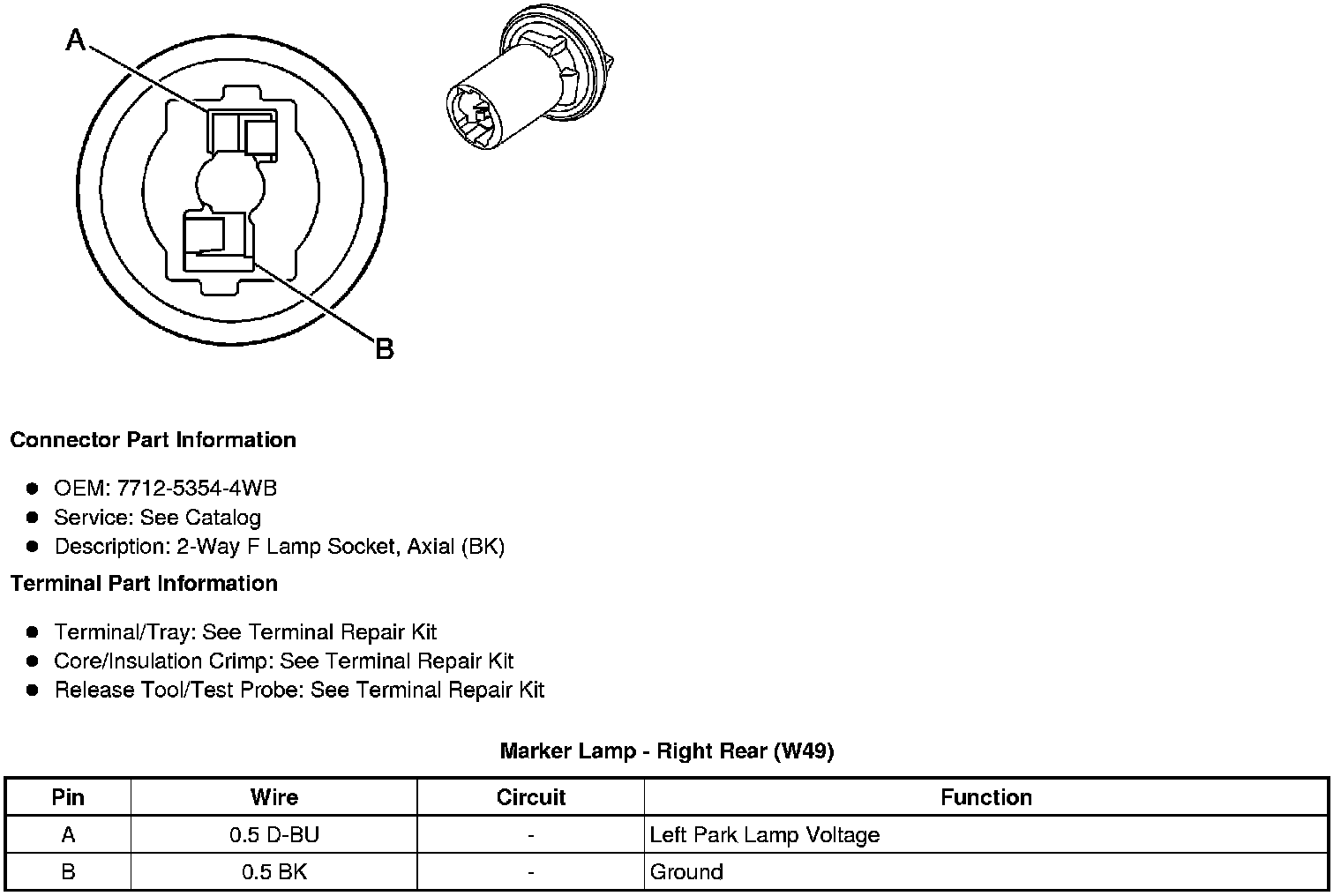

Marker Lamp - Right Rear (W49)






Marker Lamp - Right Rear (WDA)






Marker Lamp - Right Rear (X88)
