Fog/Driving Lamp




Component Connector End Views

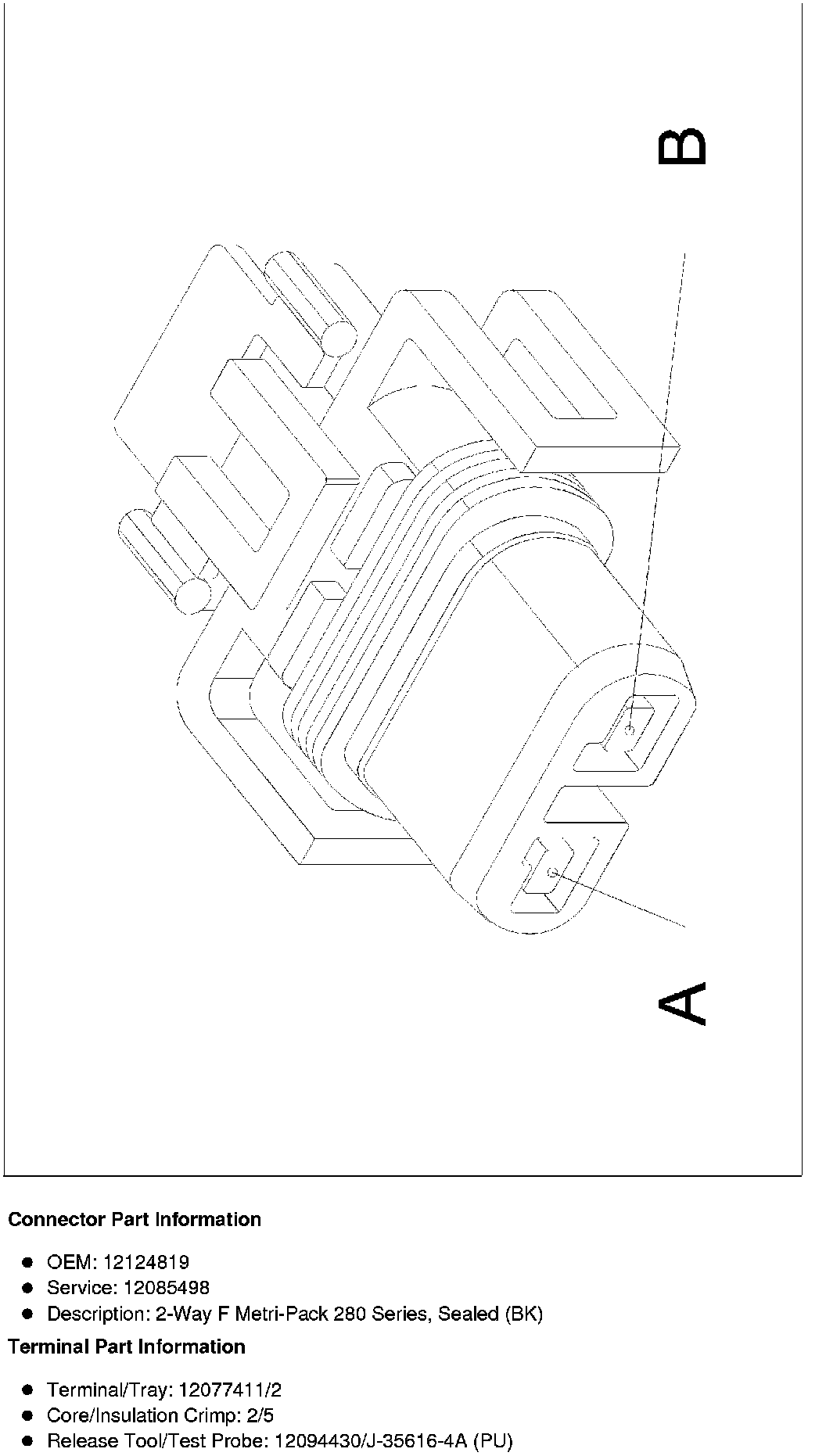

Fog Lamp - Left Front (W49 or WDA with T96)

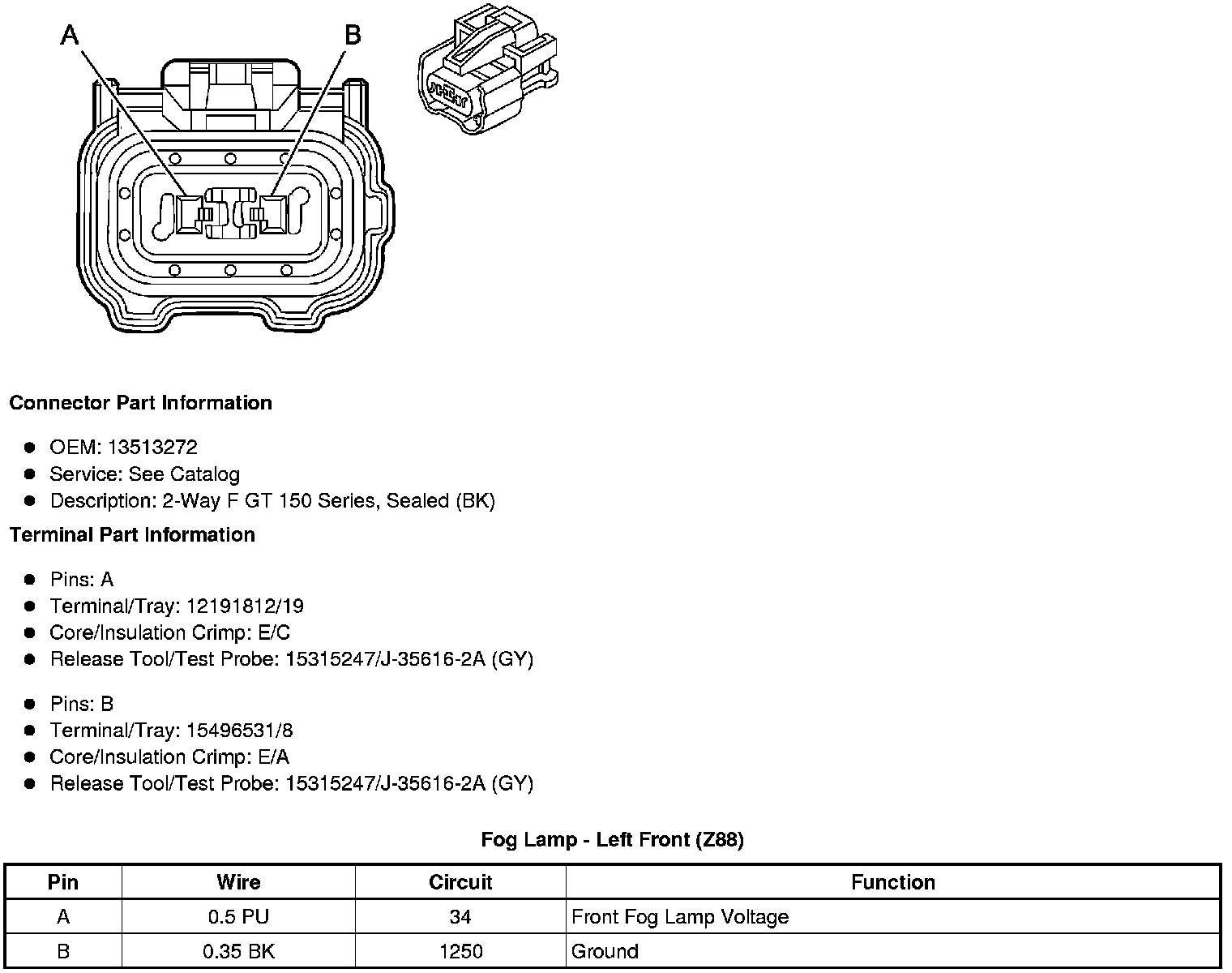

Fog Lamp - Left Front (Z88)






Fog Lamp - Right Front (W49 or WDA with T96)

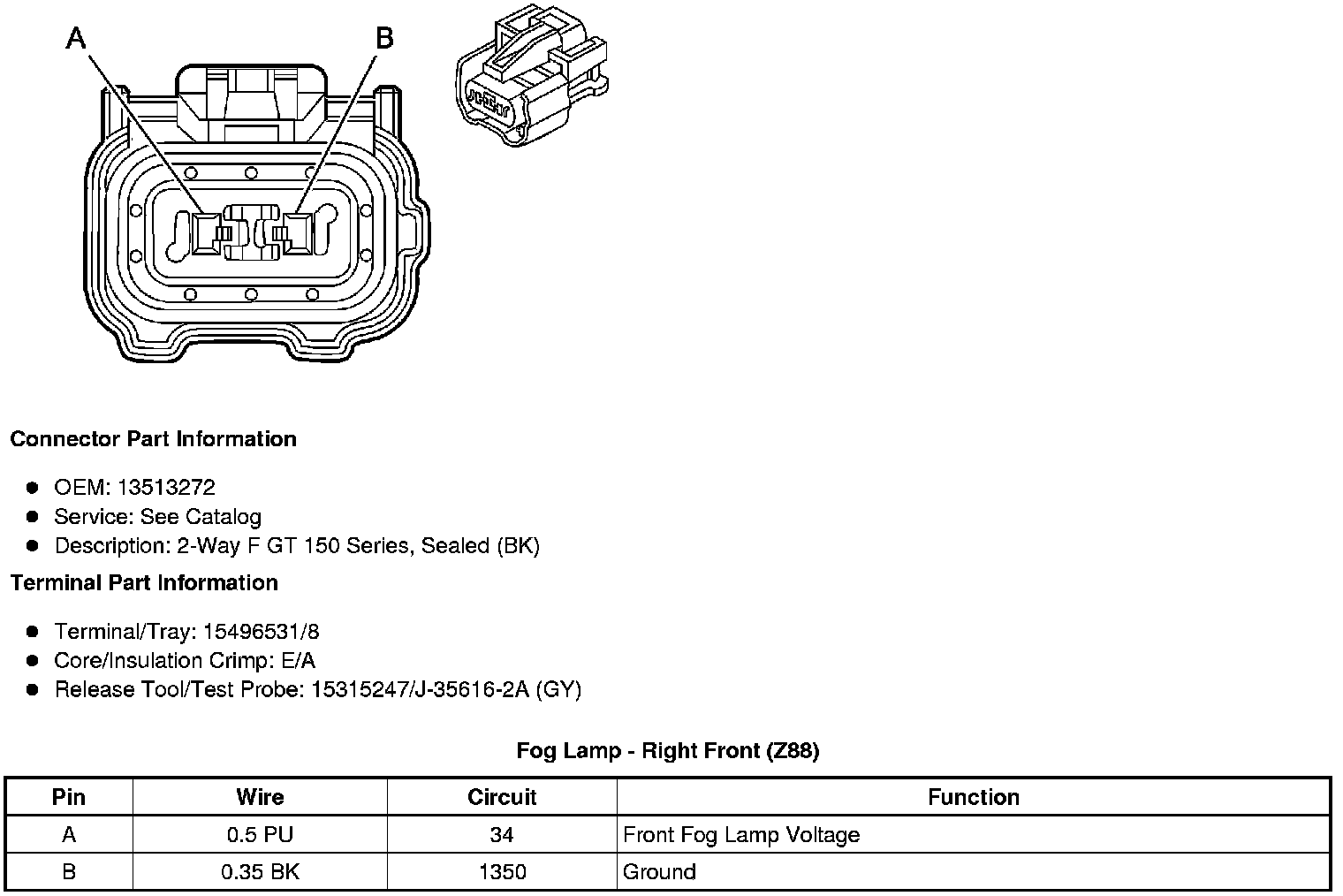

Fog Lamp - Right Front (Z88)
