Instrument Cluster / Carrier




Component Connector End Views

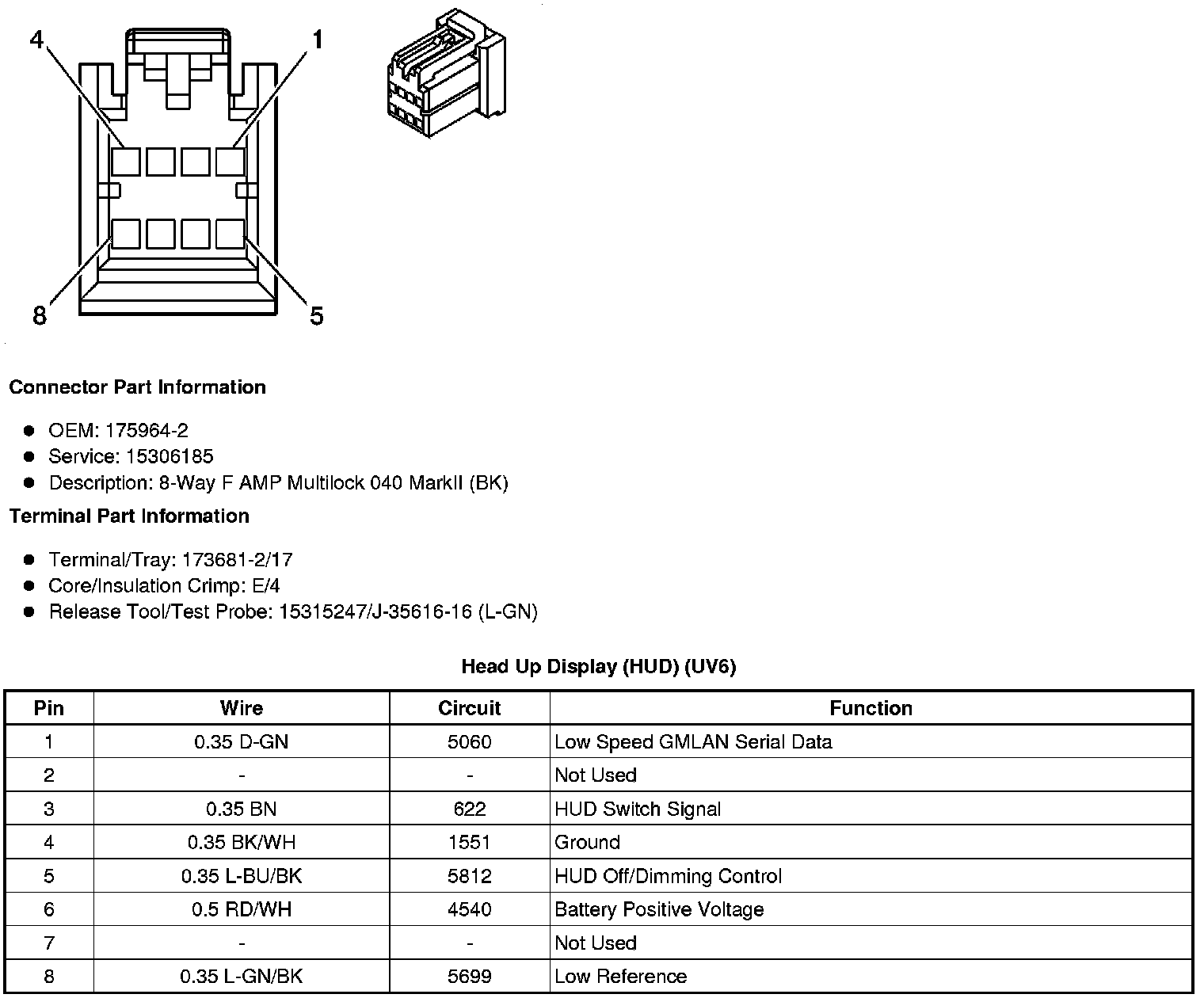

Head Up Display (HUD) (UV6)






Head Up Display (HUD) Switch (UV6)

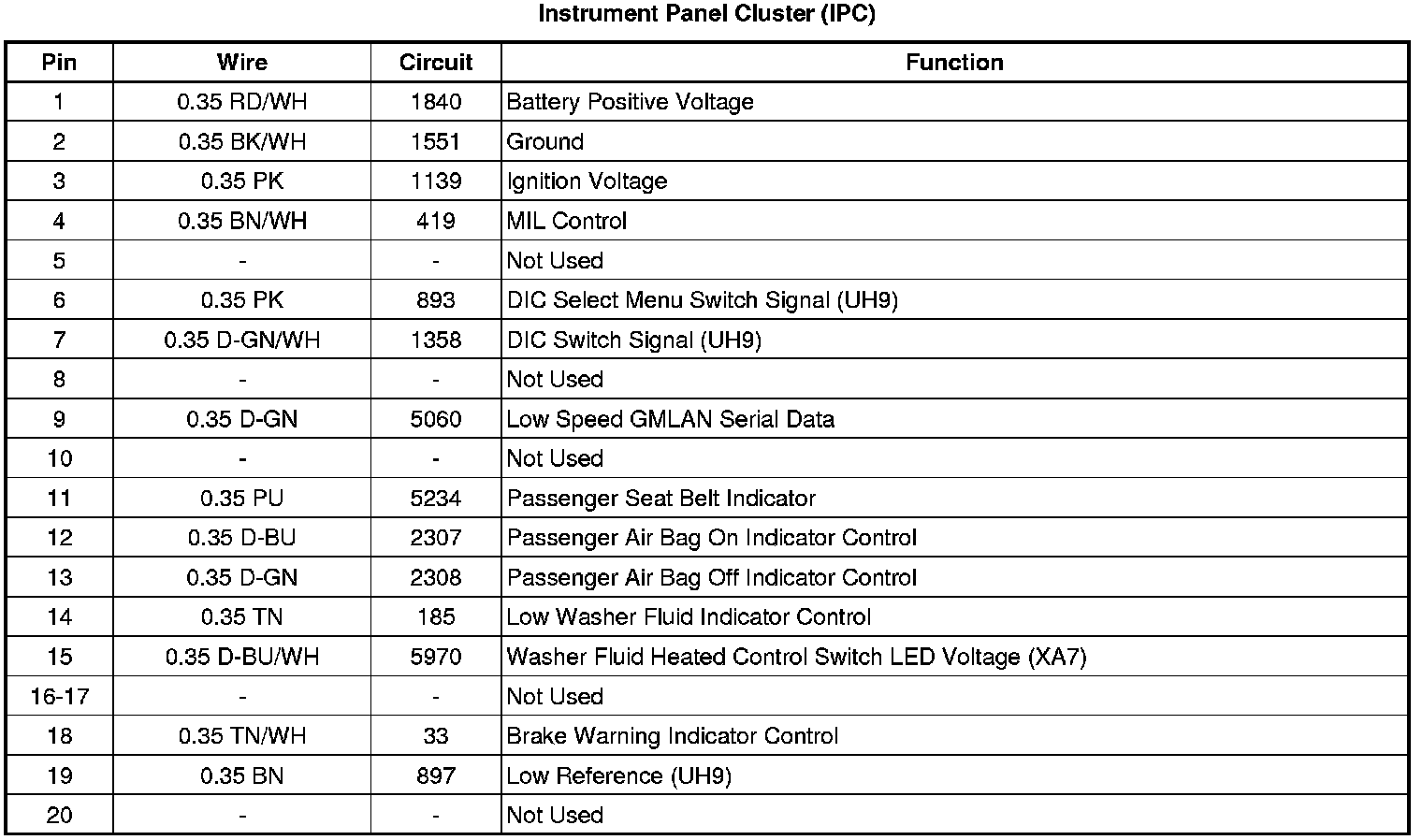

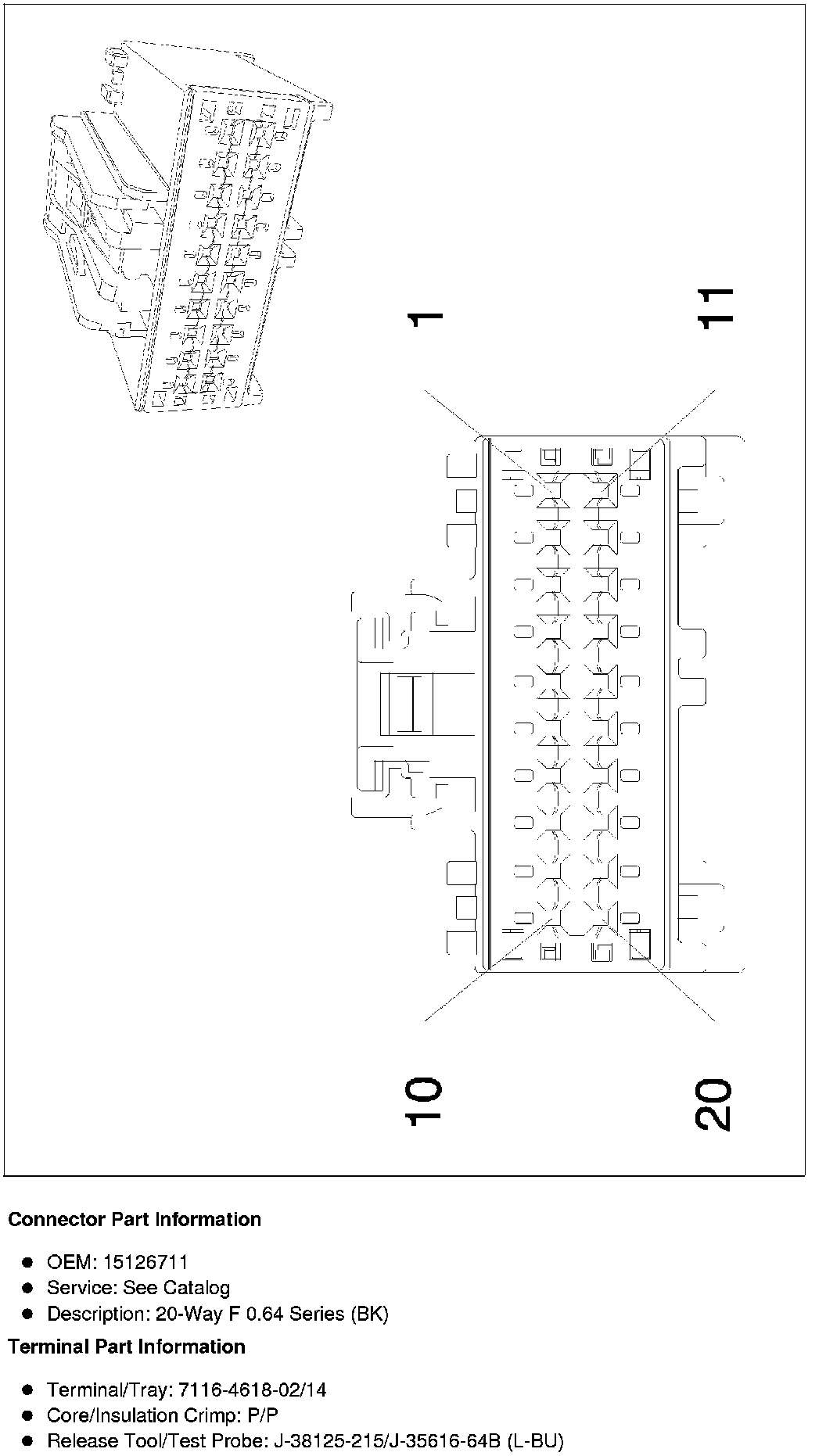

Instrument Panel Cluster (IPC)
