X116
X116

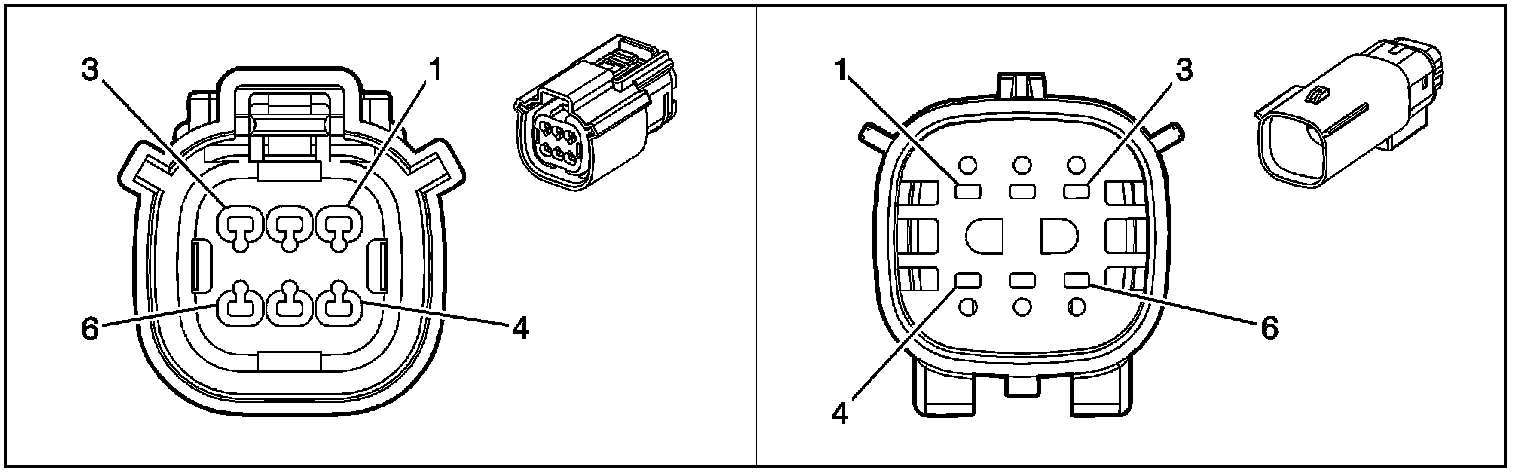

Inline Harness Connector End Views

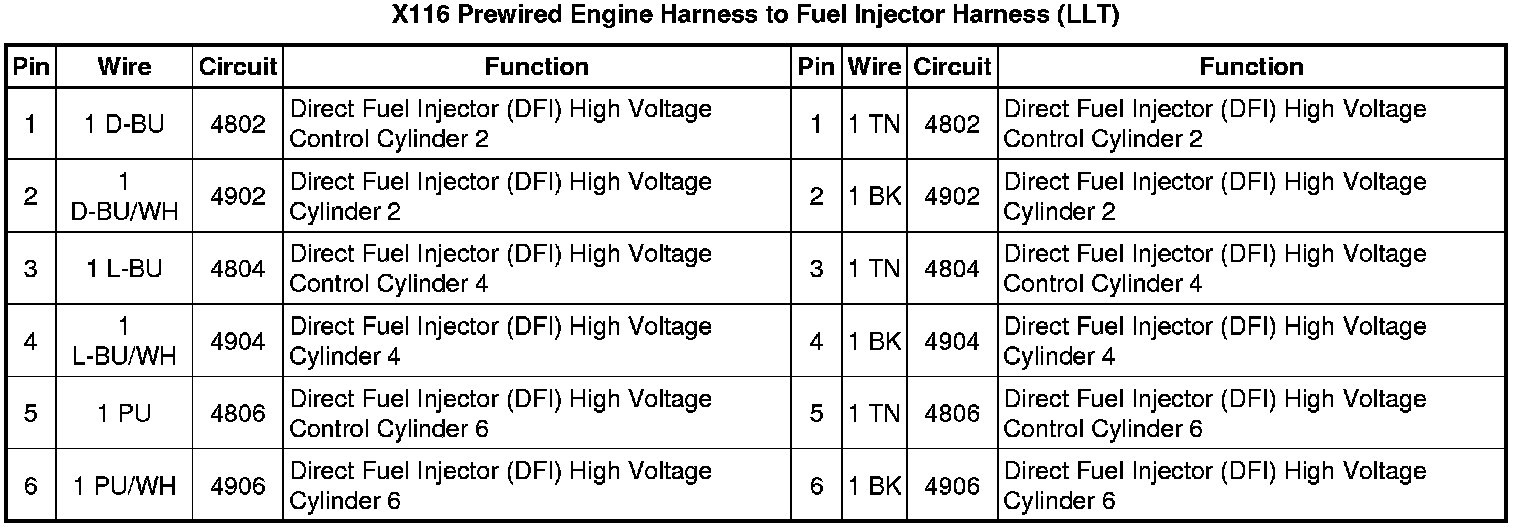

X116 Prewired Engine Harness to Fuel Injector Harness (LLT)
