Quarter Lower Rear Trim Panel Replacement (without TB4)

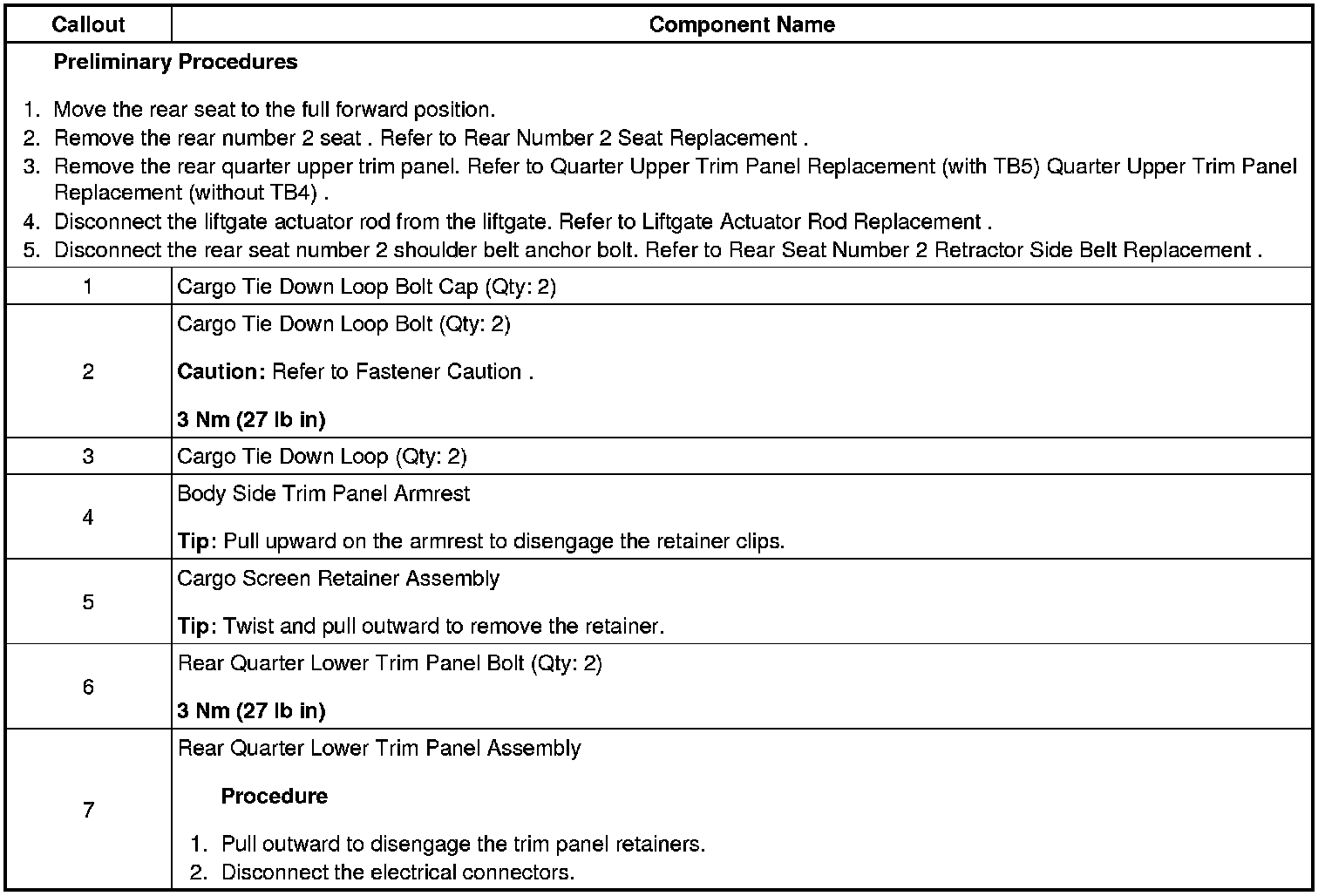

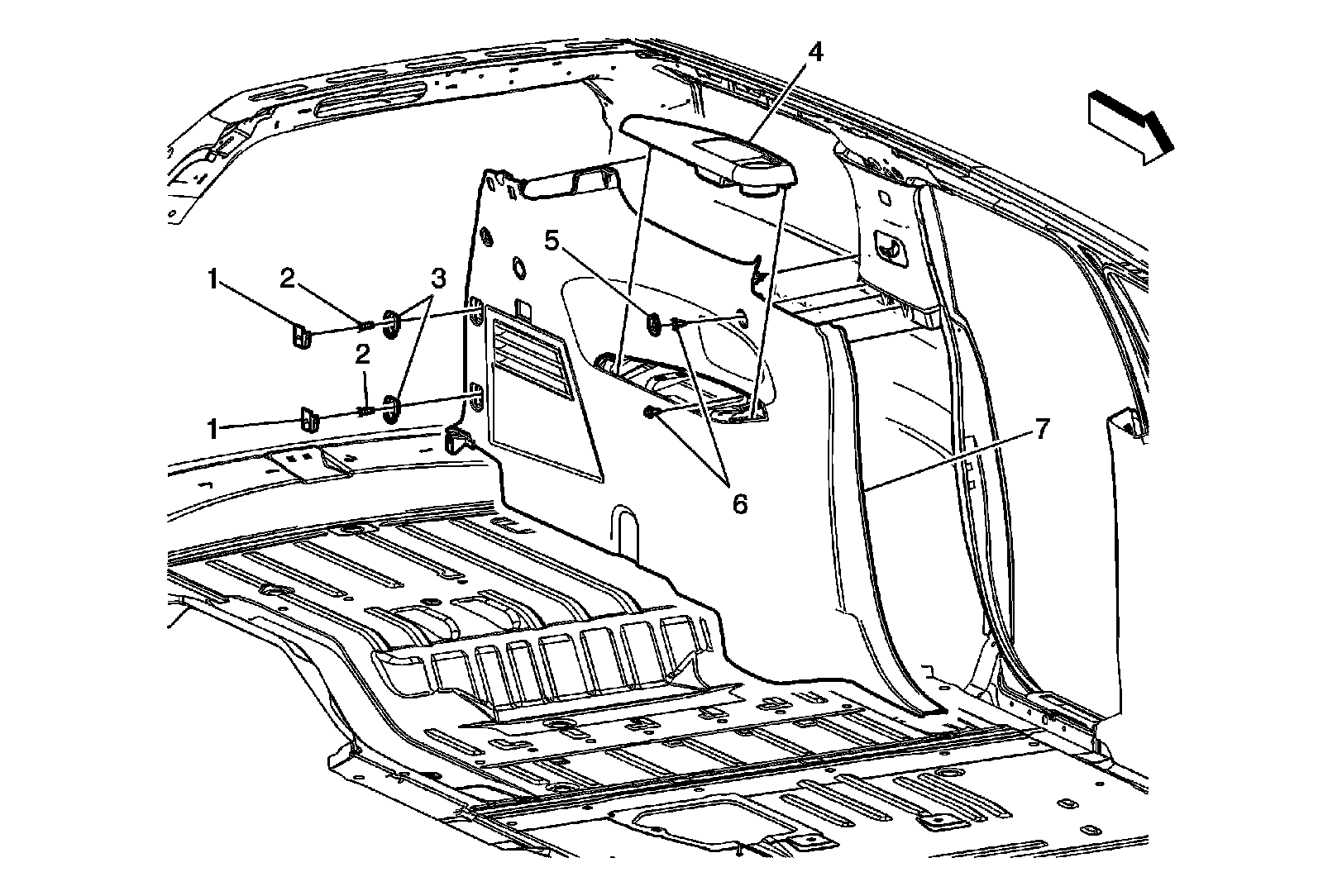

Quarter Lower Rear Trim Panel Replacement (Traverse without TB4)
