Case Bushing




Case Bushing

Special Tools
* J 8092 - Driver Handle
* J 34196-B - Transmission Bushing Service Set

Removal Procedure

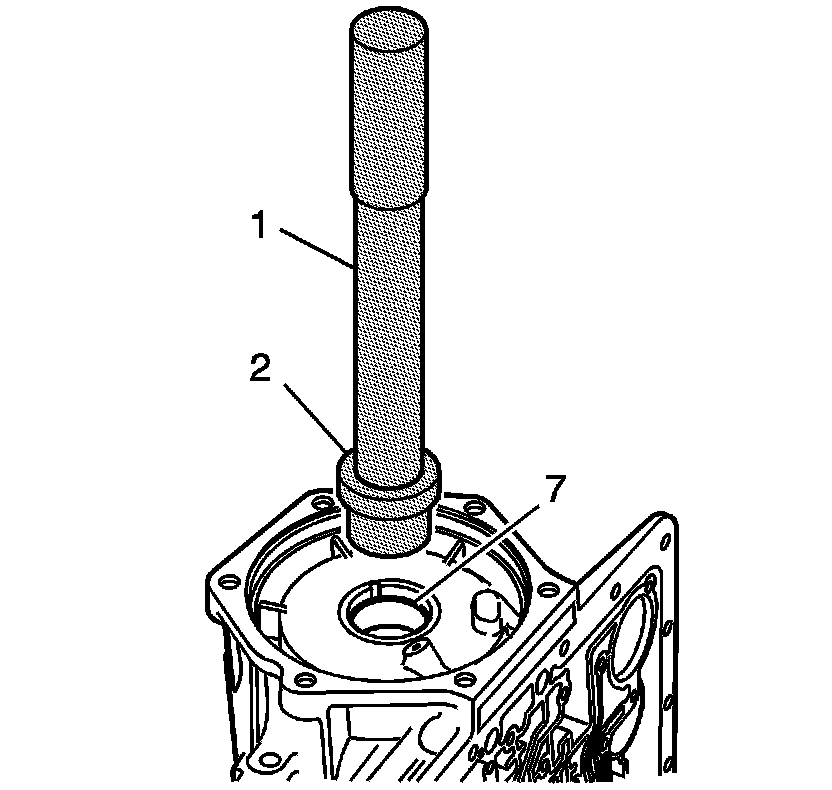

Remove the case bushing (7) using J 8092 - driver handle (1) and J 34196-10 (2) which is part of kit J 34196-B - bushing service set.

Installation Procedure





Install a case bushing (7) using J 8092 - driver handle (1) and J 34196-10 (2) which is part of kit J 34196-B - bushing service set.
