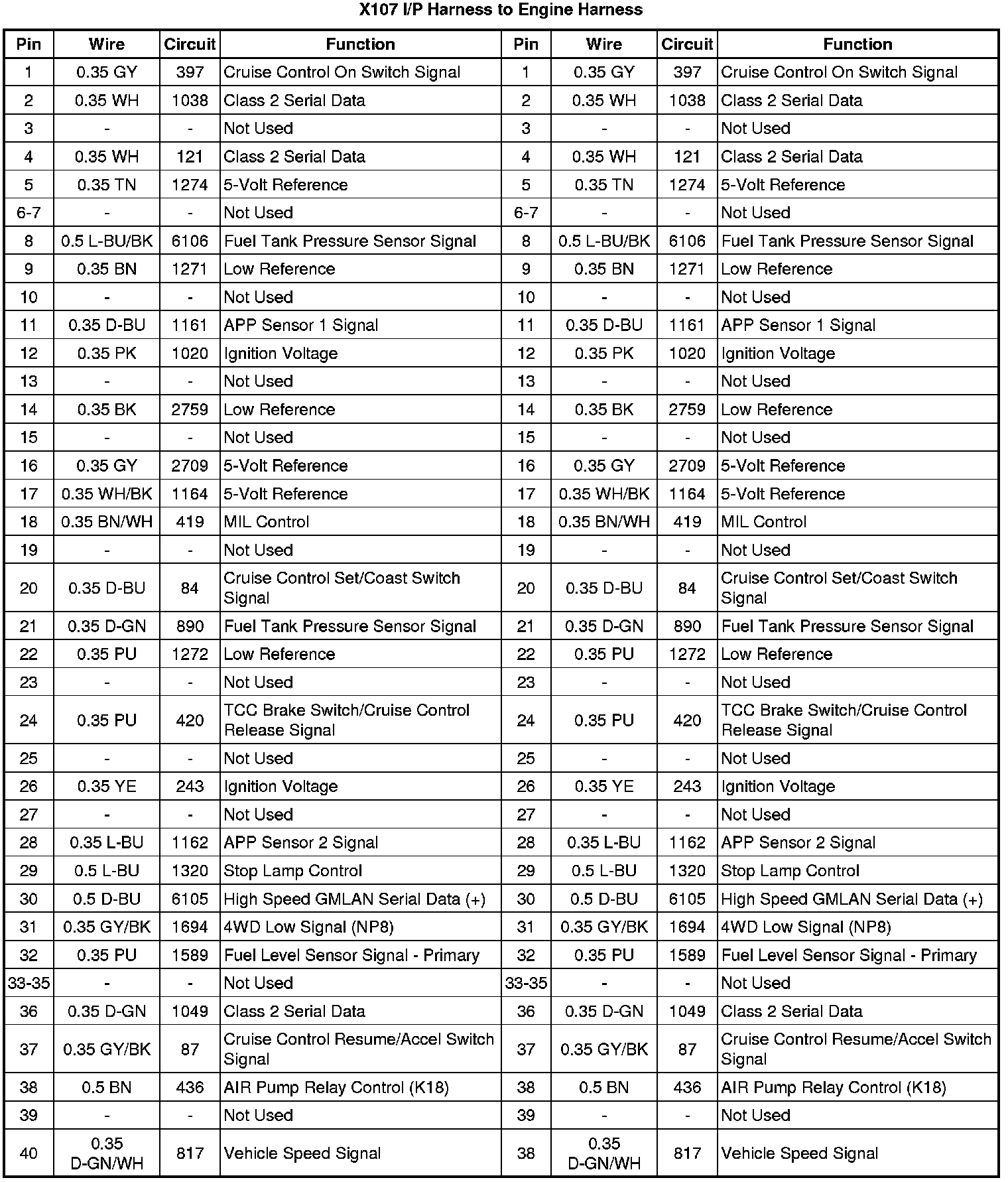

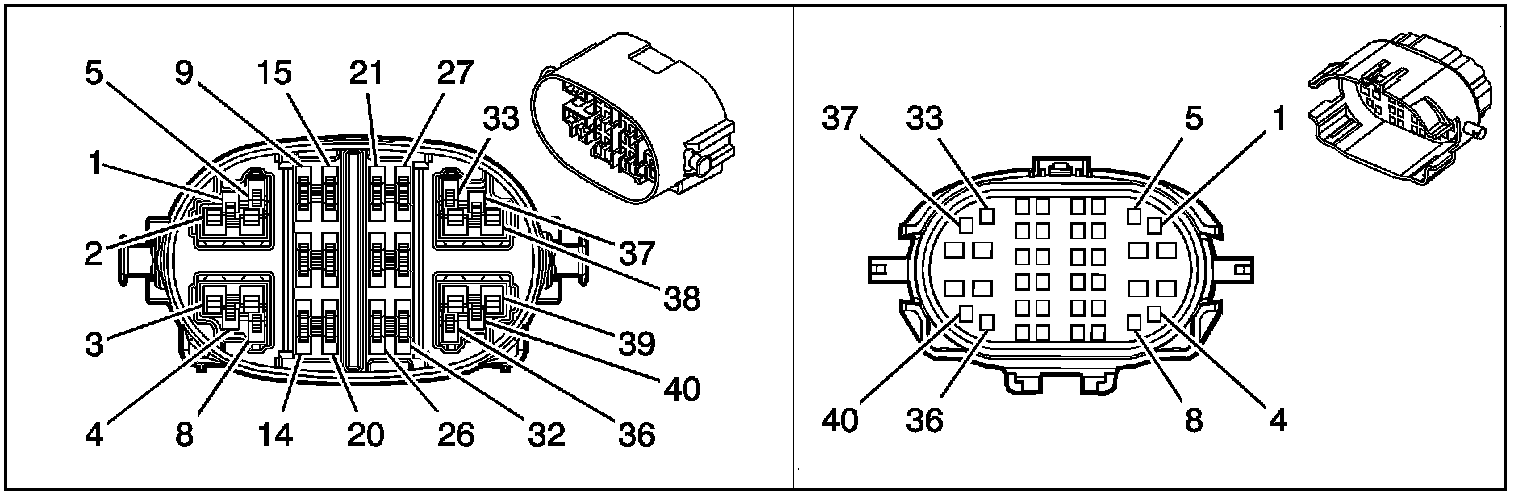

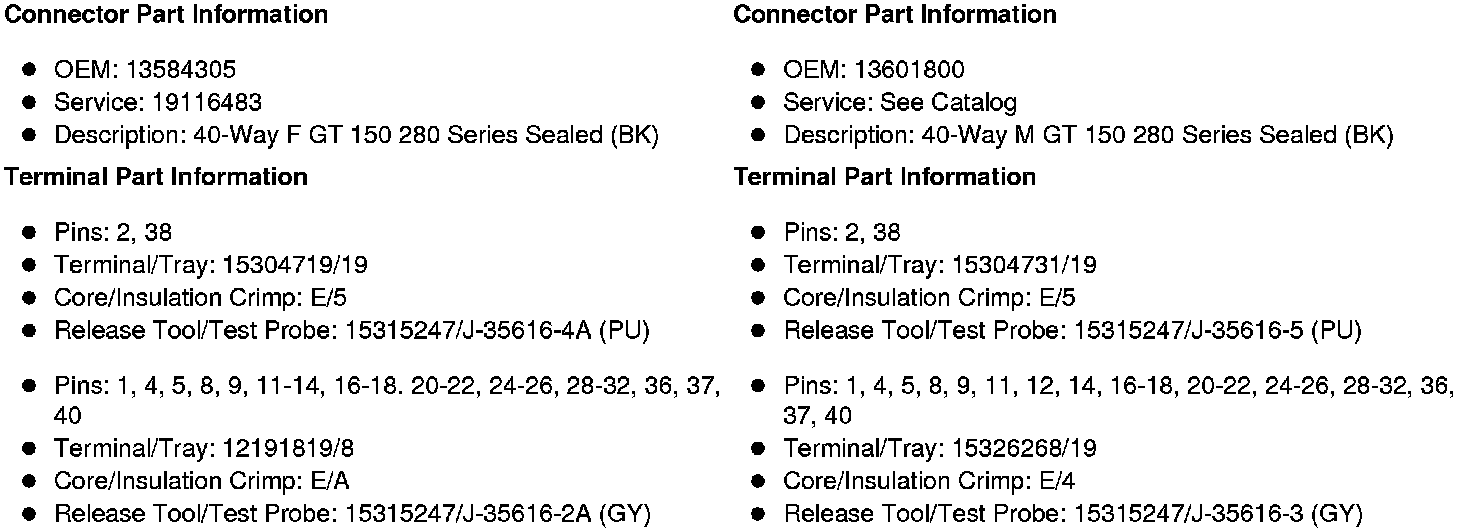

Home >> Chevrolet >> 2009 >> TrailBlazer 2WD L6-4.2L >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Multiple Junction Connector >> Diagrams >> X100 - X199 >> X107
