Air Bag: Diagrams




Component Connector End Views

Inflatable Restraint I/P Module






Inflatable Restraint Roof Rail Module - Driver (ASF)






Inflatable Restraint Roof Rail Module - Passenger (ASF)

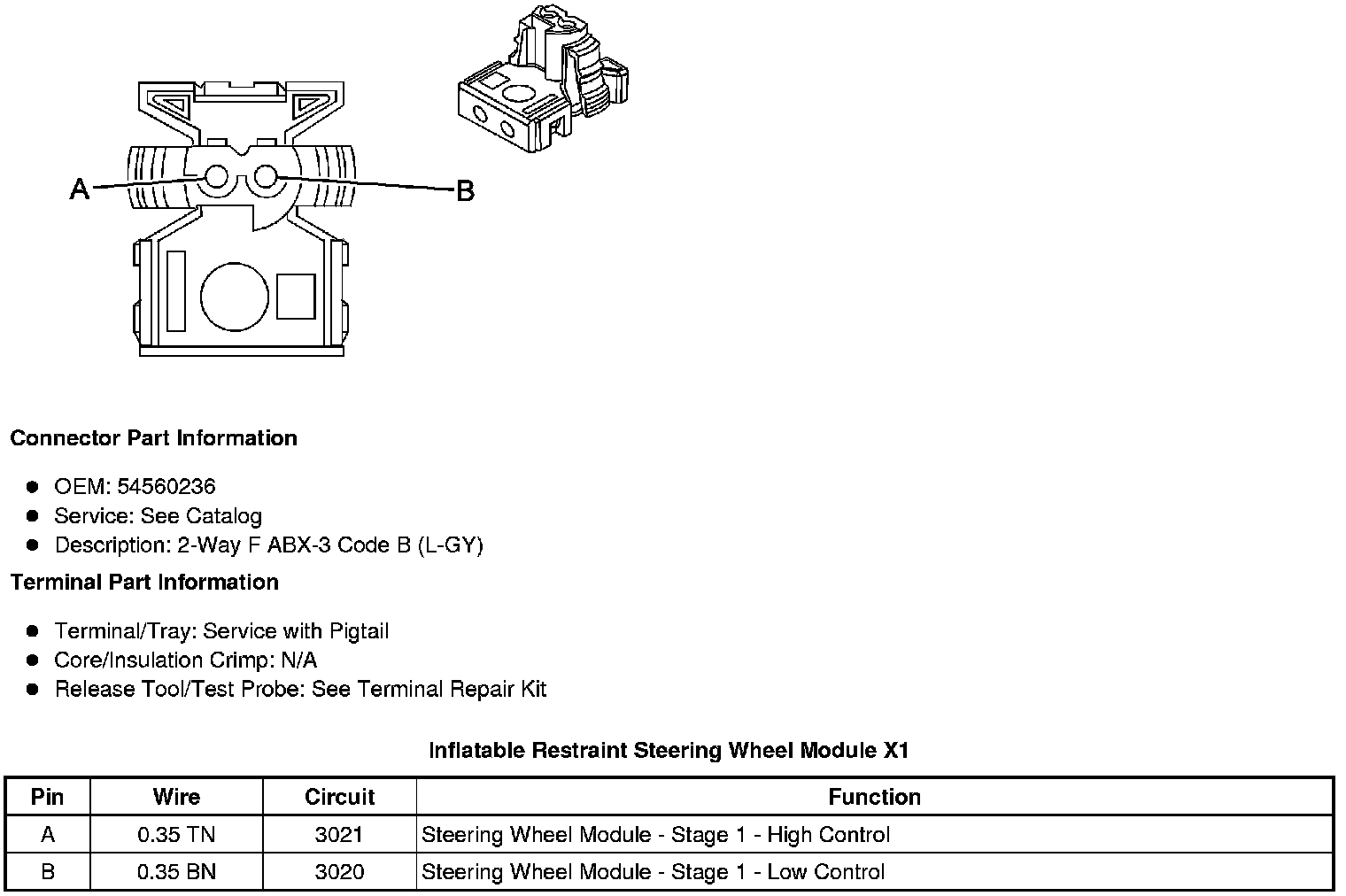

Inflatable Restraint Steering Wheel Module X1

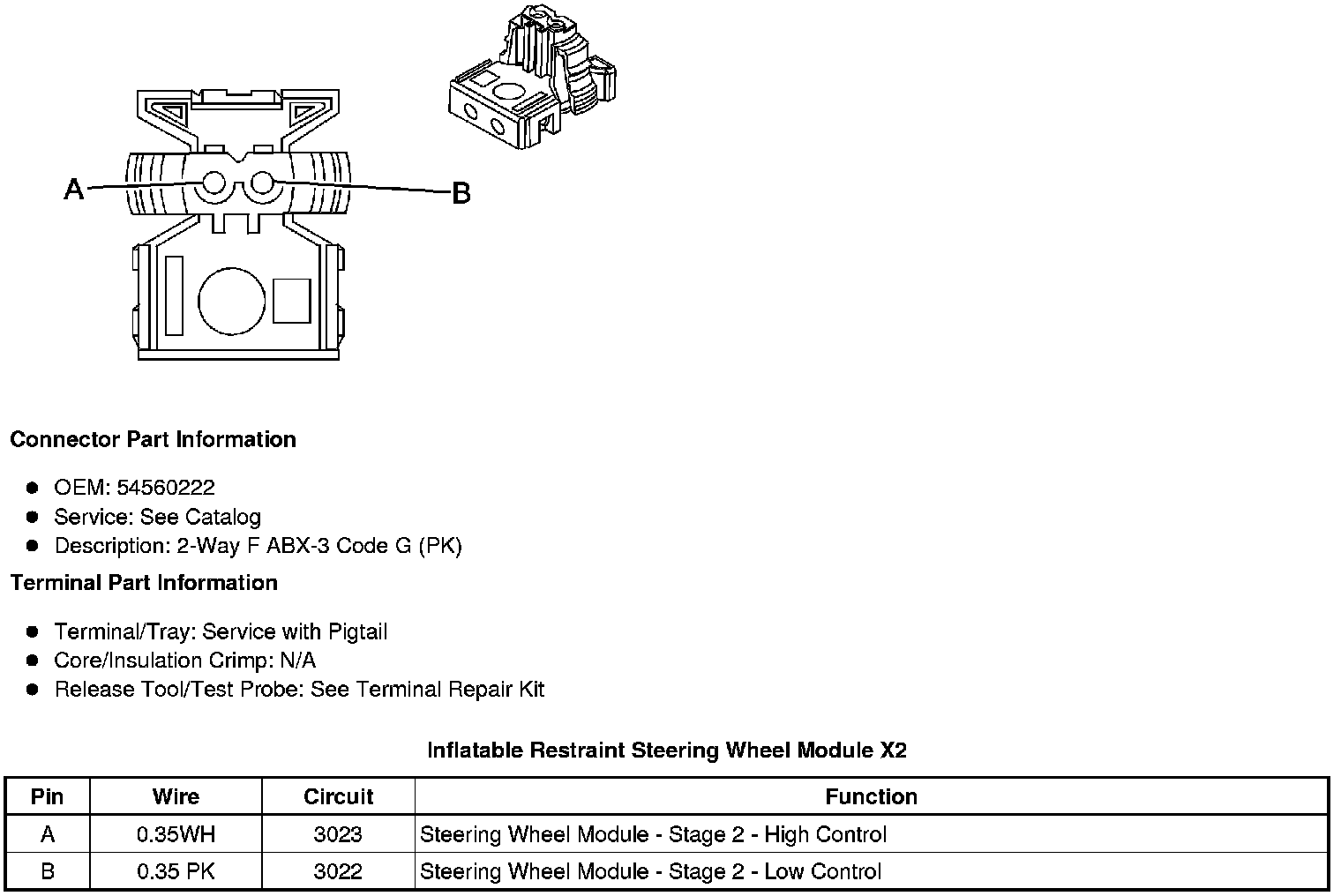

Inflatable Restraint Steering Wheel Module X2
