Pedal Positioning Relay: Diagrams

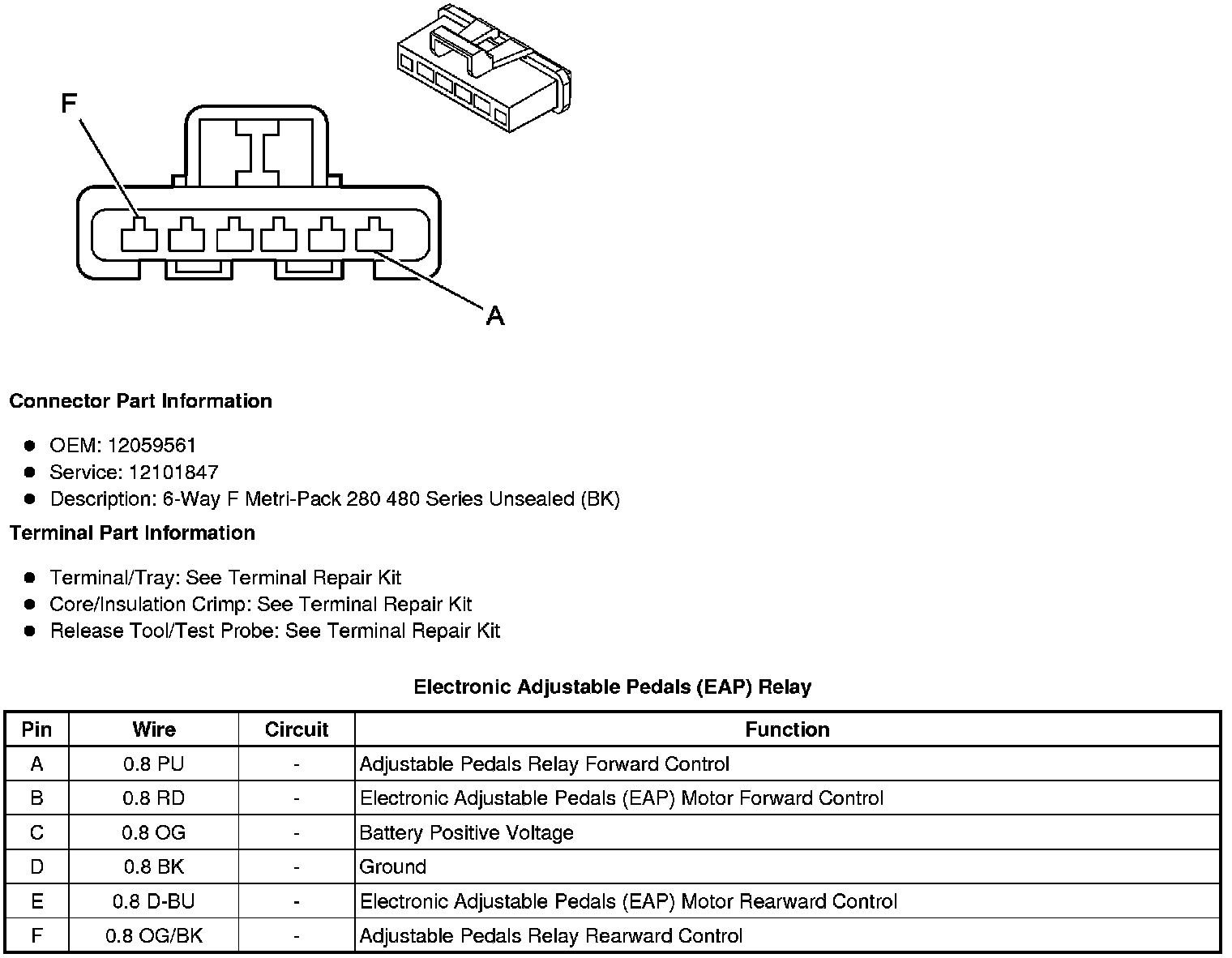

Component Connector End Views

Electronic Adjustable Pedals (EAP) Relay
