Seat Belt Pretensioner Harness Routing - Left




Harness Routing Views

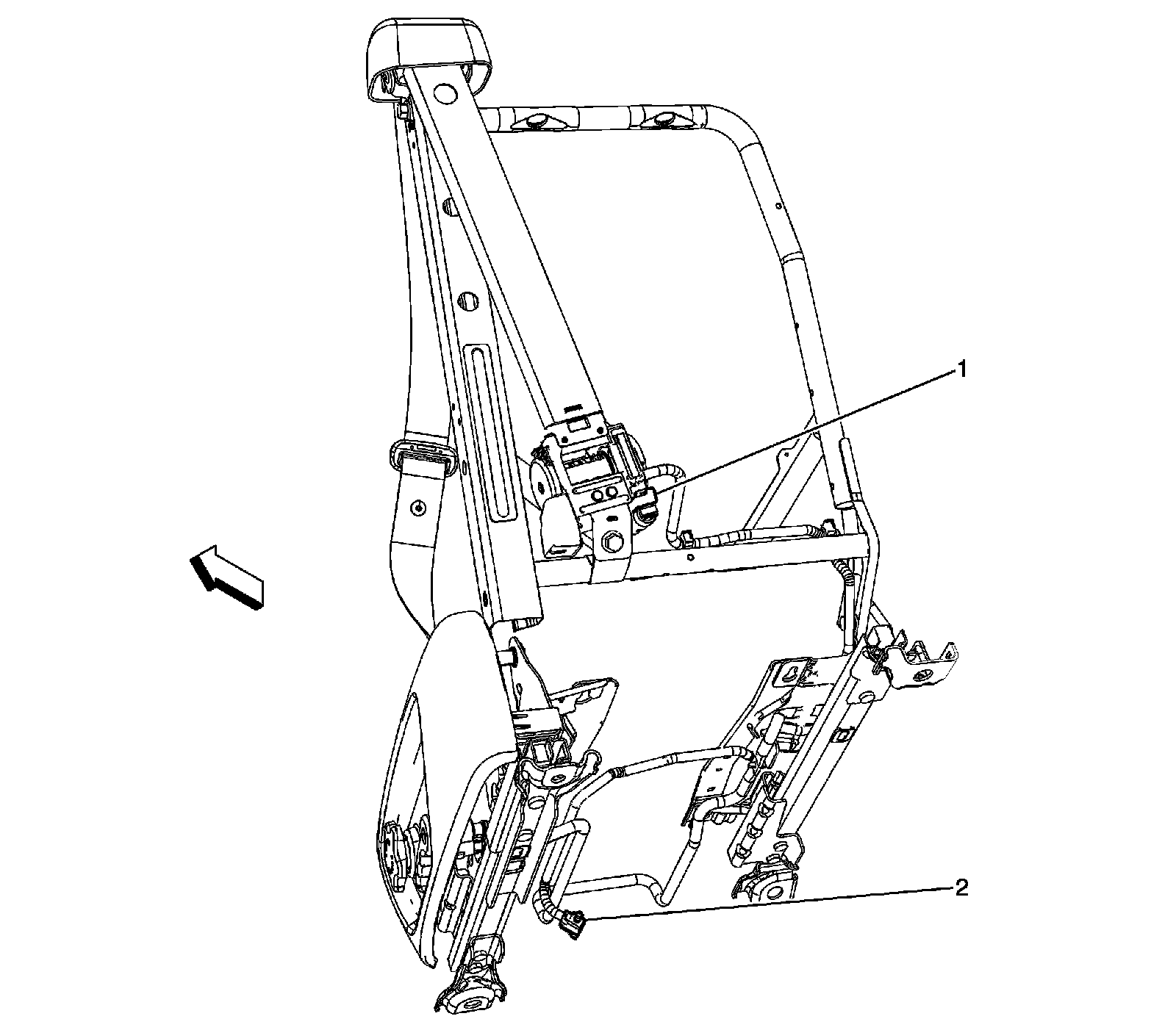

Seat Belt Pretensioner Harness Routing - Left




1 - Seat Belt Pretensioner - Left
2 - X317
