Right Rear Door Harness Routing

Harness Routing Views

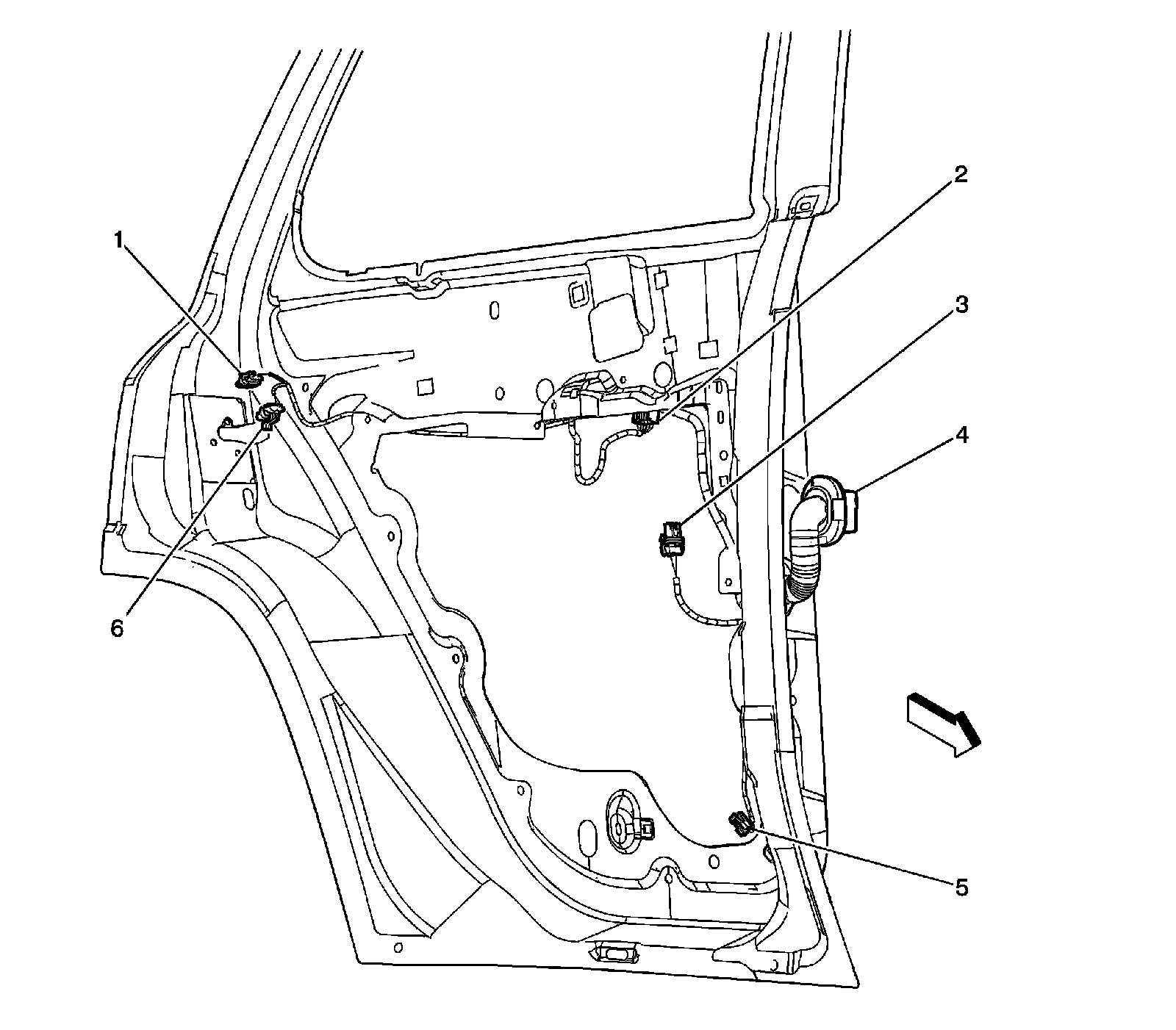

Right Rear Door Harness Routing




1 - Door Latch Assembly - RR X1
2 - Window Switch - RR
3 - Window Motor - RR
4 - X800
5 - Speaker - RR Door
6 - Door Latch Assembly - RR X2
