Door Component Views




Door Component Views

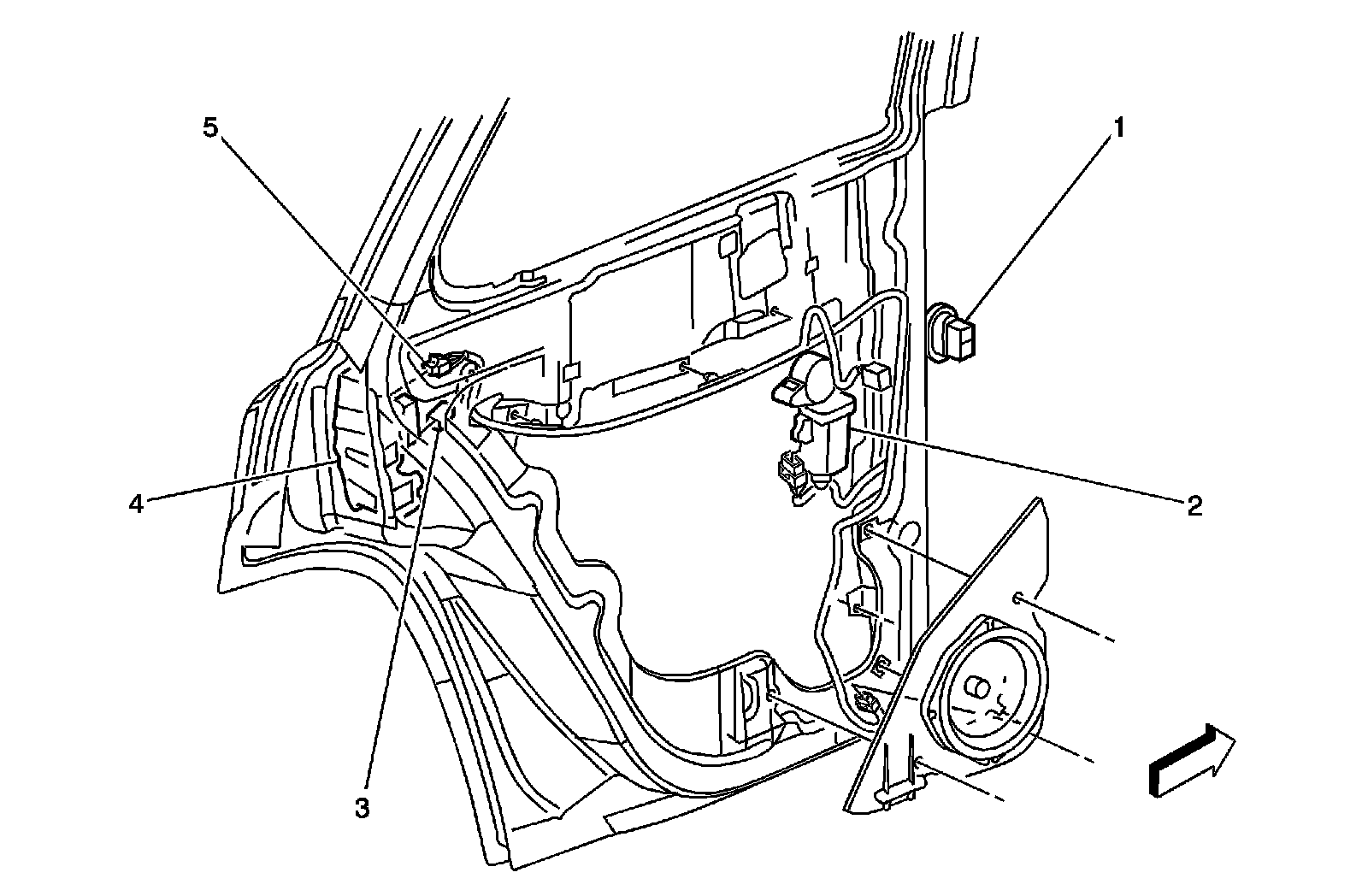

Left Rear Door Components




1 - X700
2 - Window Motor - Left Rear
3 - Door Latch Assembly - Left Rear X2
4 - Door Latch Assembly - Left Rear
5 - Door Latch Assembly - Left Rear X1
