Turn Signal Lamp: Diagrams




Component Connector End Views

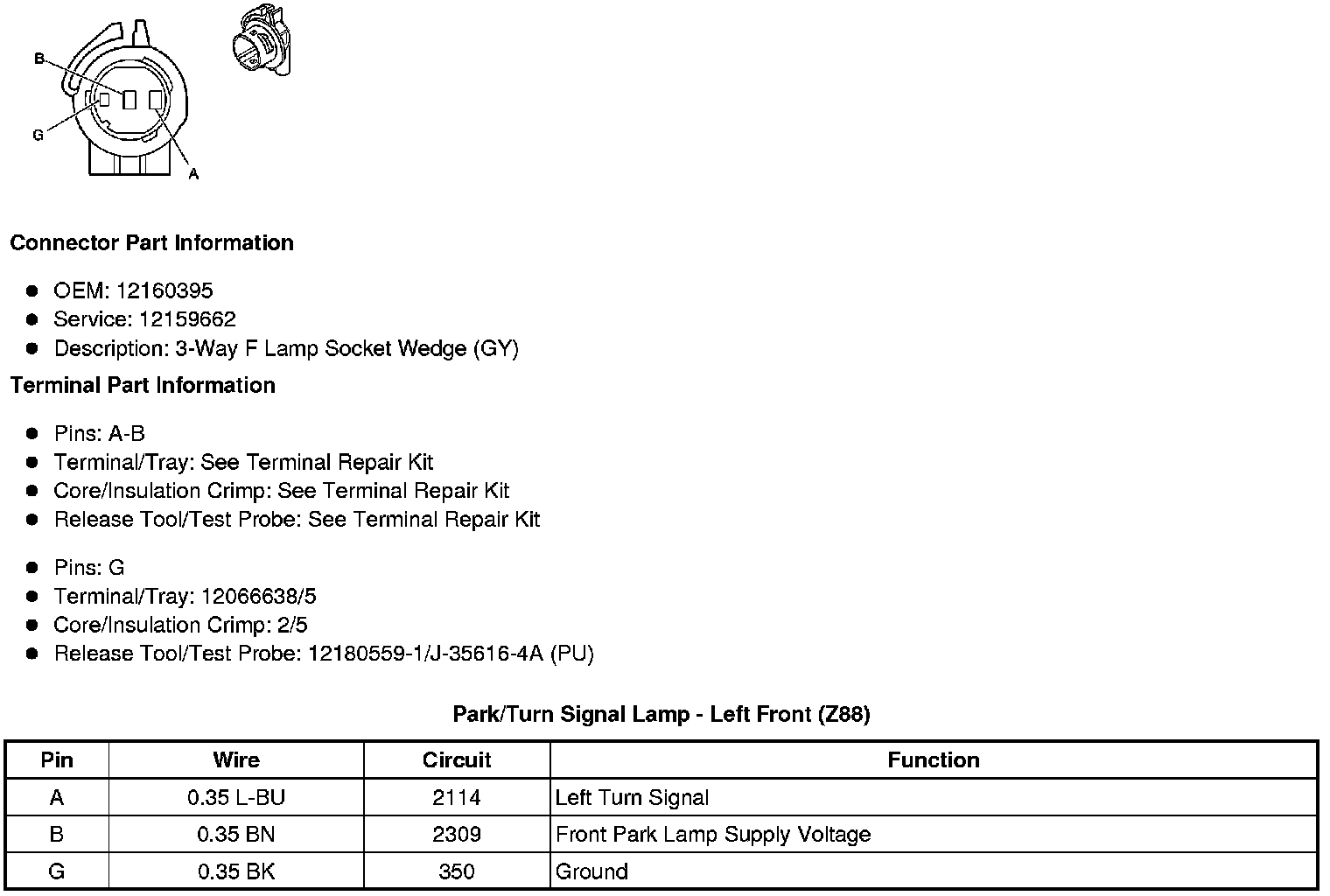

Park/Turn Signal Lamp - Left Front (X88)






Park/Turn Signal Lamp - Left Front (Z88)

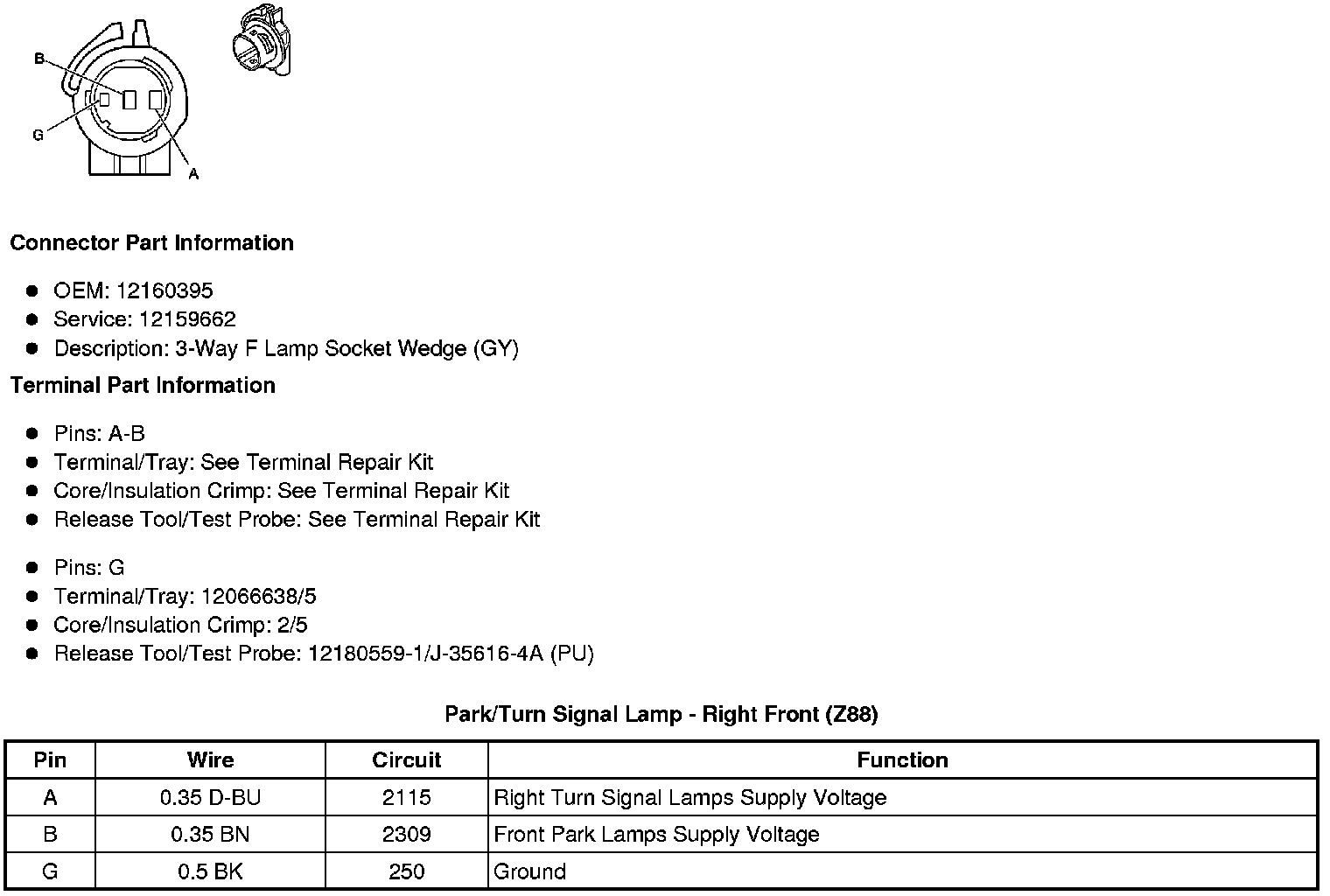

Park/Turn Signal Lamp - Right Front (X88)






Park/Turn Signal Lamp - Right Front (Z88)






Turn Signal Lamp - Left Front (W49)






Turn Signal Lamp - Right Front (W49)
