Tail Lamp: Diagrams




Component Connector End Views

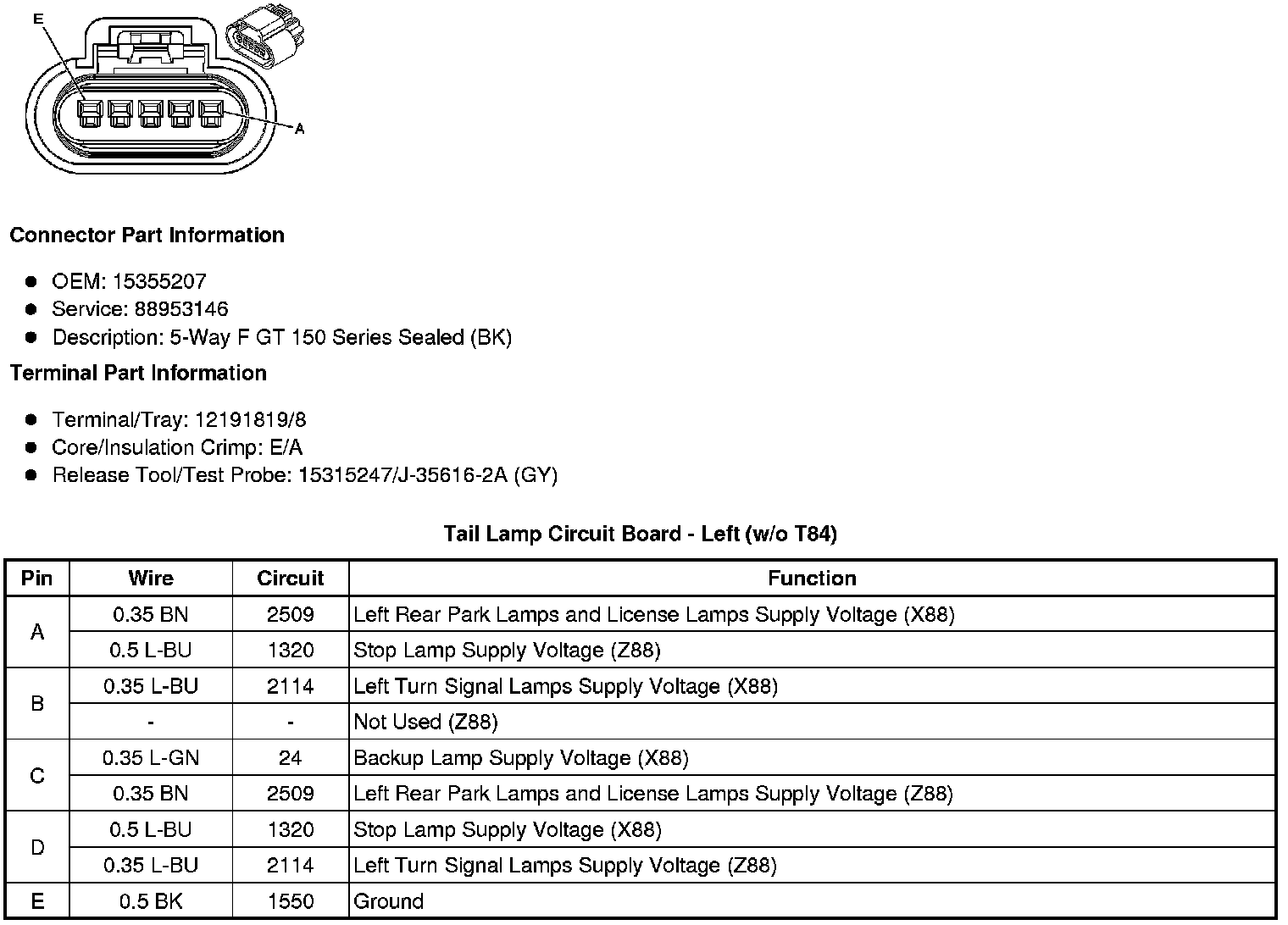

Tail Lamp Circuit Board - Left (w/o T84)

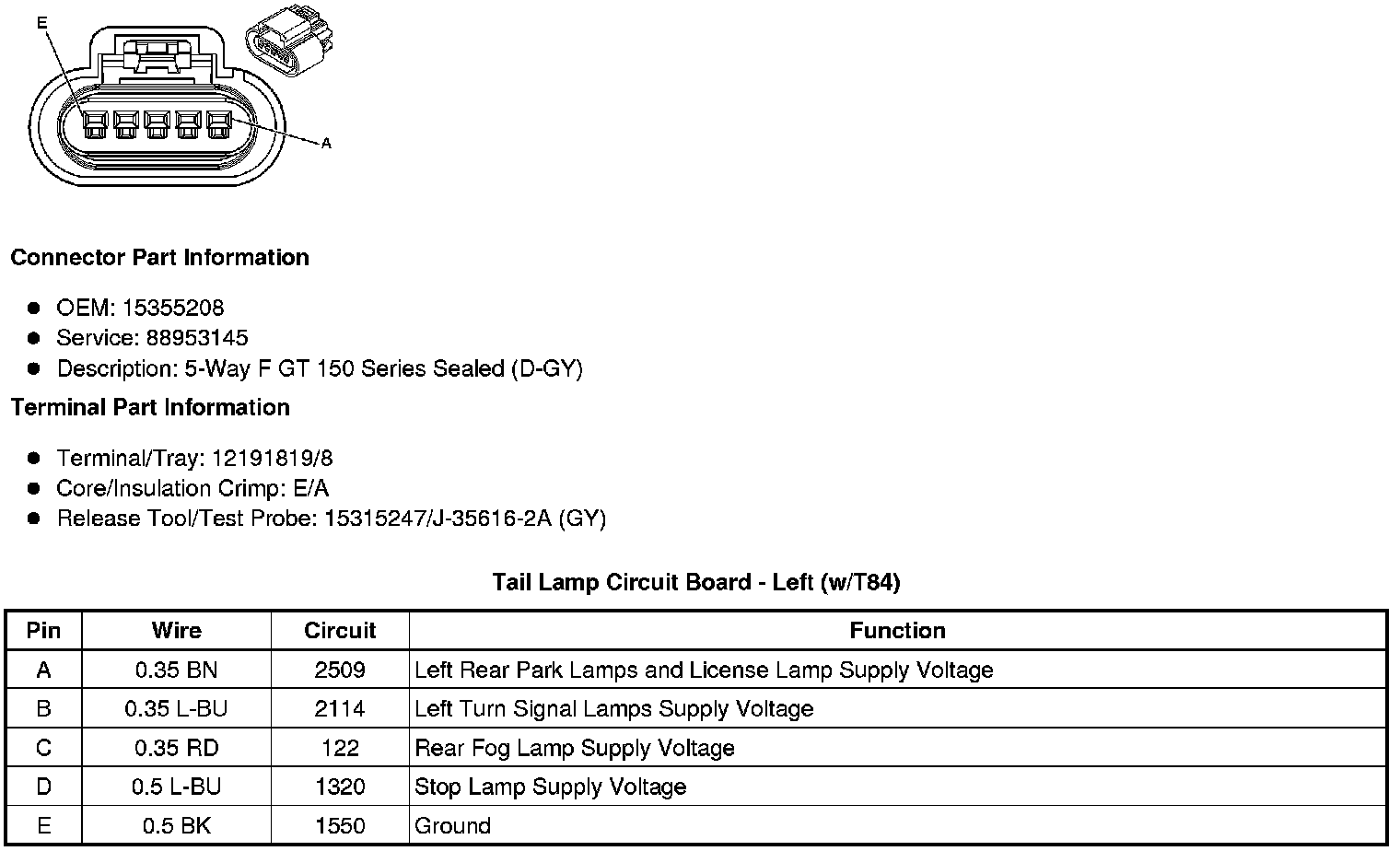

Tail Lamp Circuit Board - Left (w/T84)

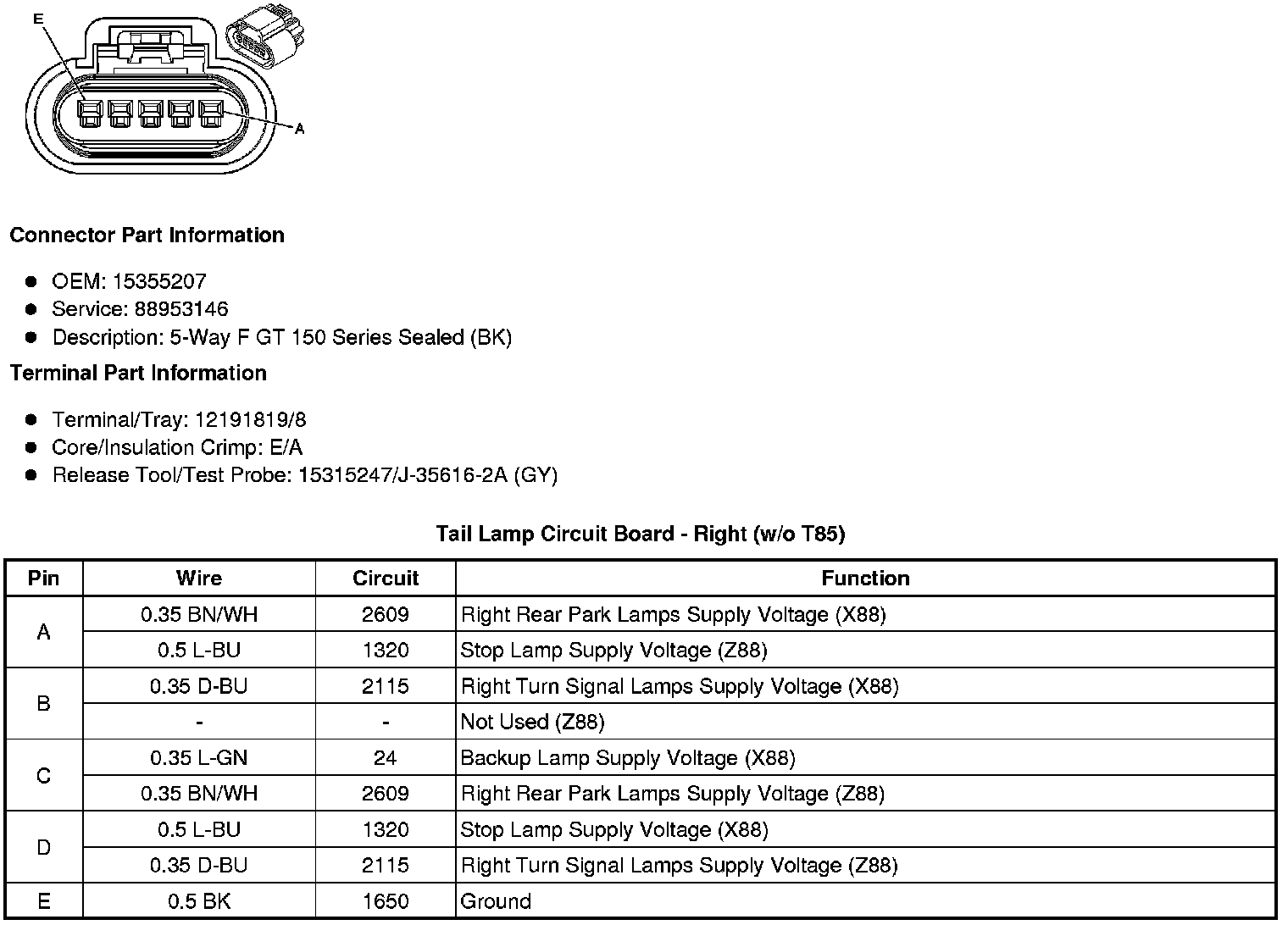

Tail Lamp Circuit Board - Right (w/o T85)






Tail Lamp Circuit Board - Right (w/T85)
