Home >> Chevrolet >> 2009 >> TrailBlazer 2WD L6-4.2L >> Repair and Diagnosis >> Lighting and Horns >> Diagrams >> Electrical Diagrams >> Interior Lights Dimming Schematics >> Interior Lights Dimming Schematic 1

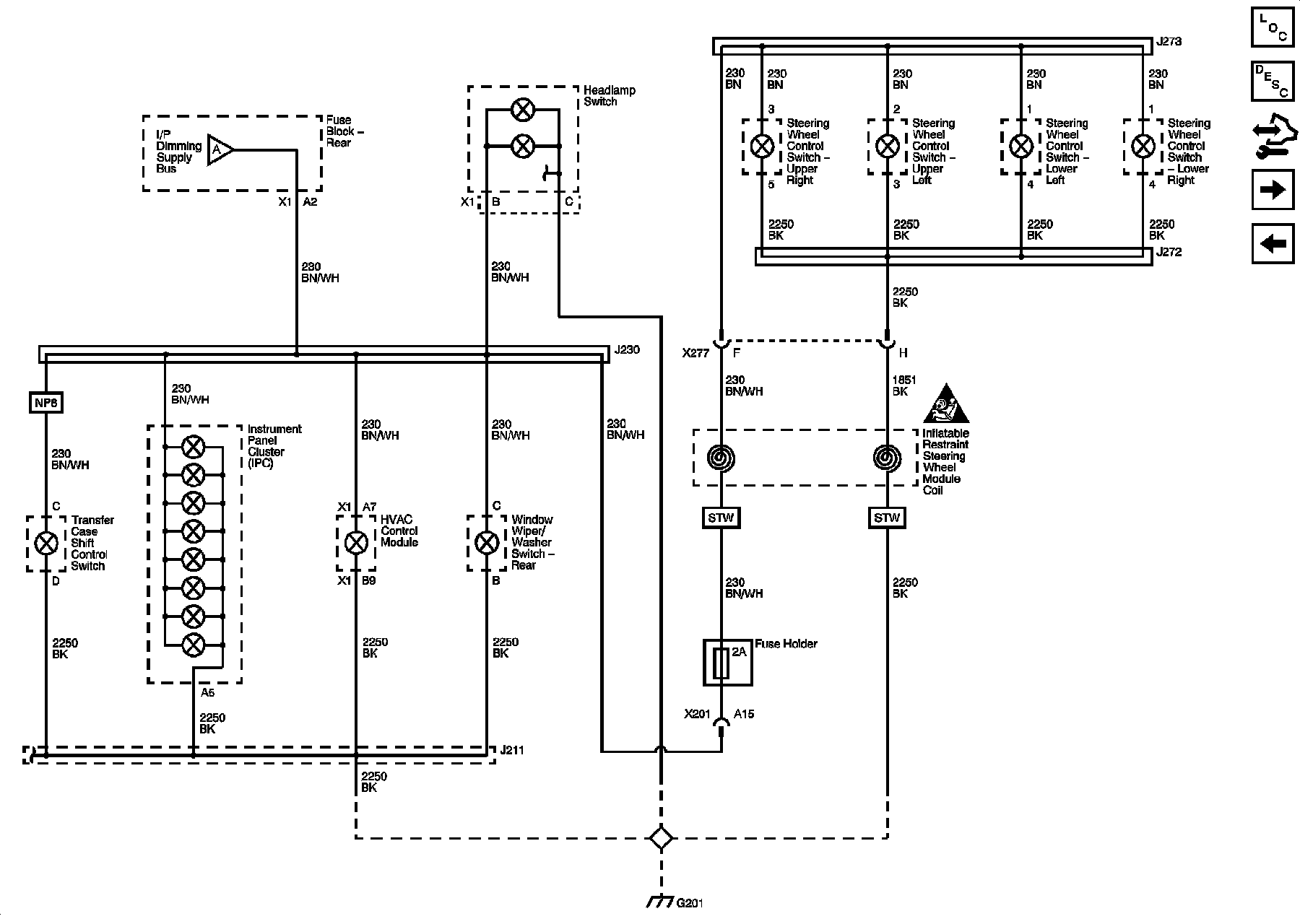

Interior Lights Dimming Schematic 1




Interior Lights Dimming Schematics

I/P Dimming Supply - 1 of 2






I/P Dimming Supply - 2 of 2
