Home >> Chevrolet >> 2009 >> TrailBlazer 2WD L6-4.2L >> Repair and Diagnosis >> Lighting and Horns >> Diagrams >> Electrical Diagrams >> Fog Lights Schematics

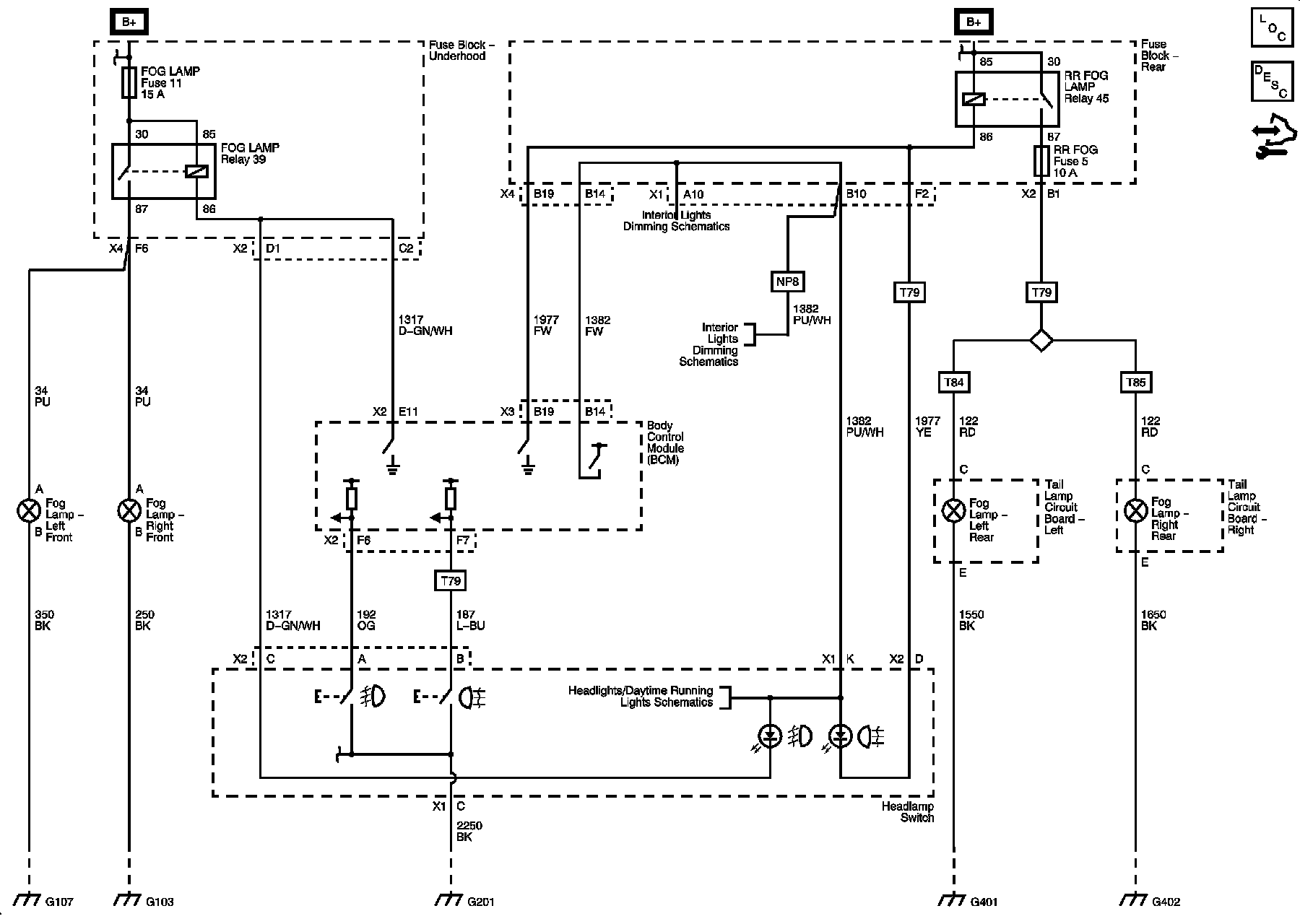

Fog Lights Schematics




Fog Lights Schematics
