Instrument Cluster Schematics




Instrument Cluster Schematics

Power, Ground, Serial Data. and MIL





Gages

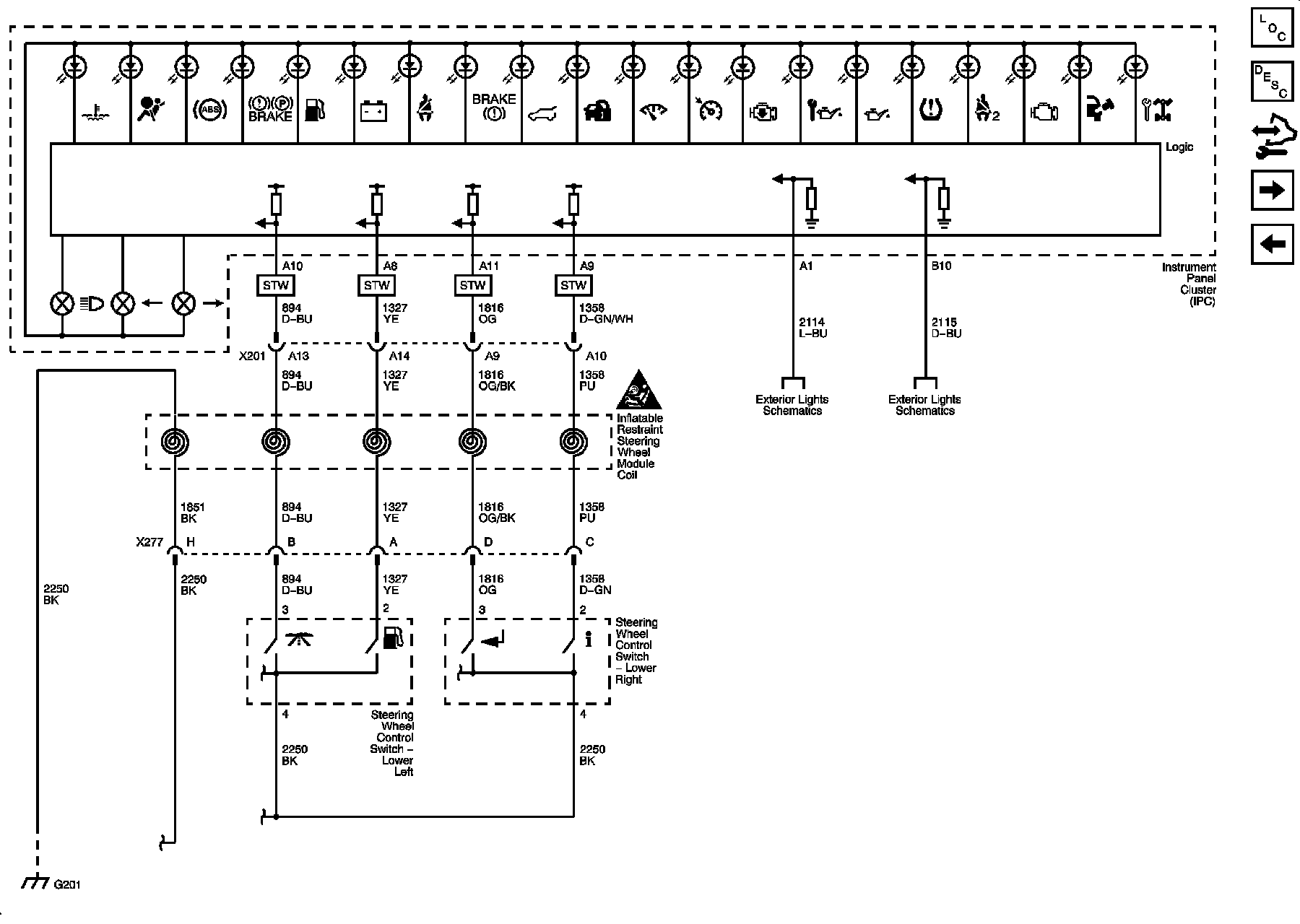

Indicators and DIC Controls





Fuel Gage
