Home >> Chevrolet >> 2009 >> TrailBlazer 2WD L6-4.2L >> Repair and Diagnosis >> Heating and Air Conditioning >> Blower Motor Resistor >> Diagrams

Blower Motor Resistor: Diagrams




Component Connector End Views

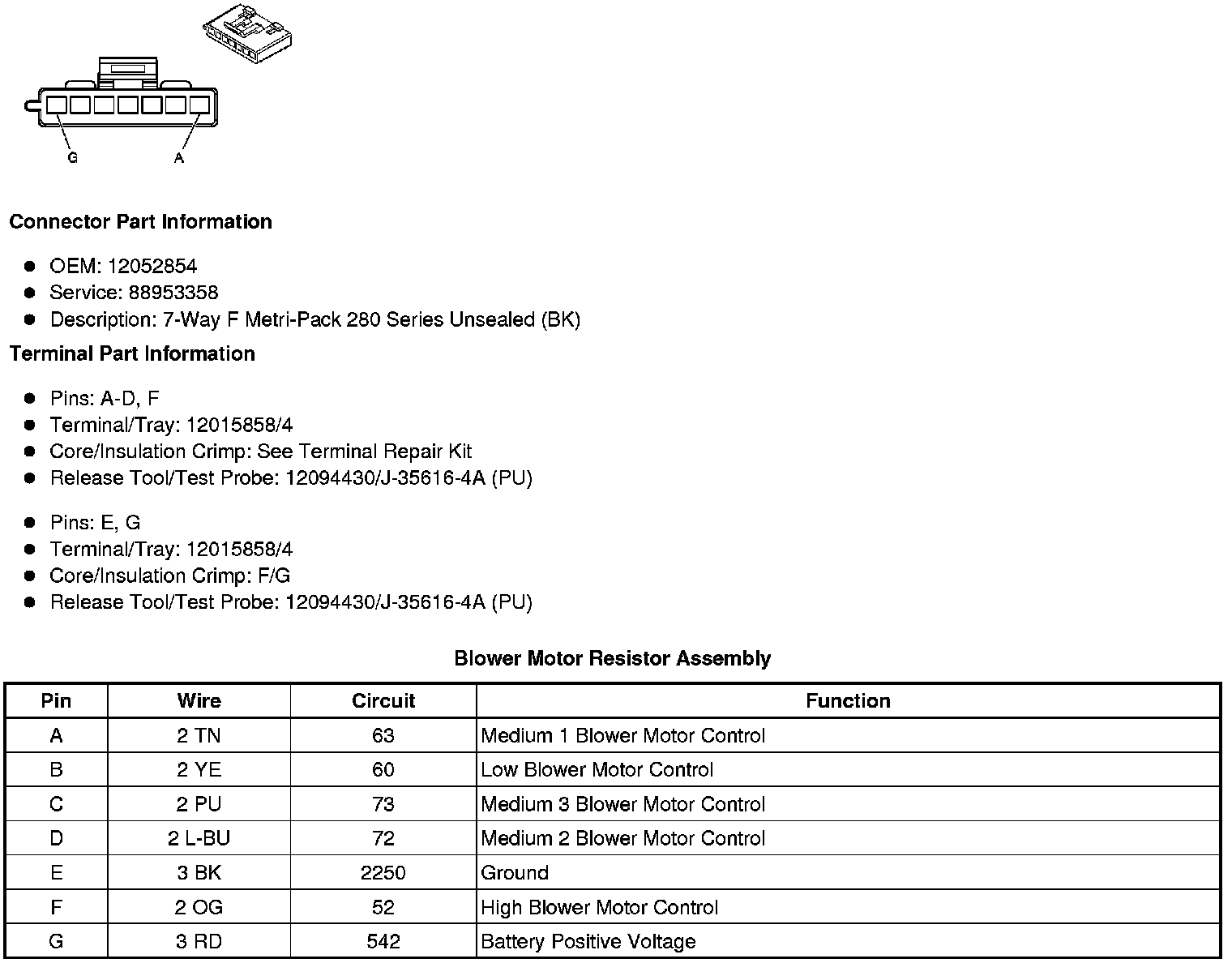

Blower Motor Resistor Assembly






Rear Blower Resistor (CJ2)
