Exhaust System Insulator, Hanger, Bracket Replacement

Exhaust System Insulator, Hanger, Bracket Replacement (LL8) (4.2L)

Removal Procedure




1. Remove the transmission mount. Refer to Transmission Mount Replacement (4.2L) (Removal and Replacement)Transmission Mount Replacement (5.3L) (Removal and Replacement).

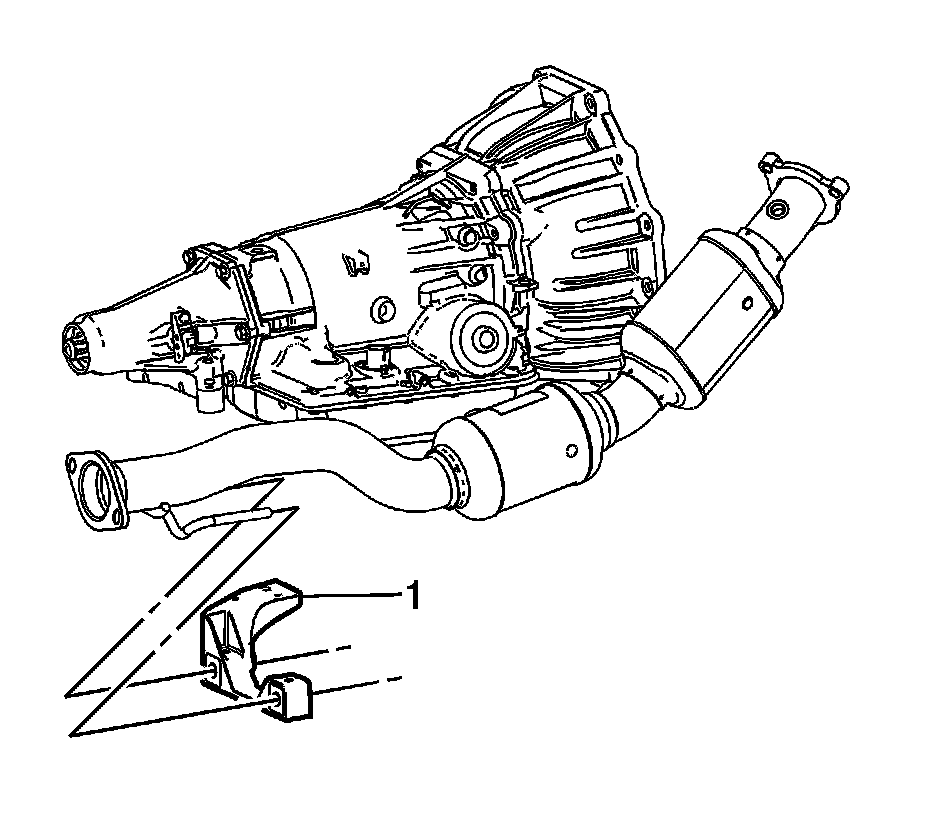

2. If equipped with 2 wheel drive (2WD), slide the catalytic converter hanger (1) towards the front of the vehicle and remove the hanger.

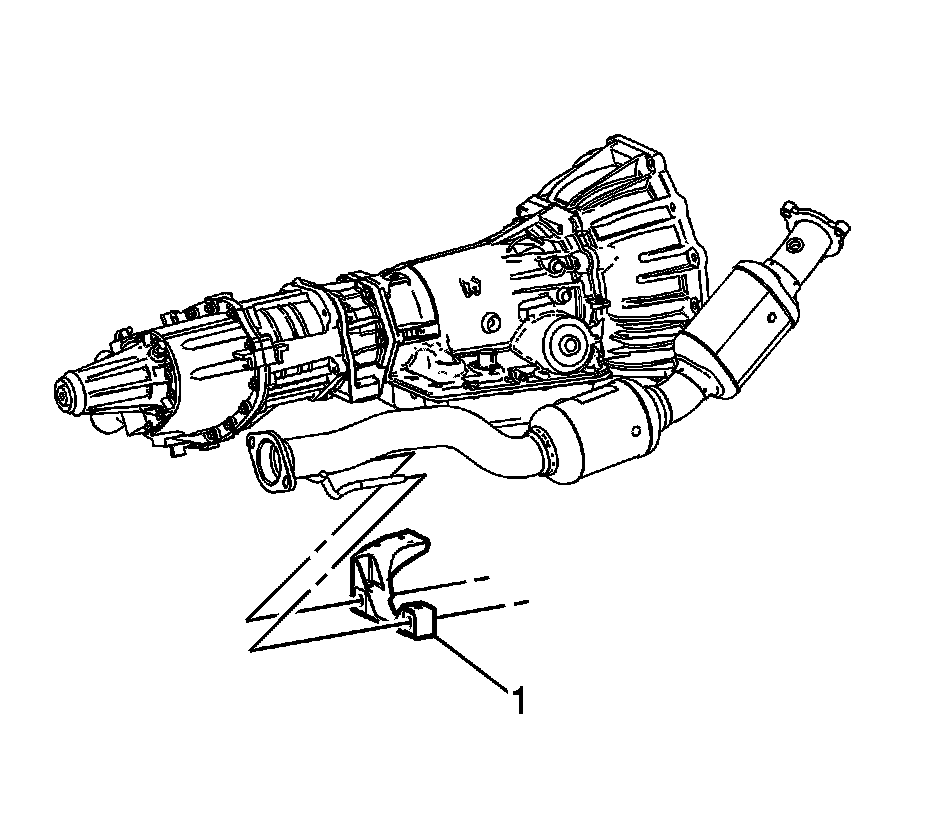

3. If equipped with 4 wheel drive (4WD), slide the catalytic converter hanger (1) towards the front of the vehicle and remove the hanger.

Installation Procedure




1. If equipped with 4WD, position the hanger and slide the catalytic converter hanger (1) towards the rear of the vehicle.




2. If equipped with 2WD, position the hanger and slide the catalytic converter hanger (1) towards the rear of the vehicle.
3. Install the transmission mount. Refer to Transmission Mount Replacement (4.2L) (Removal and Replacement)Transmission Mount Replacement (5.3L) (Removal and Replacement).
