93. Crankshaft Rear Oil Seal Installation




Crankshaft Rear Oil Seal Installation

Tools Required

J 44227 Rear Seal Installer




1. Use the plastic installation sleeve supplied with the new seal when installing a new seal.

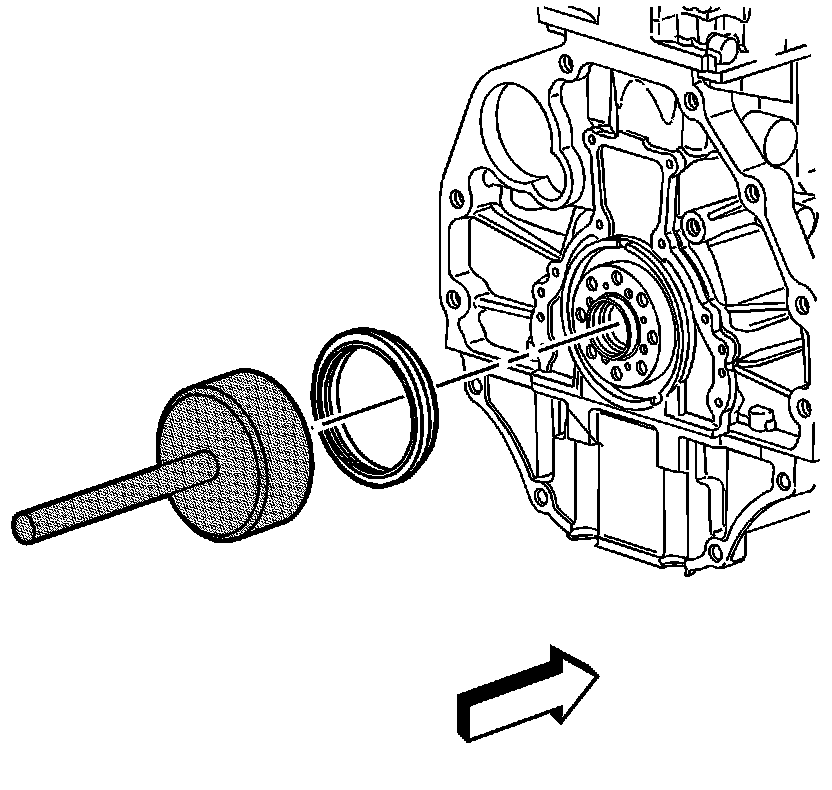

Use J 44227 to install the crankshaft rear oil seal.
2. Remove J 44227 .
