85. Heater Outlet Hose Fitting Installation

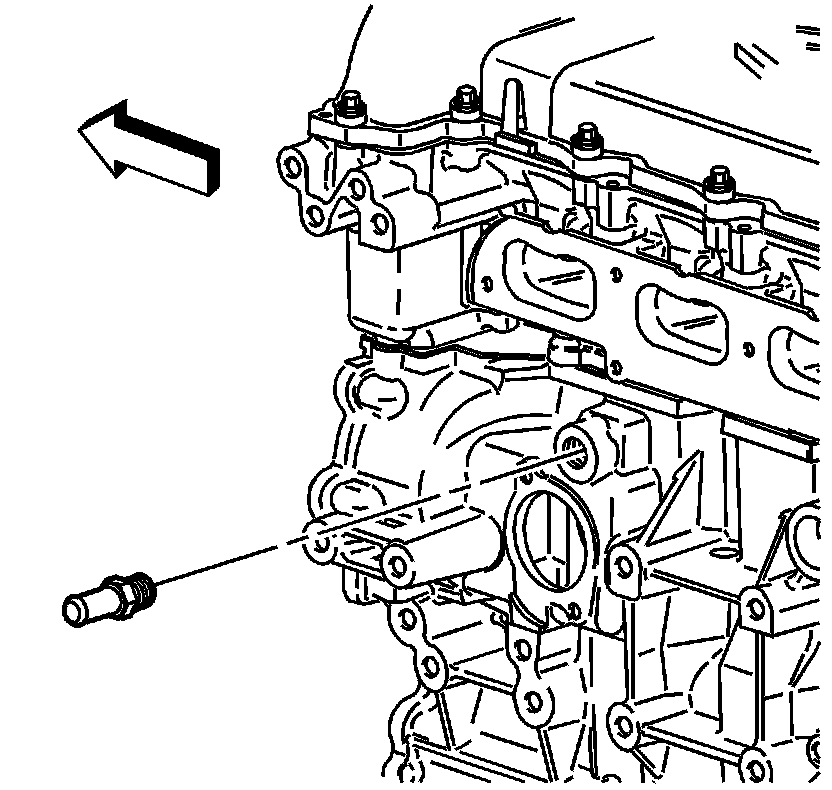

Heater Outlet Hose Fitting Installation




1. Apply sealant GM P/N 12346004 (Canadian P/N 10953480) or equivalent to the heater outlet hose fitting threads.

Caution: Refer to Fastener Caution (Fastener Caution).

2. Install the heater outlet hose fitting. Tighten the heater outlet hose fitting to 45 Nm (33 lb ft).
