81. Fuel Rail and Injectors Installation

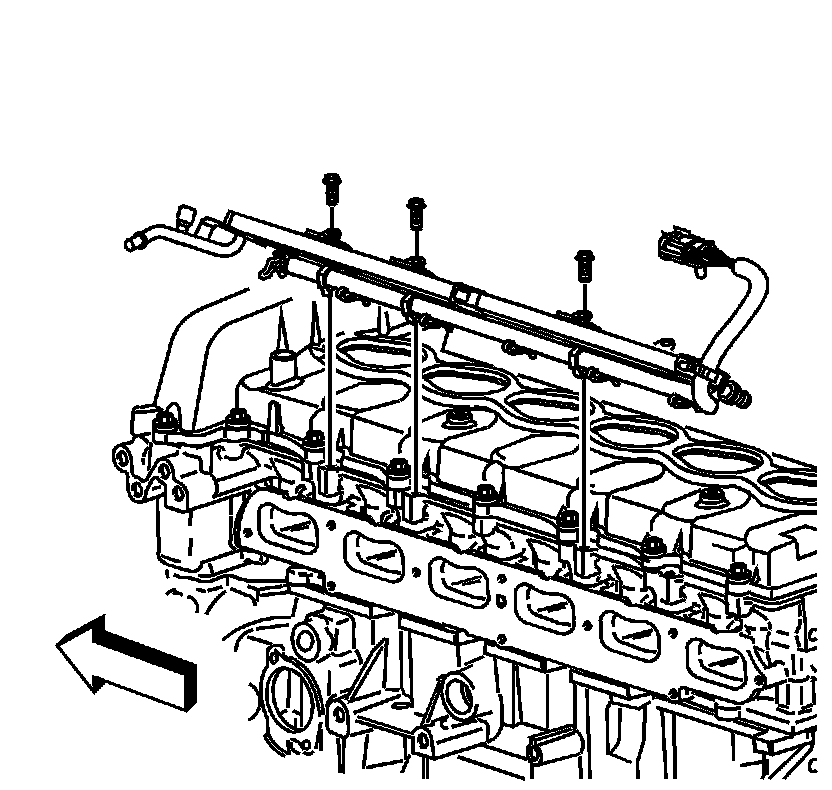

Fuel Rail and Injectors Installation




1. Lubricate the lower injector O-rings with mineral oil GM P/N 9981704.
2. Install the fuel injector rail.

Caution: Refer to Fastener Caution (Fastener Caution).

3. Install the fuel injector rail bolts. Tighten the fuel injector rail bolts to 10 Nm (89 lb in).
