35. Engine Block Plug Removal




Engine Block Plug Removal

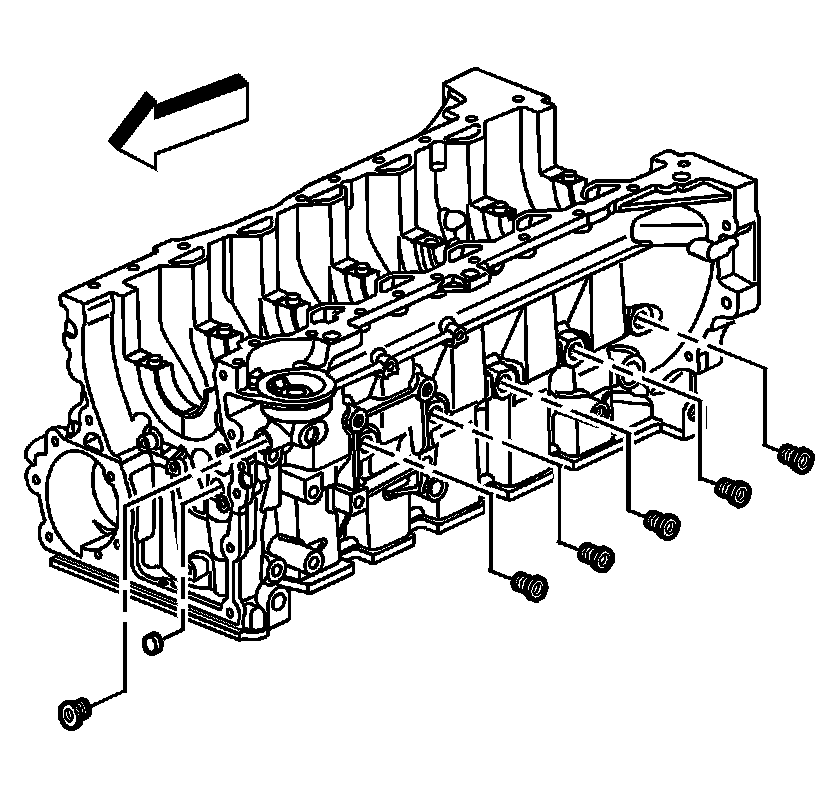

1. Remove the engine block oil gallery plugs.

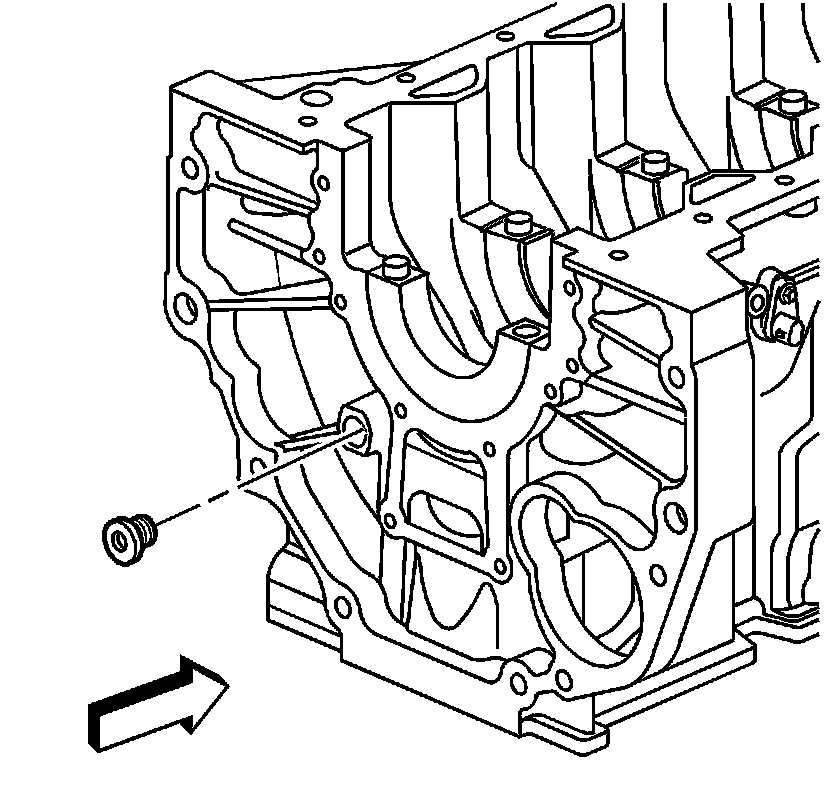

2. Remove the engine block oil gallery plug from rear of block.

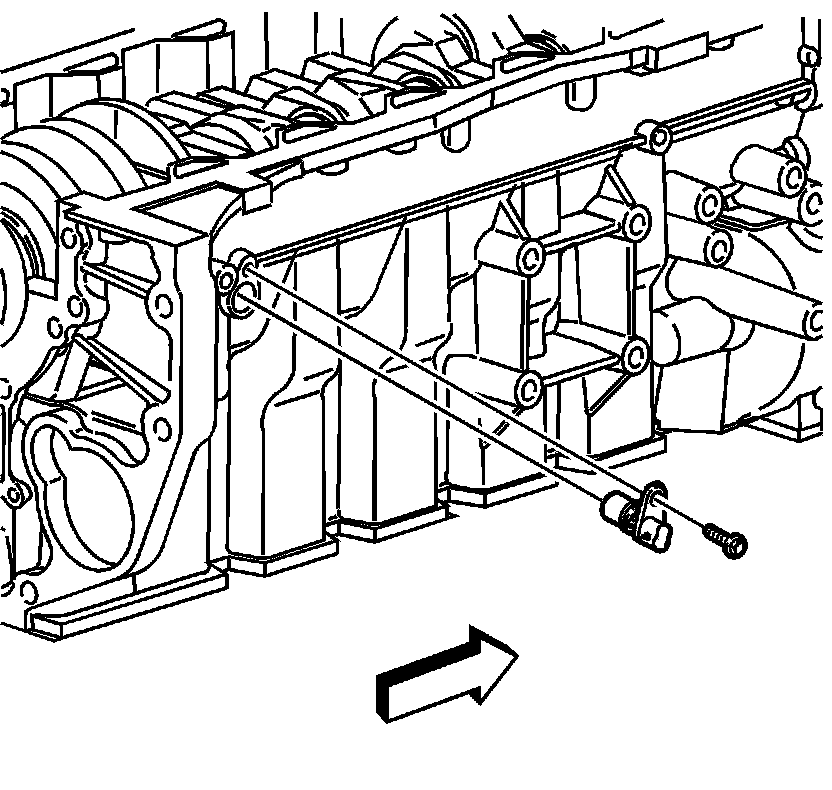

3. Remove the crankshaft position sensor.

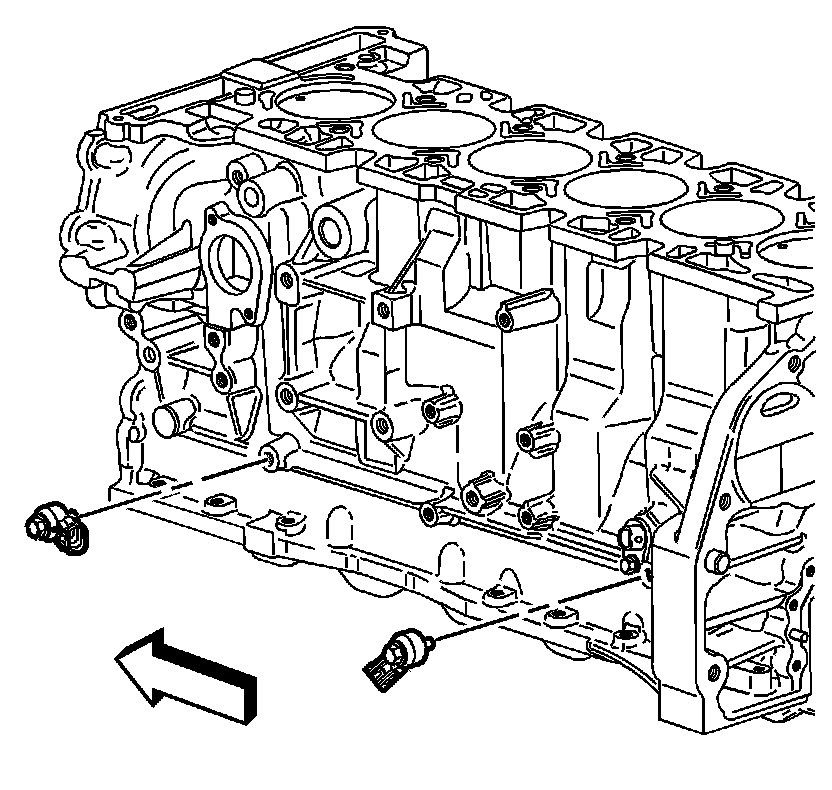

4. Remove the knock sensors.

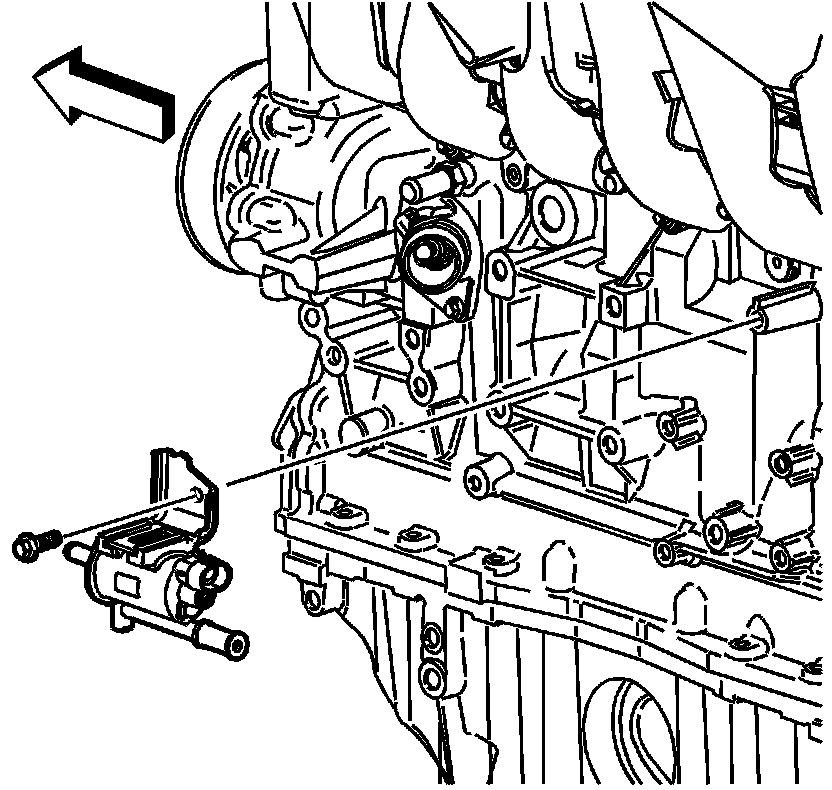

5. Remove the EVAP solenoid.

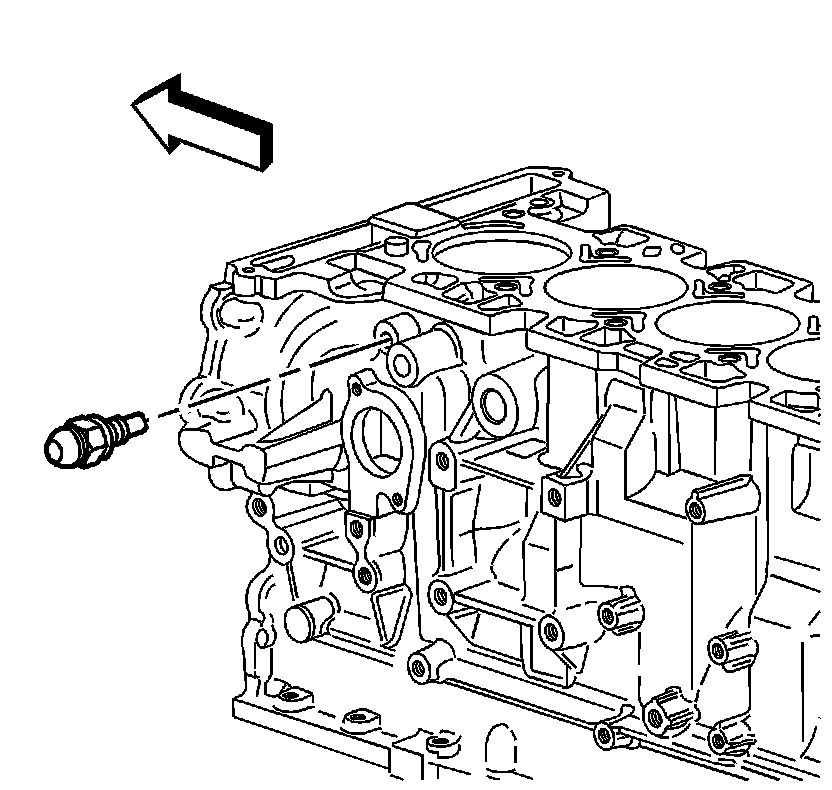

6. Remove the coolant temperature sensor.
