30. Valve Rocker Arm and Hydraulic Valve Lash Adjuster Removal

Valve Rocker Arm and Hydraulic Valve Lash Adjuster Removal





Important: Once removed, place the valve rocker arms and valve lash adjusters in an organized order so the components can be installed into the original locations.

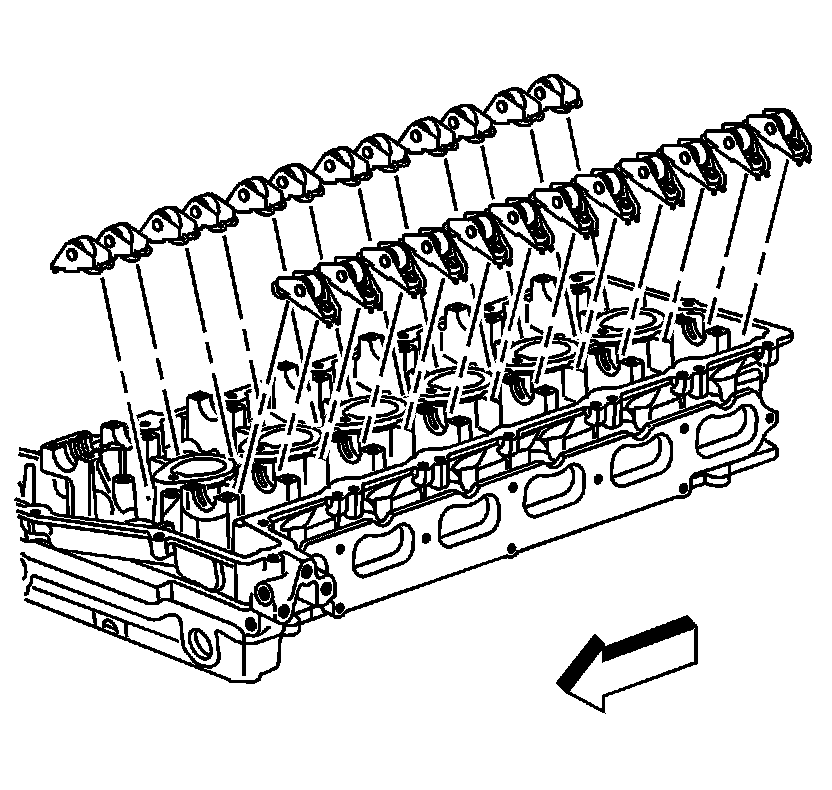

1. Remove the valve rocker arms.

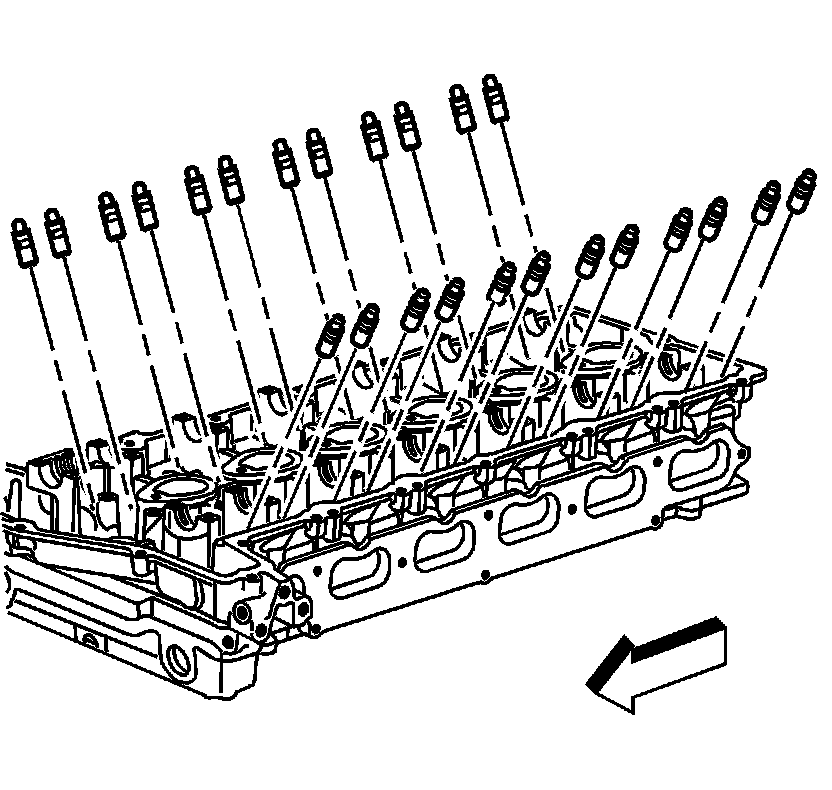

2. Remove the valve lash adjusters.
