25. Crankshaft Rear Oil Seal and Housing Removal




Crankshaft Rear Oil Seal and Housing Removal

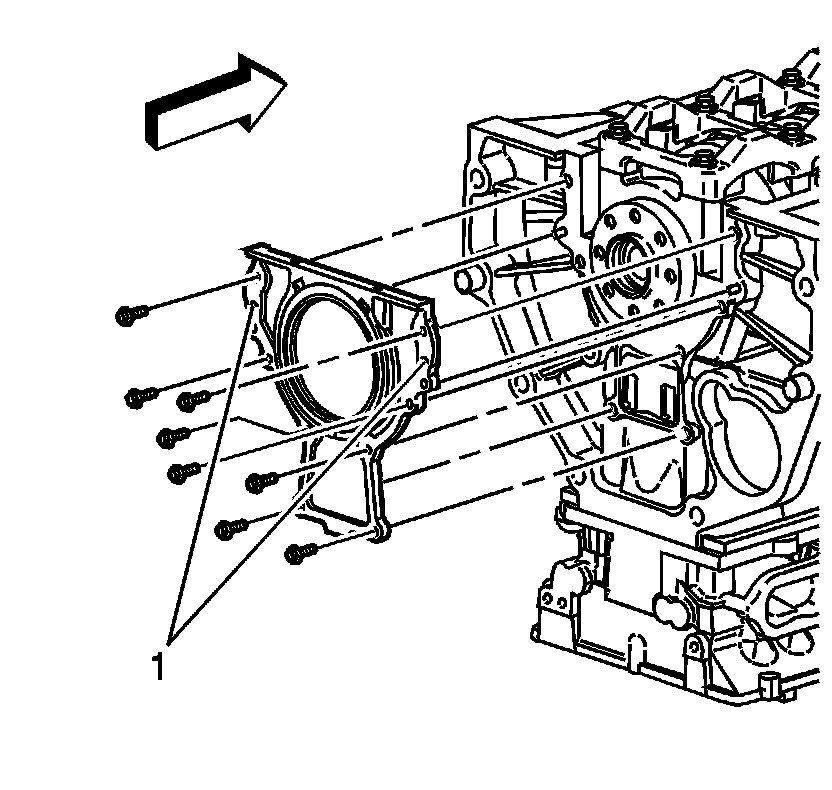

1. Remove the crankshaft rear oil seal housing bolts.
2. Install two bolts (Jack Screws) into the threaded holes (1) to break the seal of the housing.
3. Remove the crankshaft rear oil seal housing.
