22. Oil Pump Removal

Oil Pump Removal

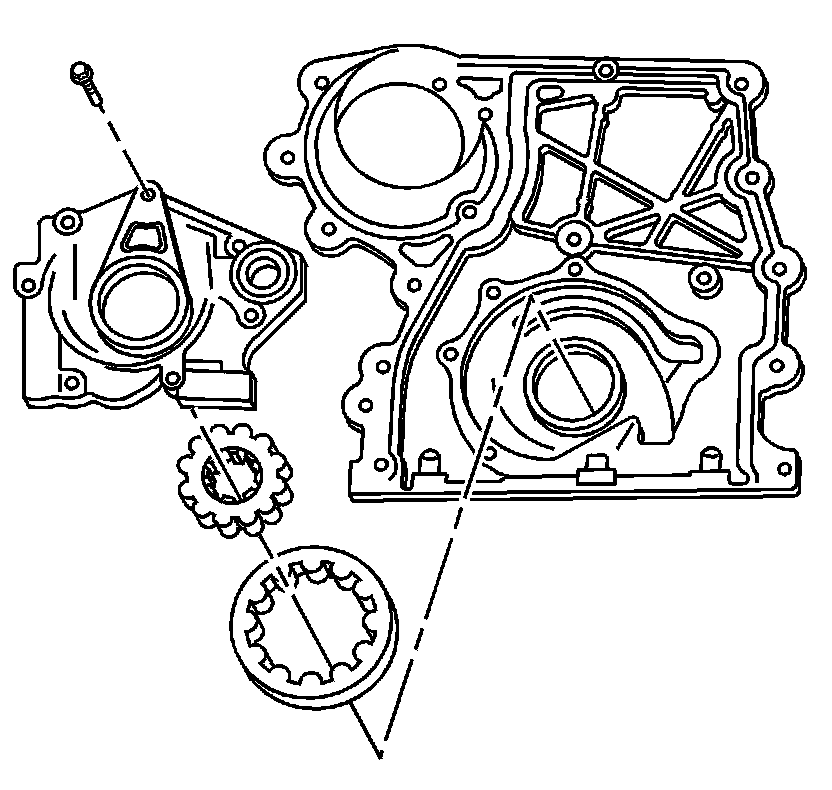

1. Remove the oil pump cover bolts.
2. Remove the oil pump cover.
3. Mark the inner and outer gears in relation to the oil pump housing.
4. Remove the inner and outer oil pump gears.
5. Remove the oil pump pressure relief valve plug.
6. Remove the oil pump pressure relief valve and spring.
