20. Crankshaft Balancer Removal




Crankshaft Balancer Removal

Tools Required:

J 41816-2 Crankshaft End Protector

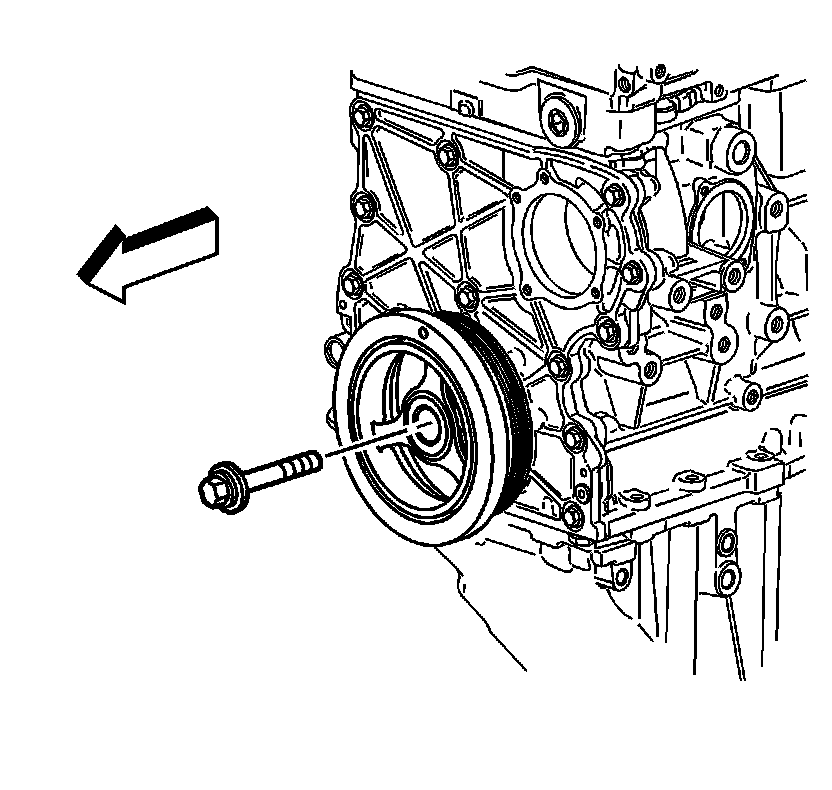

1. Remove the crankshaft balancer bolt.




2. Install J 41816-2 into the end of the crankshaft.

Important: Do not pull on outer edge of the crankshaft balancer.

3. Use a three jaw puller to remove the crankshaft balancer.
4. Remove J 41816-2 .
