19. Oil Pump Suction Pipe and Screen Assembly Removal

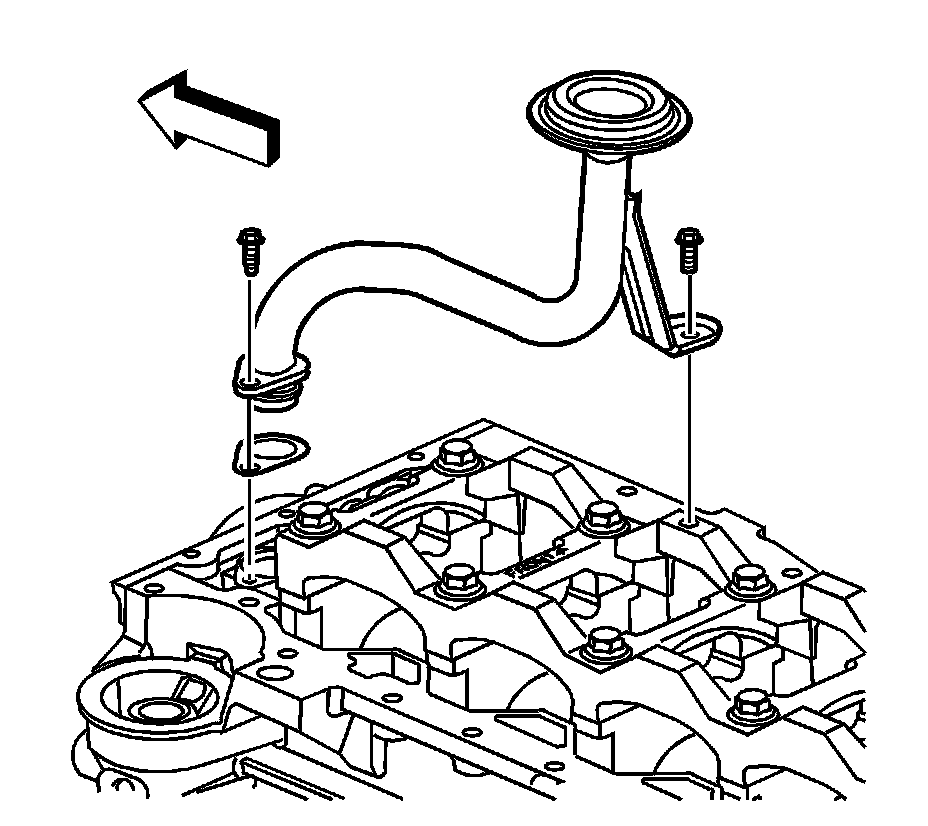

Oil Pump Suction Pipe and Screen Assembly Removal




1. Remove the oil pump pipe bolts.
2. Remove the oil pump pipe.
3. Discard the gasket.
