17. Camshaft Cover Removal




Camshaft Cover Removal




1. Remove the ignition control modules and bolts.

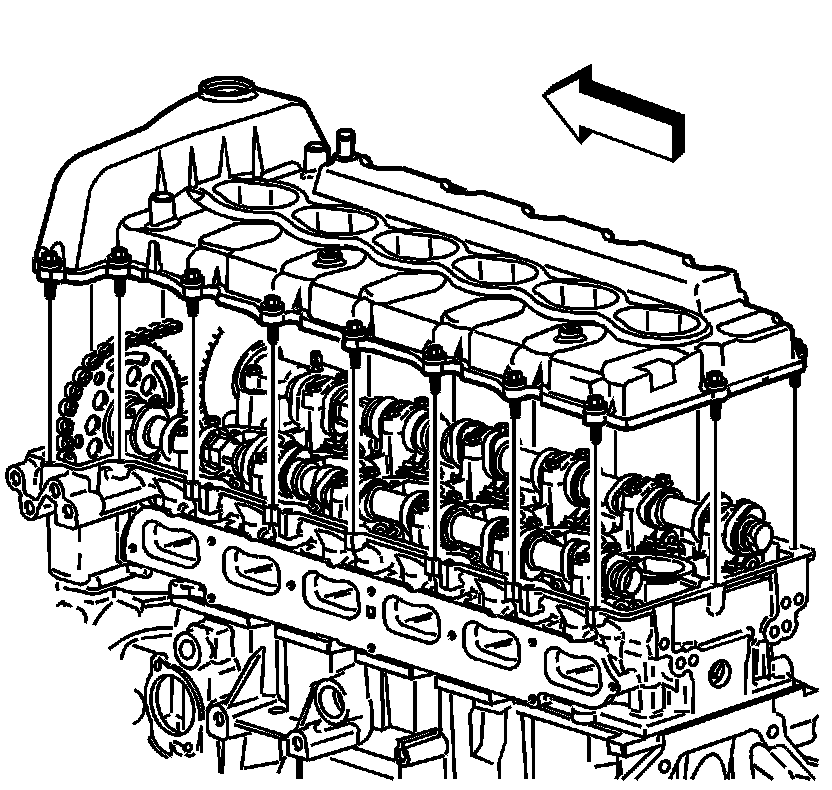

2. Remove the camshaft cover and bolts.
