12. Water Pump Removal




Water Pump Removal

Tool Required

J 41240 Fan Clutch Remover and Installer

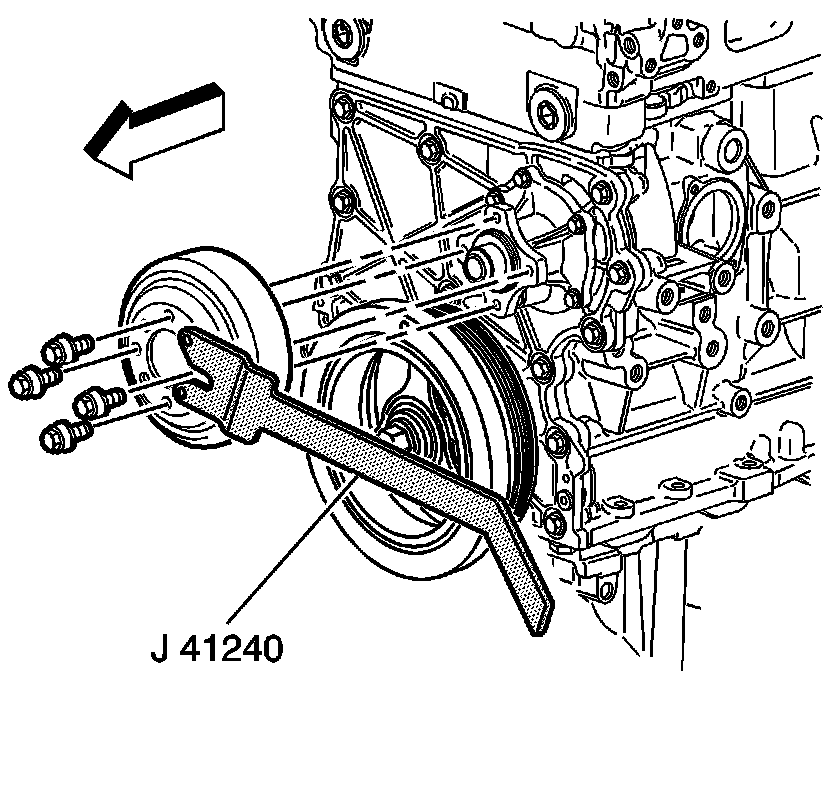

1. Install J 41240 to hold the pulley.
2. Remove the water pump pulley bolts.
3. Remove J 41240 .
4. Remove the water pump pulley

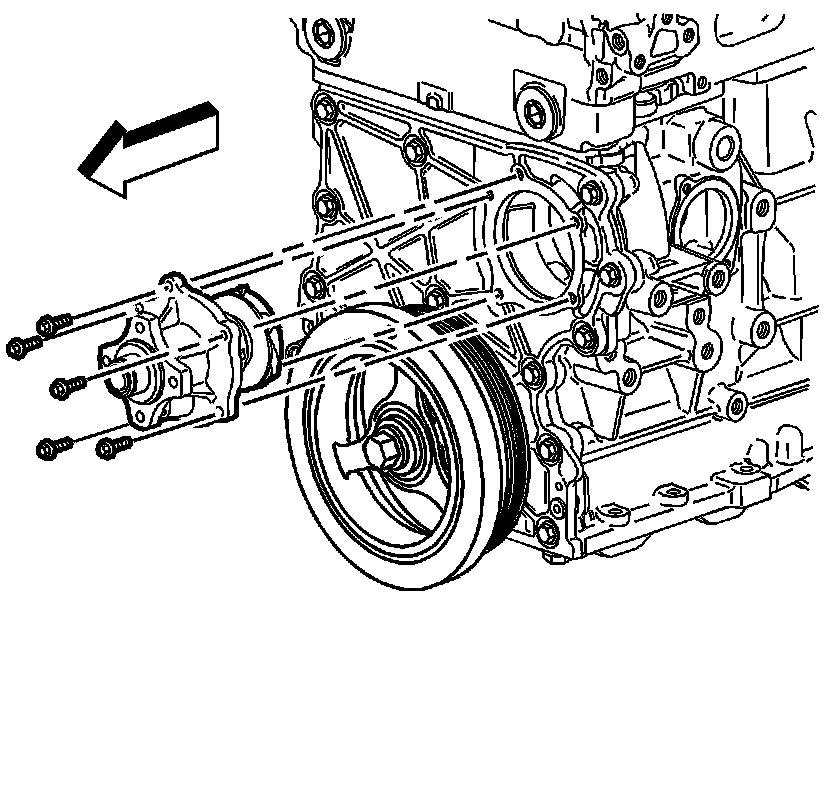

5. Remove the water pump bolts.
6. Remove the water pump.
7. Remove the water pump gasket.
