Master Splice List




Master Electrical Component List

J100 - J102:

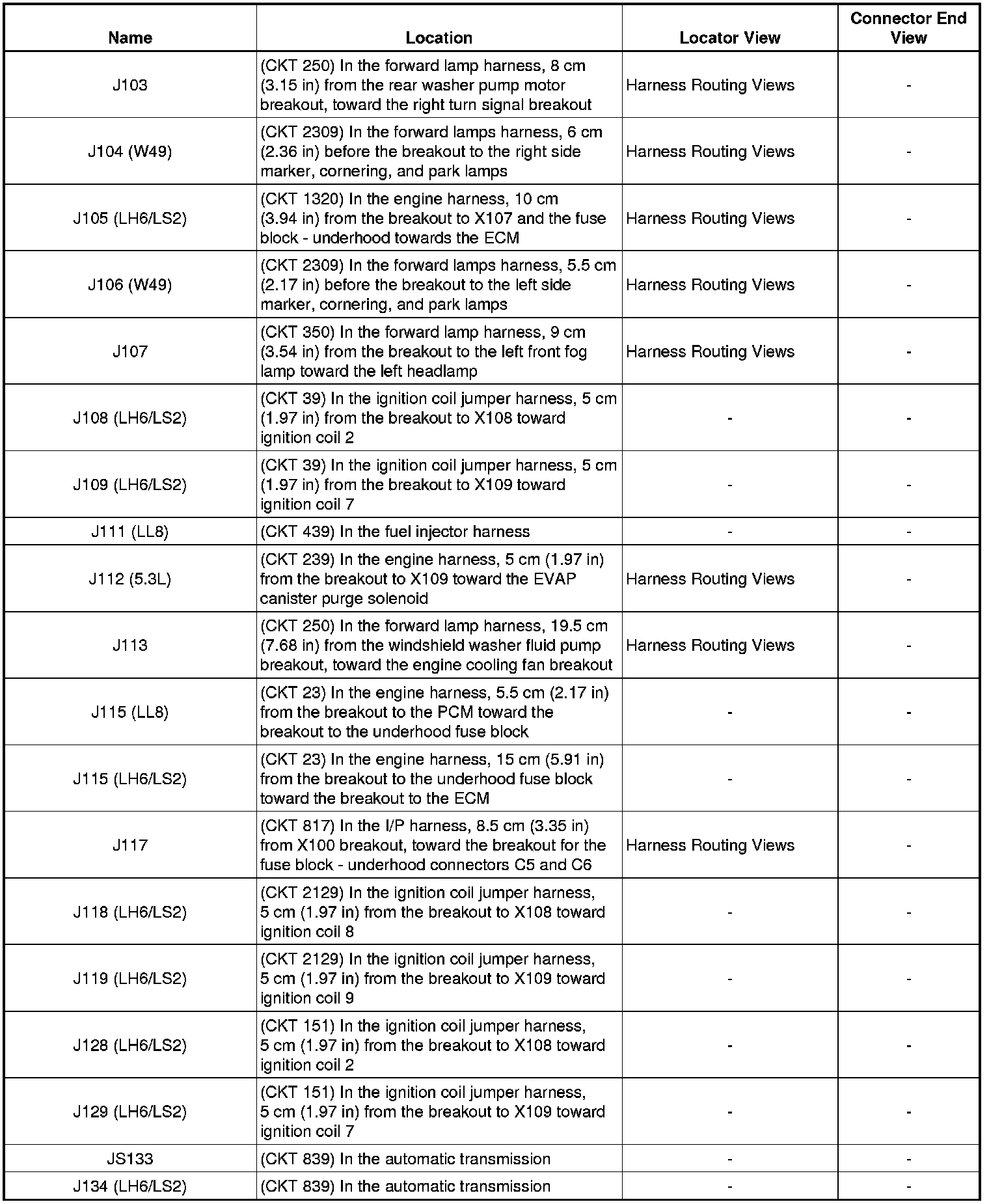

J103 - J134:

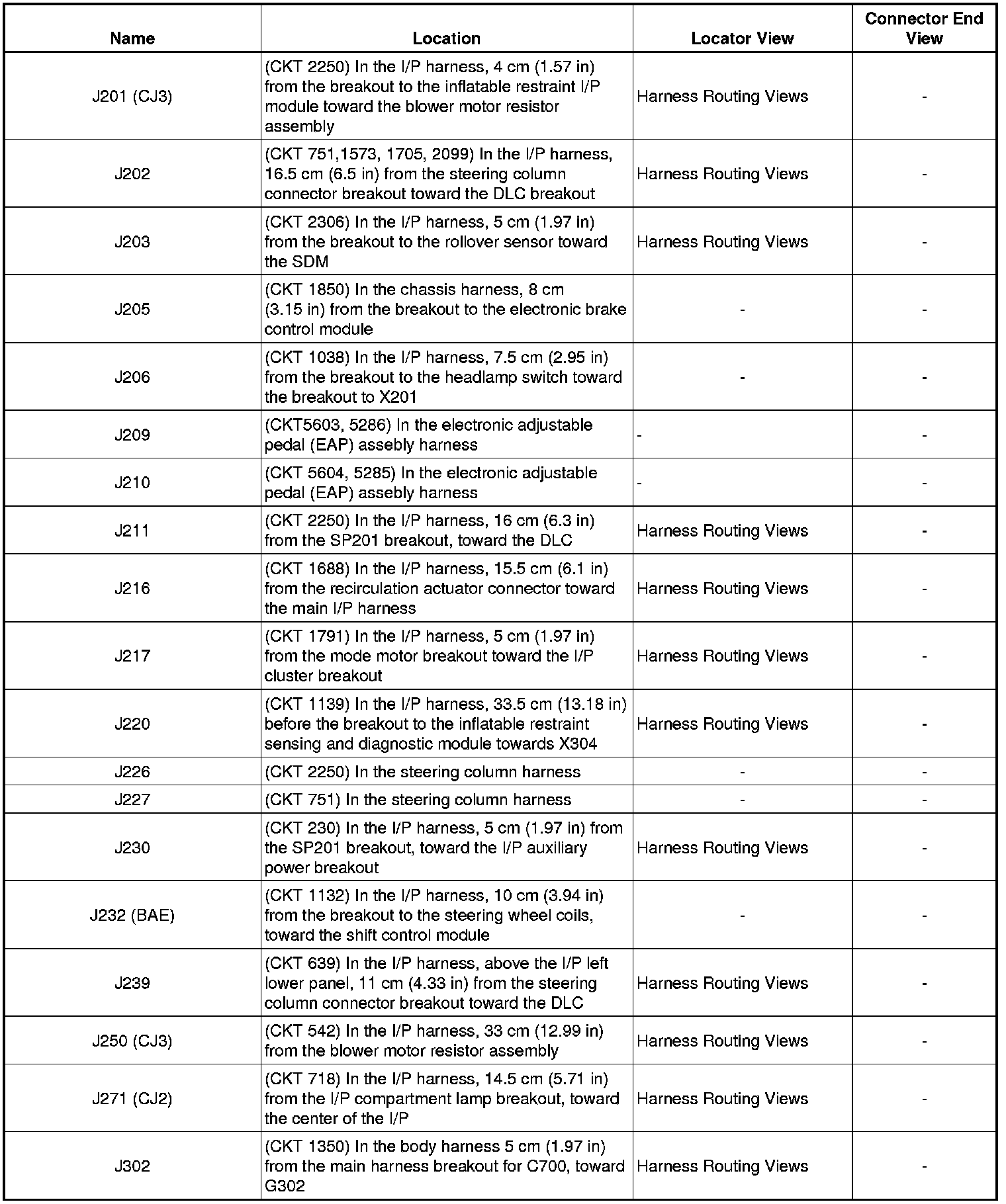

J201 - J302:

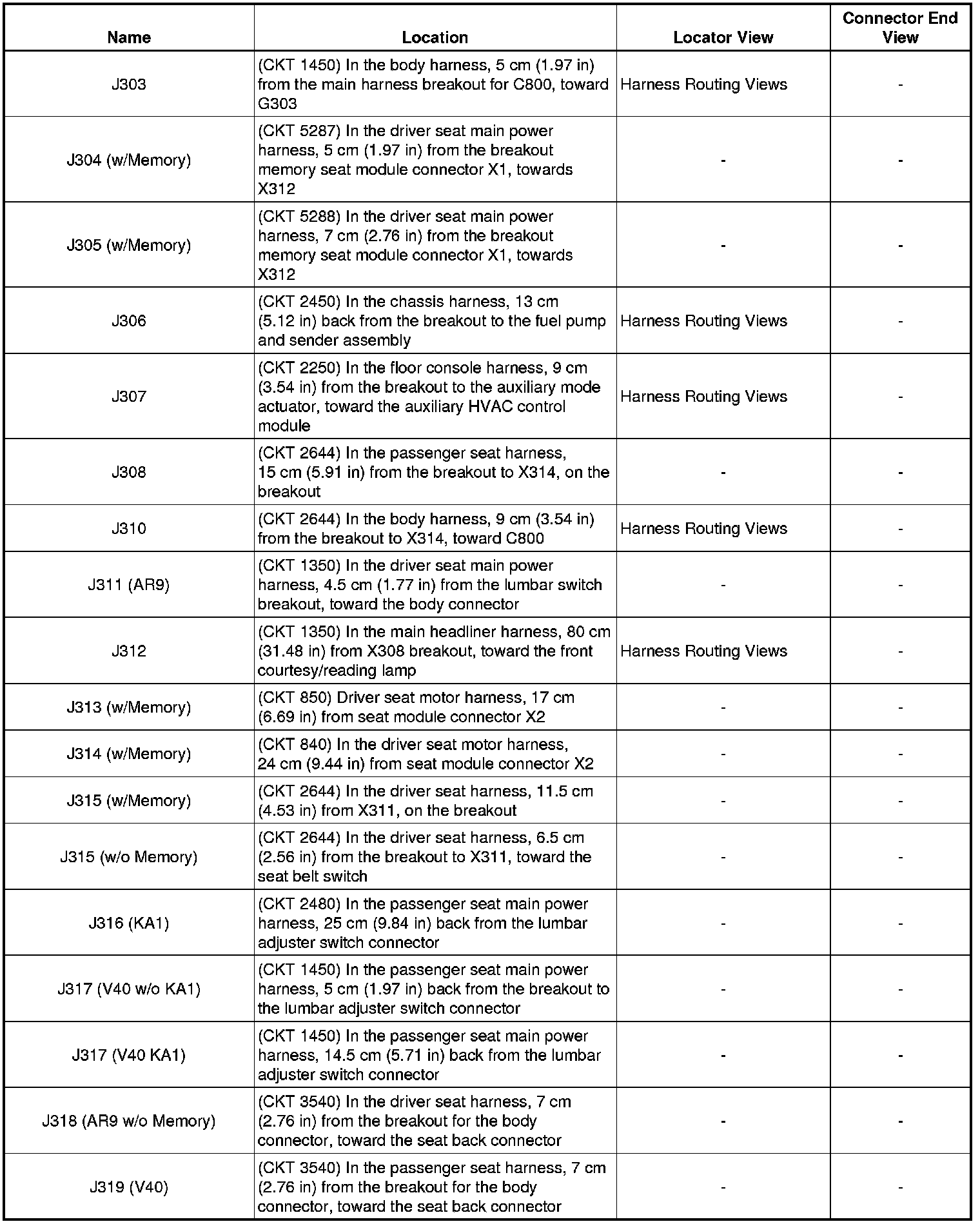

J303 - J319:

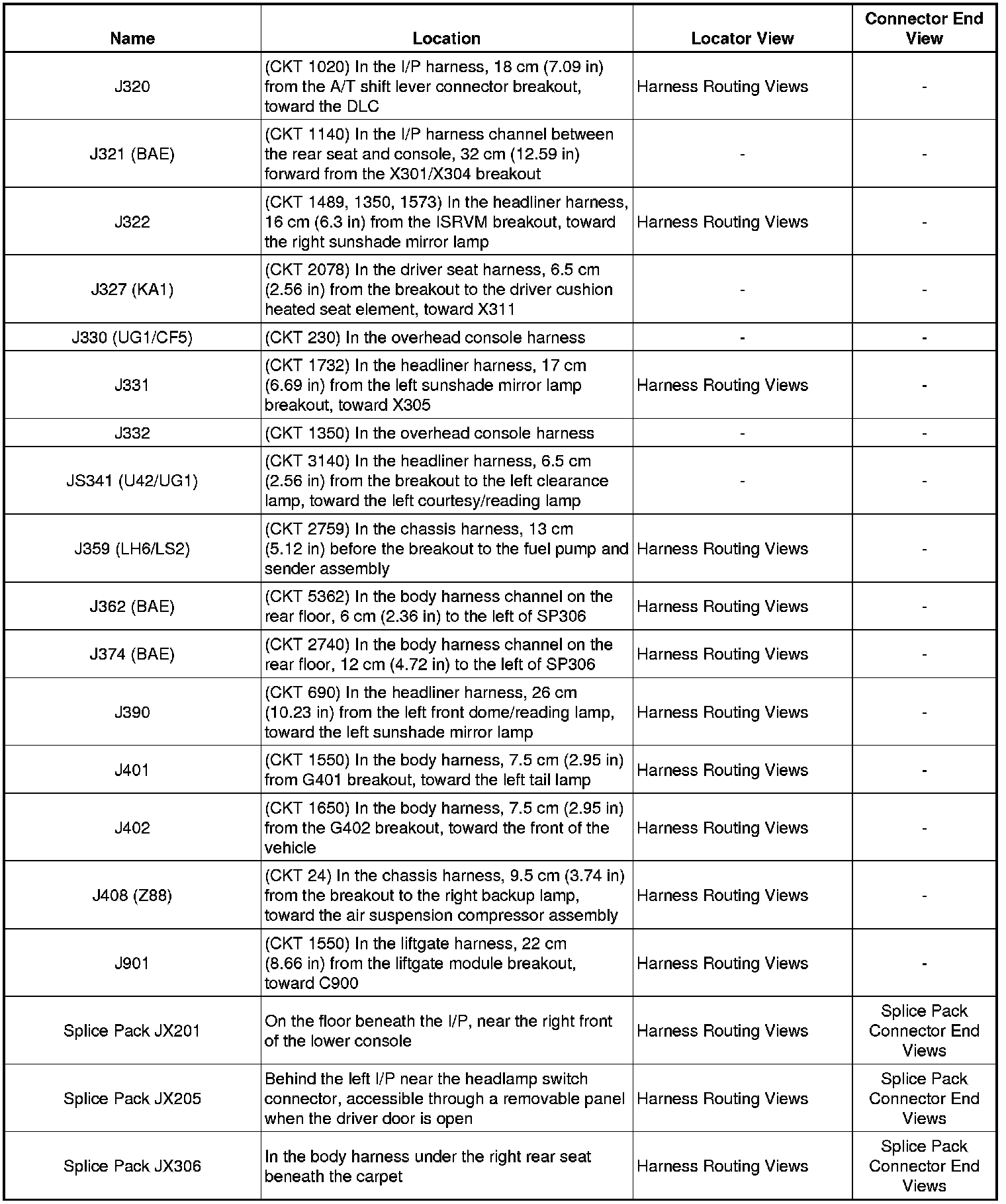

J320 - JX306:
