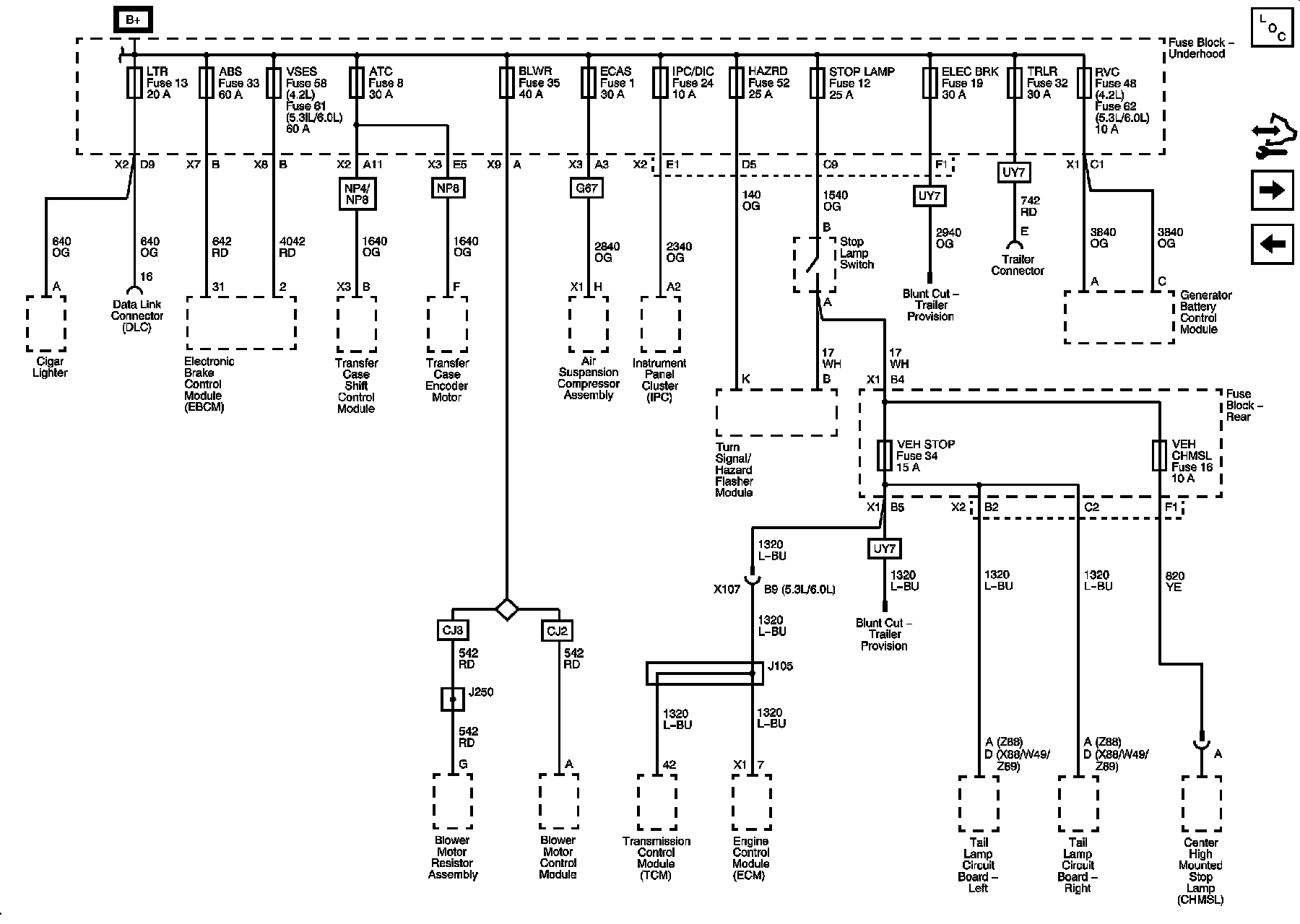

Power Distribution Diagram 3




Power Distribution Schematics

BAS, ATC, BLWR, ECAS, ELEC BRK, HAZRD, IPC/DIC, LTR, RVC, STOP LAMP, TRLR, VEH CHSL, VEH STOP, and VSES CHMSL, VEH STOP, and VSES Fuses
