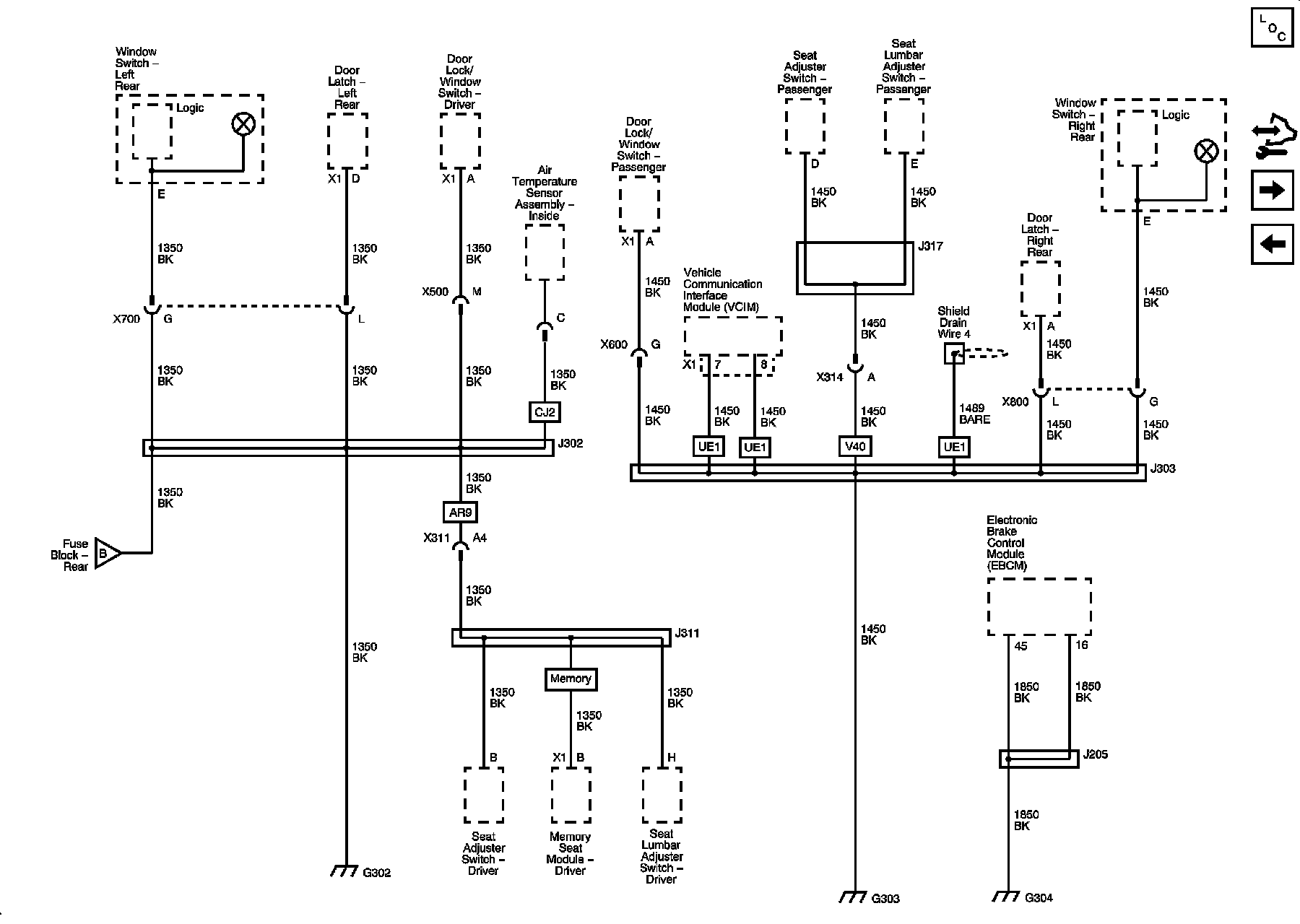

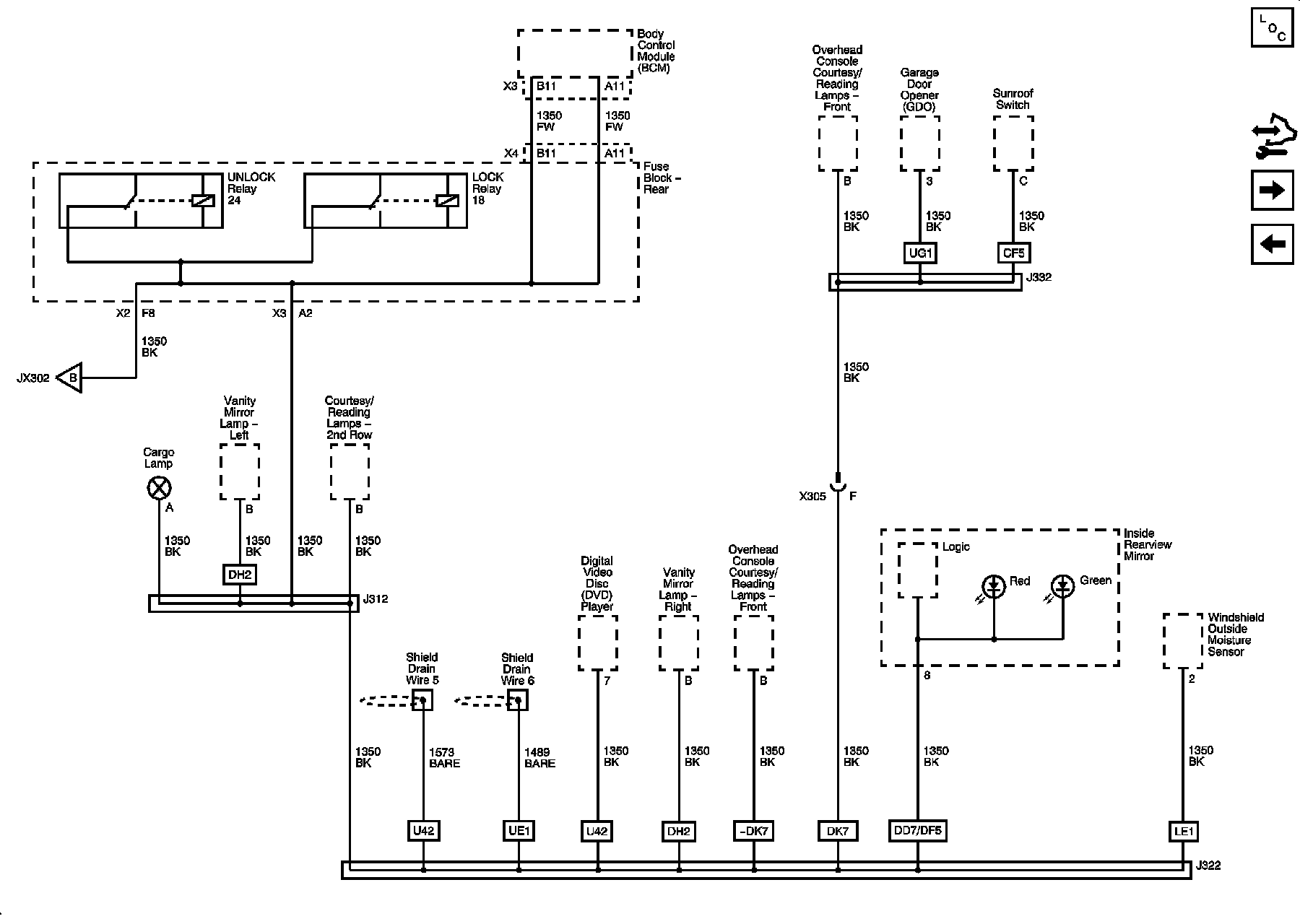

Home >> Chevrolet >> 2009 >> TrailBlazer 2WD L6-4.2L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting and Charging >> Power and Ground Distribution >> System Diagram >> Ground Distribution Diagrams >> G302
