X201

Instrument Panel/Center Console Component Views

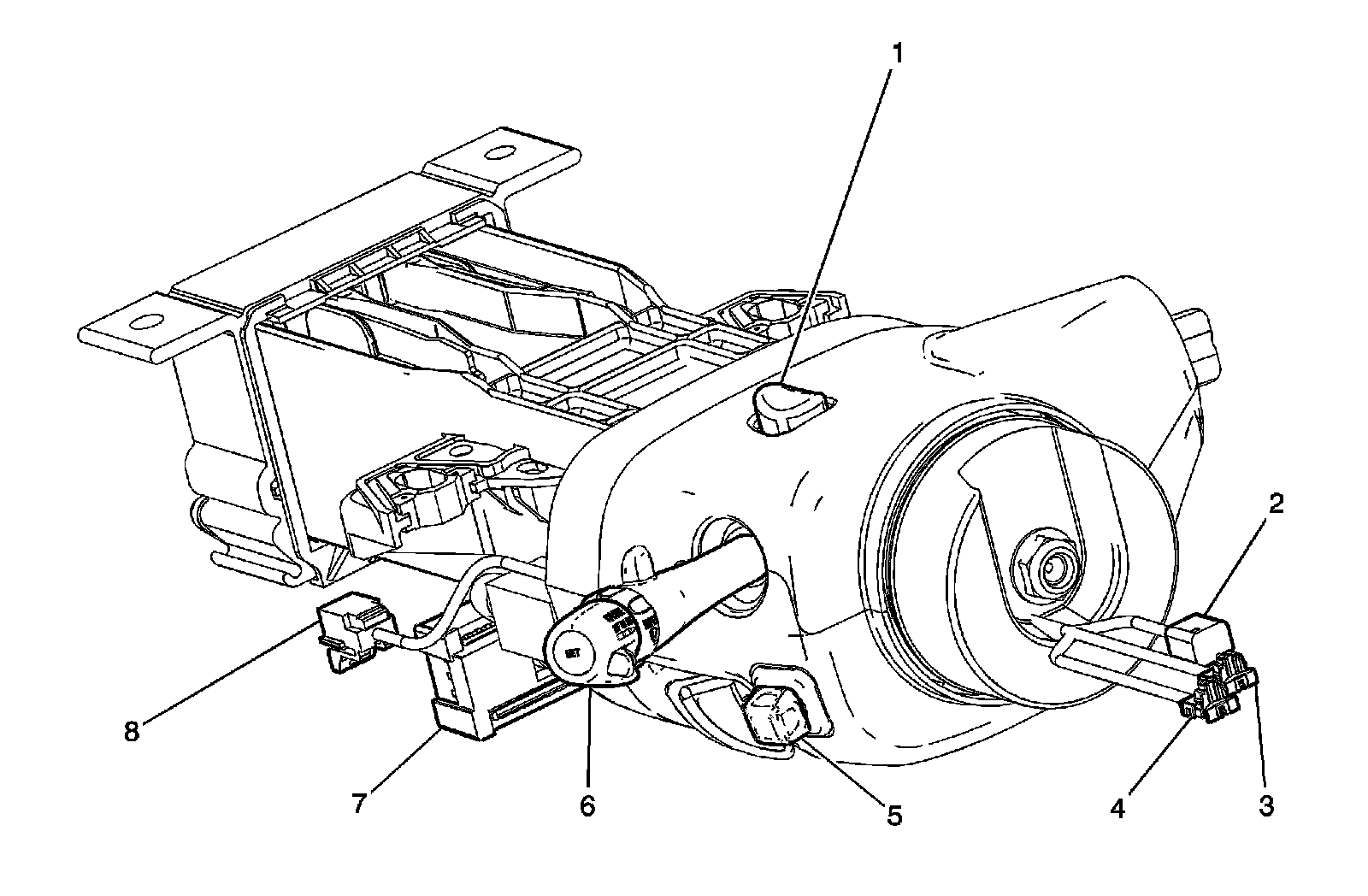

Steering Column Components




1 - Hazard Switch
2 - X277
3 - Inflatable Restraint Steering Wheel Module Connector X1
4 - Inflatable Restraint Steering Wheel Module Connector X2
5 - Electronic Adjustable Pedals (EAP) Switch
6 - Turn Signal/Multifunction Switch
7 - X201
8 - X275
