C277

Harness Routing Views

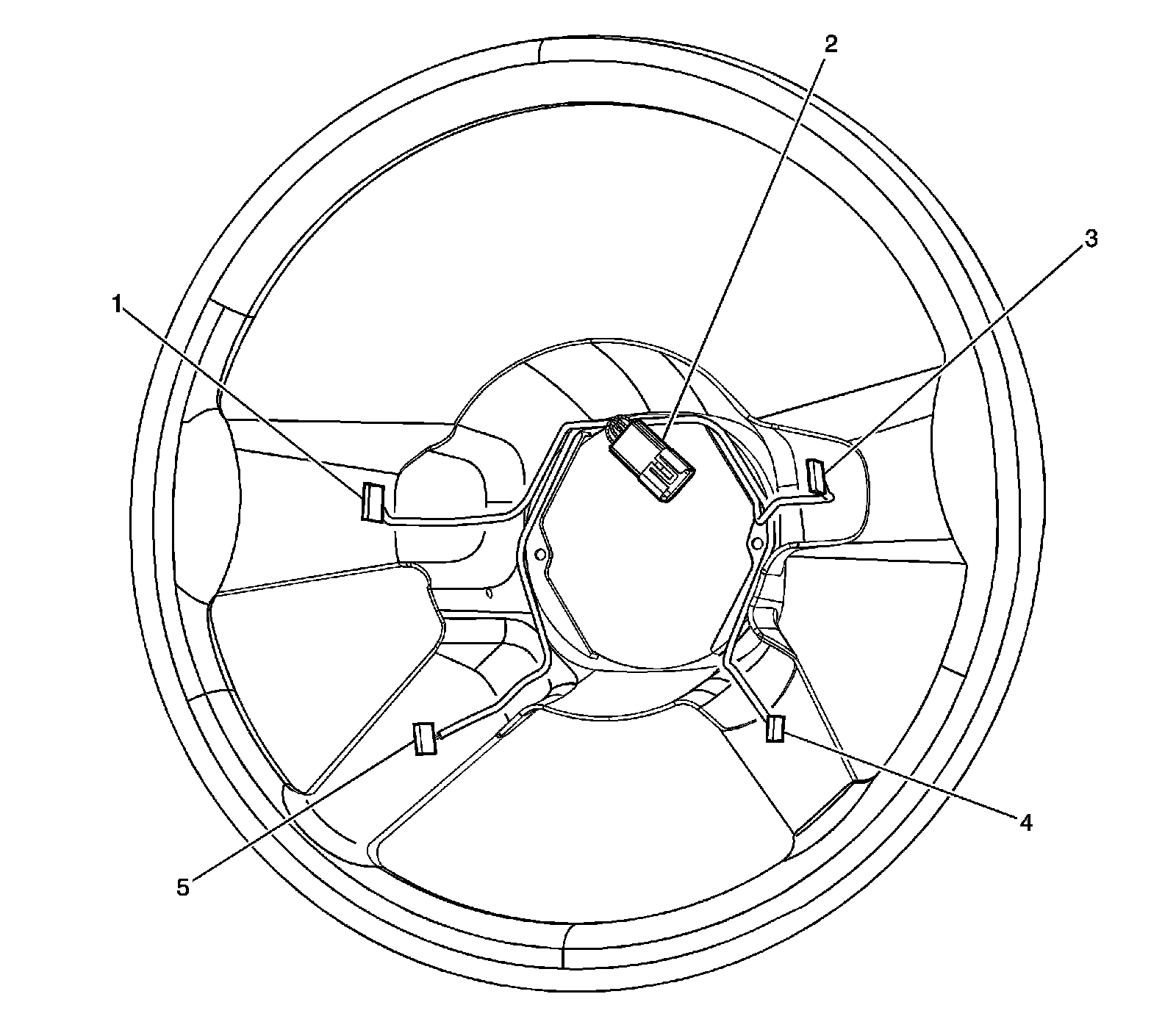

Steering Wheel Harness Routing (STW)




1 - Steering Wheel Control Switch Assembly - Upper Left
2 - C277
3 - Steering Wheel Control Switch Assembly - Upper Right
4 - Steering Wheel Control Switch Assembly - Lower Right
5 - Steering Wheel Control Switch Assembly - Lower Left
