Valve Deactivation Solenoid

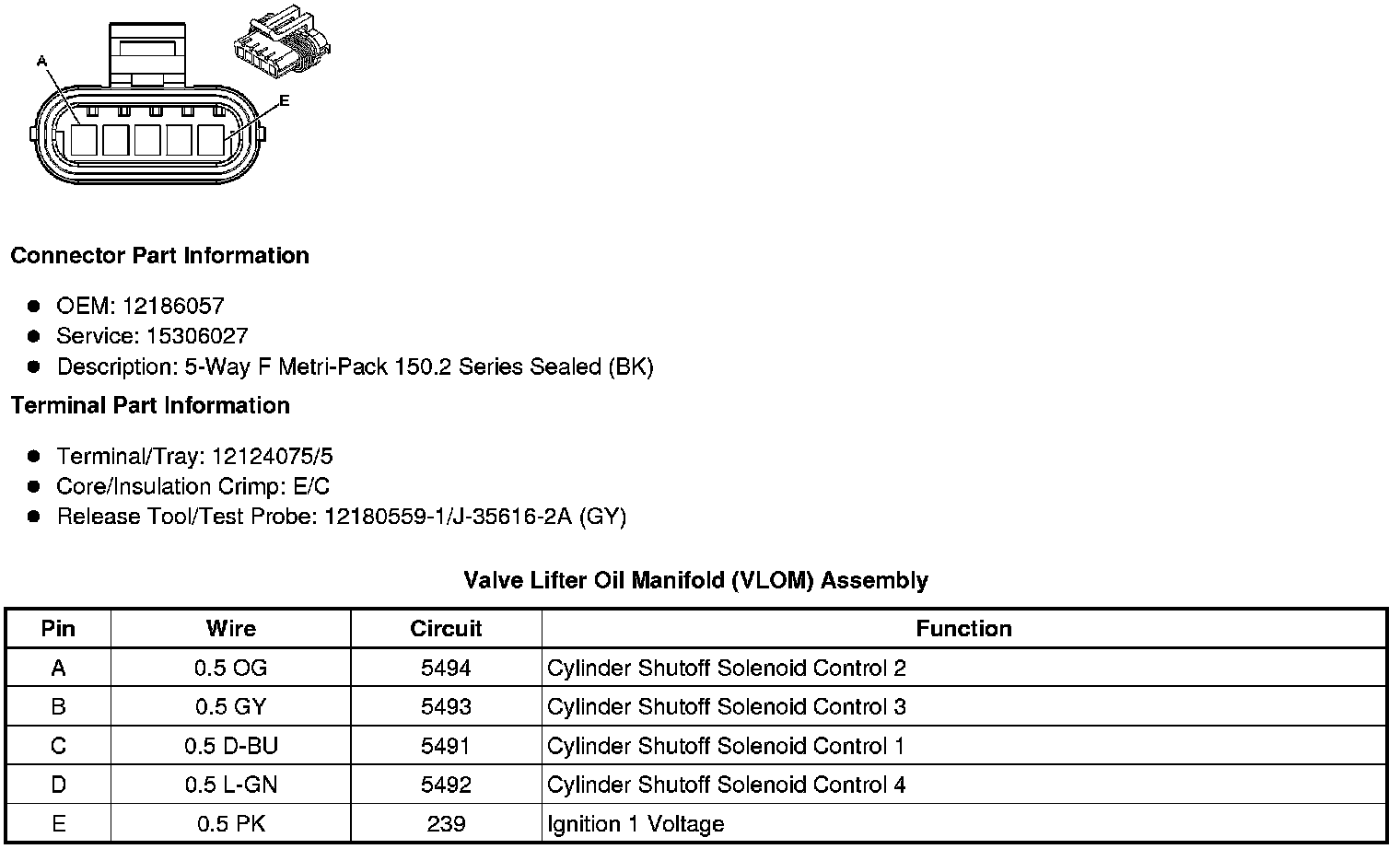

Component Connector End Views

Valve Lifter Oil Manifold (VLOM) Assembly
