Seat Occupant Sensor




Component Connector End Views

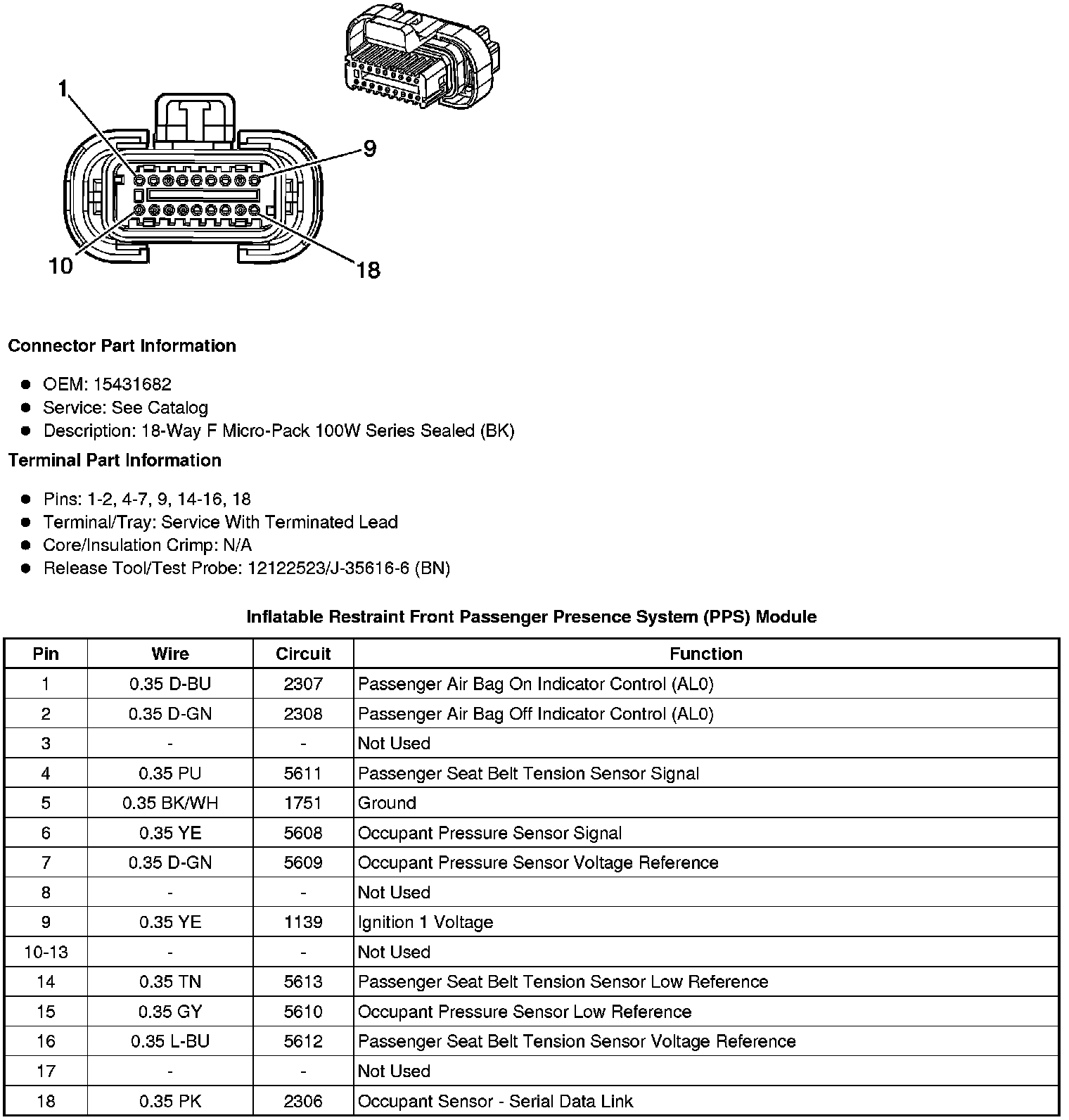

Inflatable Restraint Front Passenger Presence System (PPS) Module

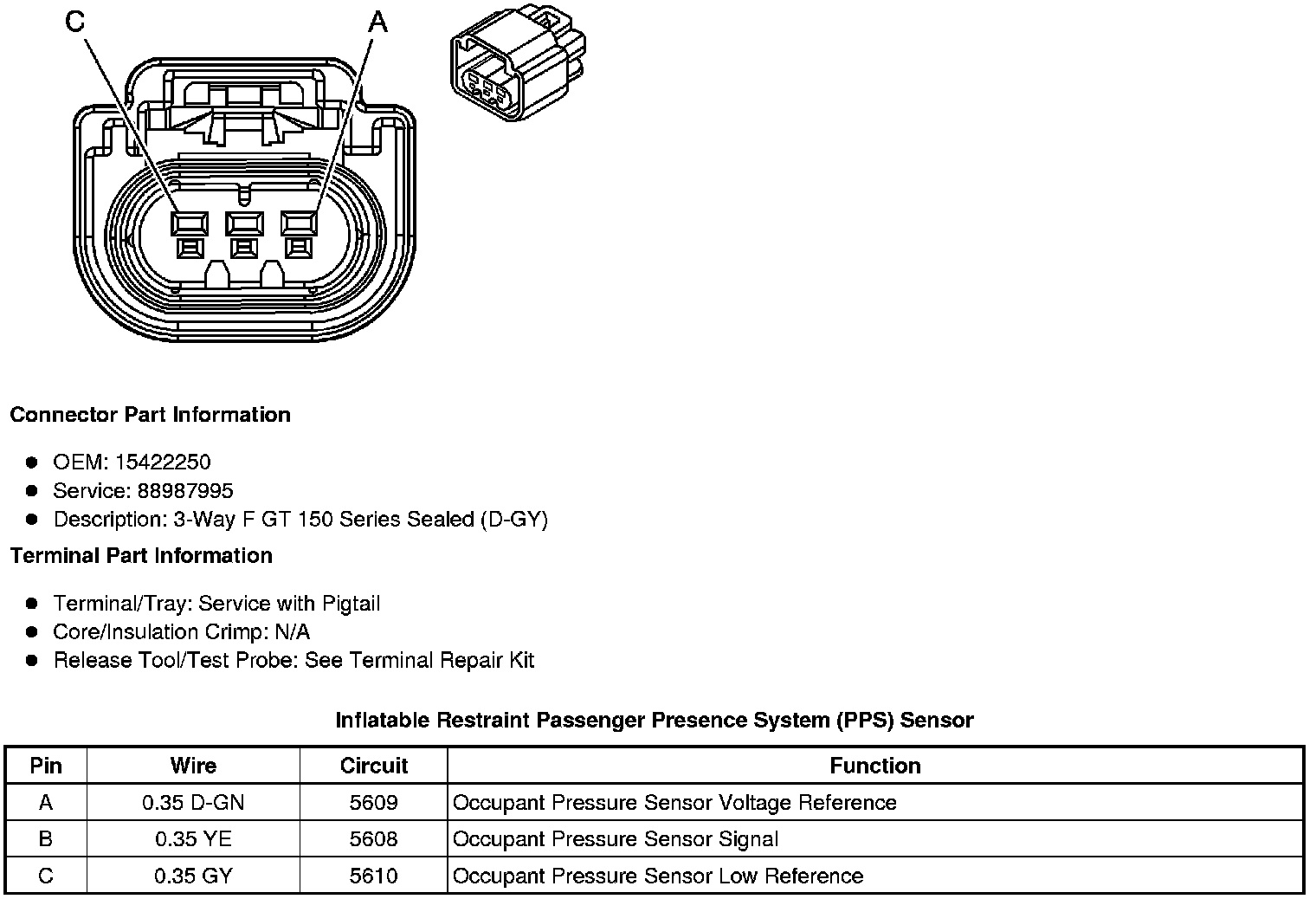

Inflatable Restraint Passenger Presence System (PPS) Sensor
