Seat Belt Retractor




Component Connector End Views

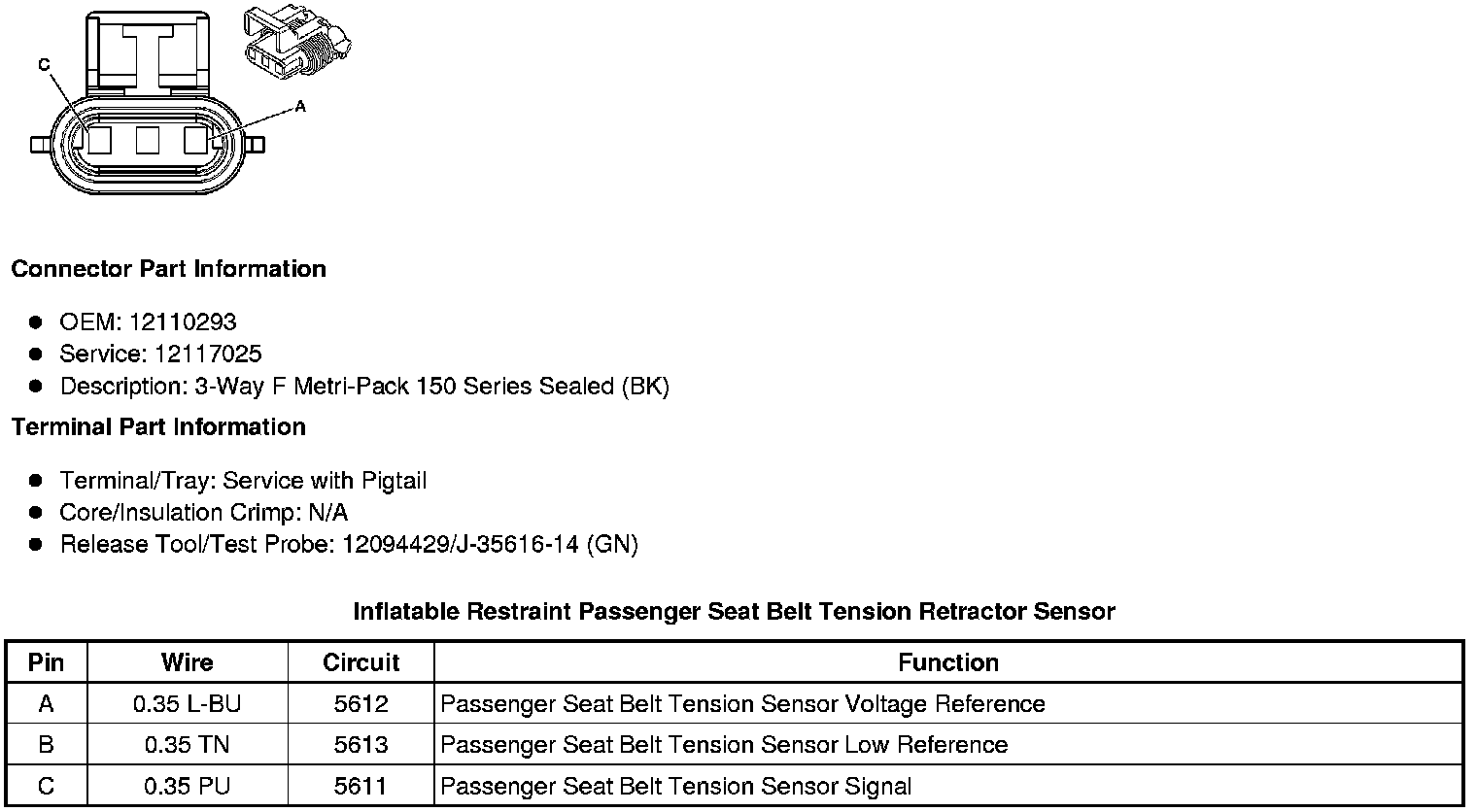

Inflatable Restraint Passenger Seat Belt Tension Retractor Sensor
