Refrigerant Pressure Sensor / Switch, HVAC





Component Connector End Views

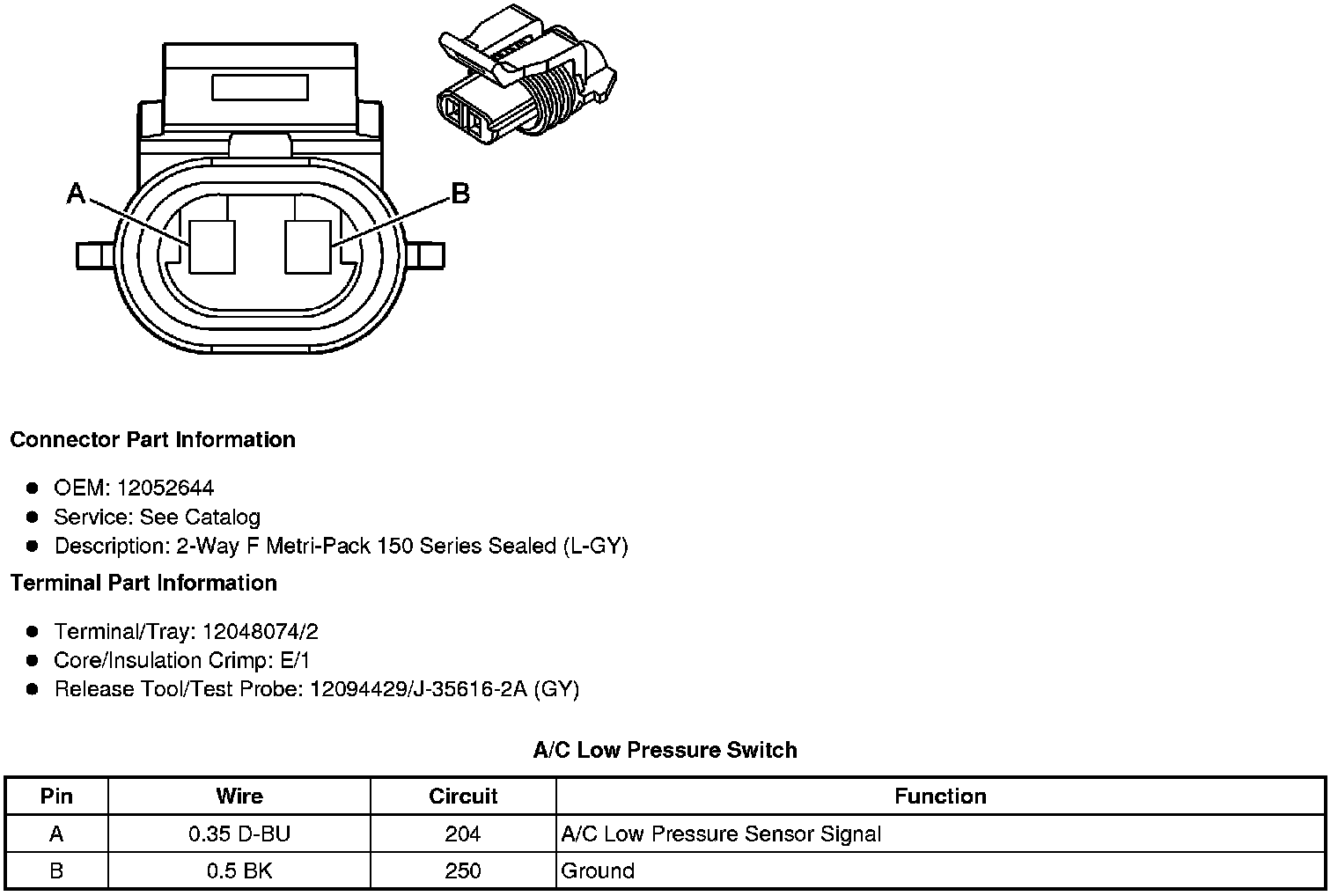

A/C Low Pressure Switch

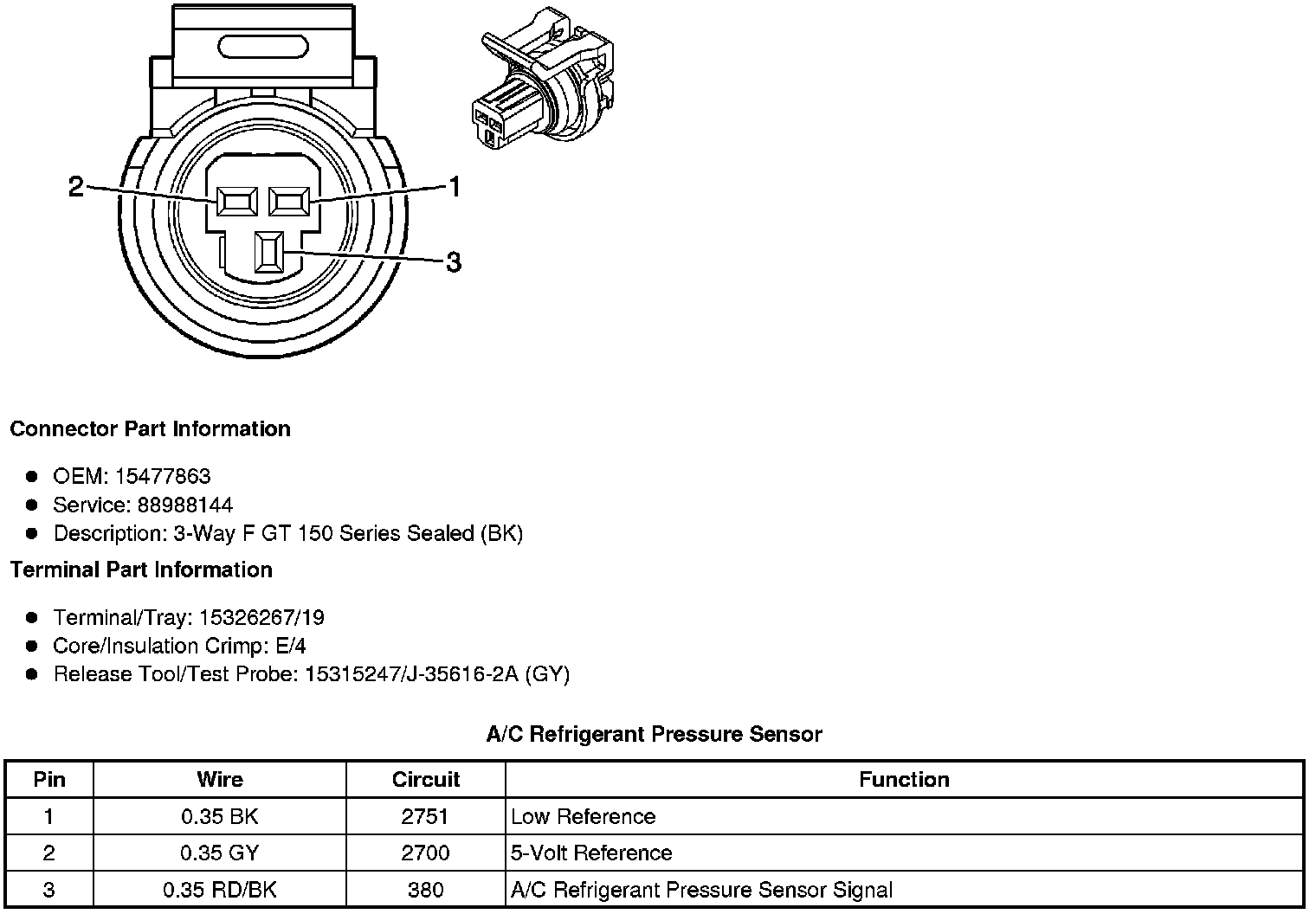

A/C Refrigerant Pressure Sensor
