Rear Door Latch




Component Connector End Views

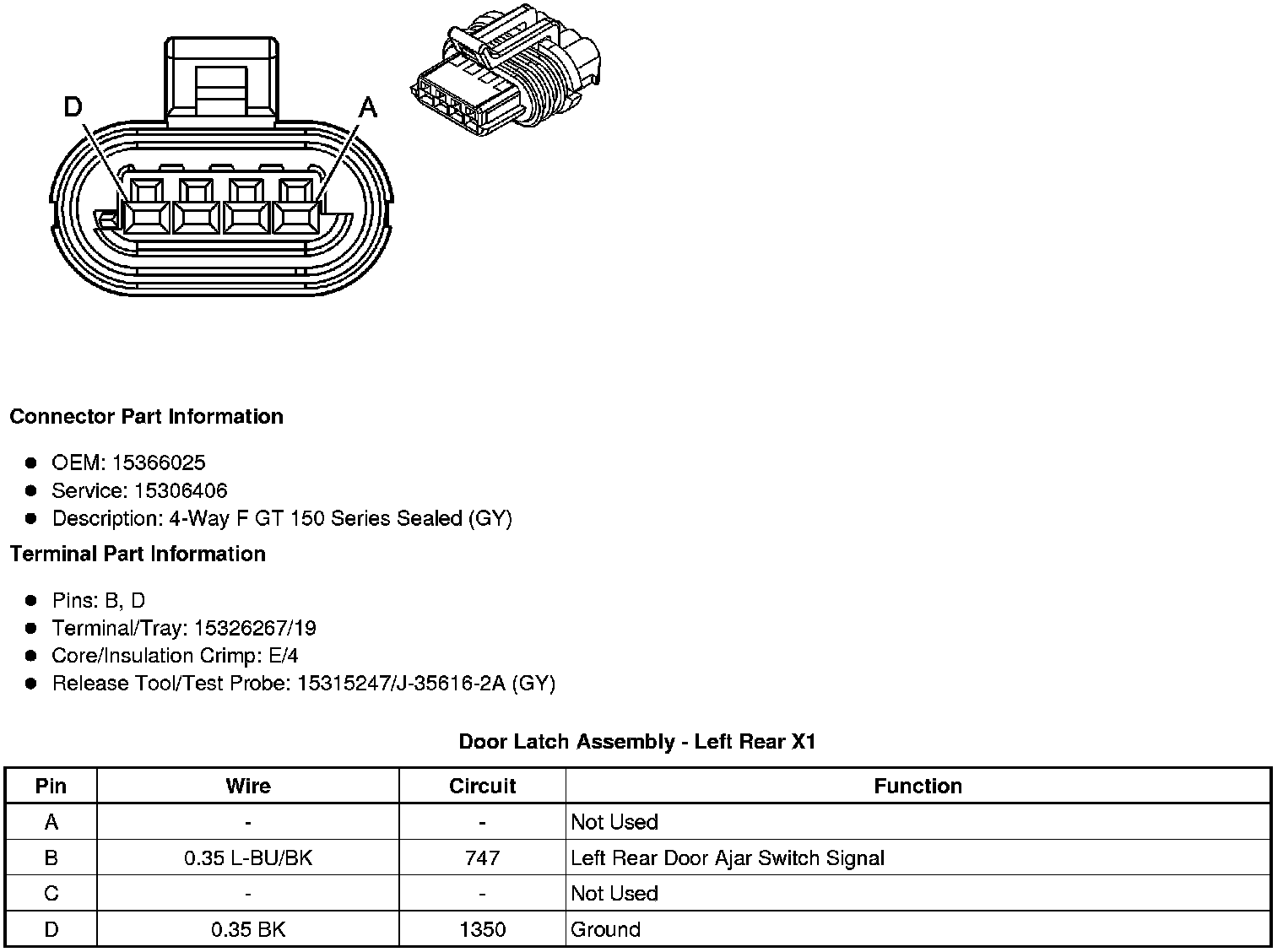

Door Latch Assembly - Left Rear X1






Door Latch Assembly - Left Rear X2






Door Latch Assembly - Passenger X1






Door Latch Assembly - Passenger X2






Door Latch Assembly - Right Rear X1






Door Latch Assembly - Right Rear X2
