Air Injection Vacuum Control Solenoid Valve

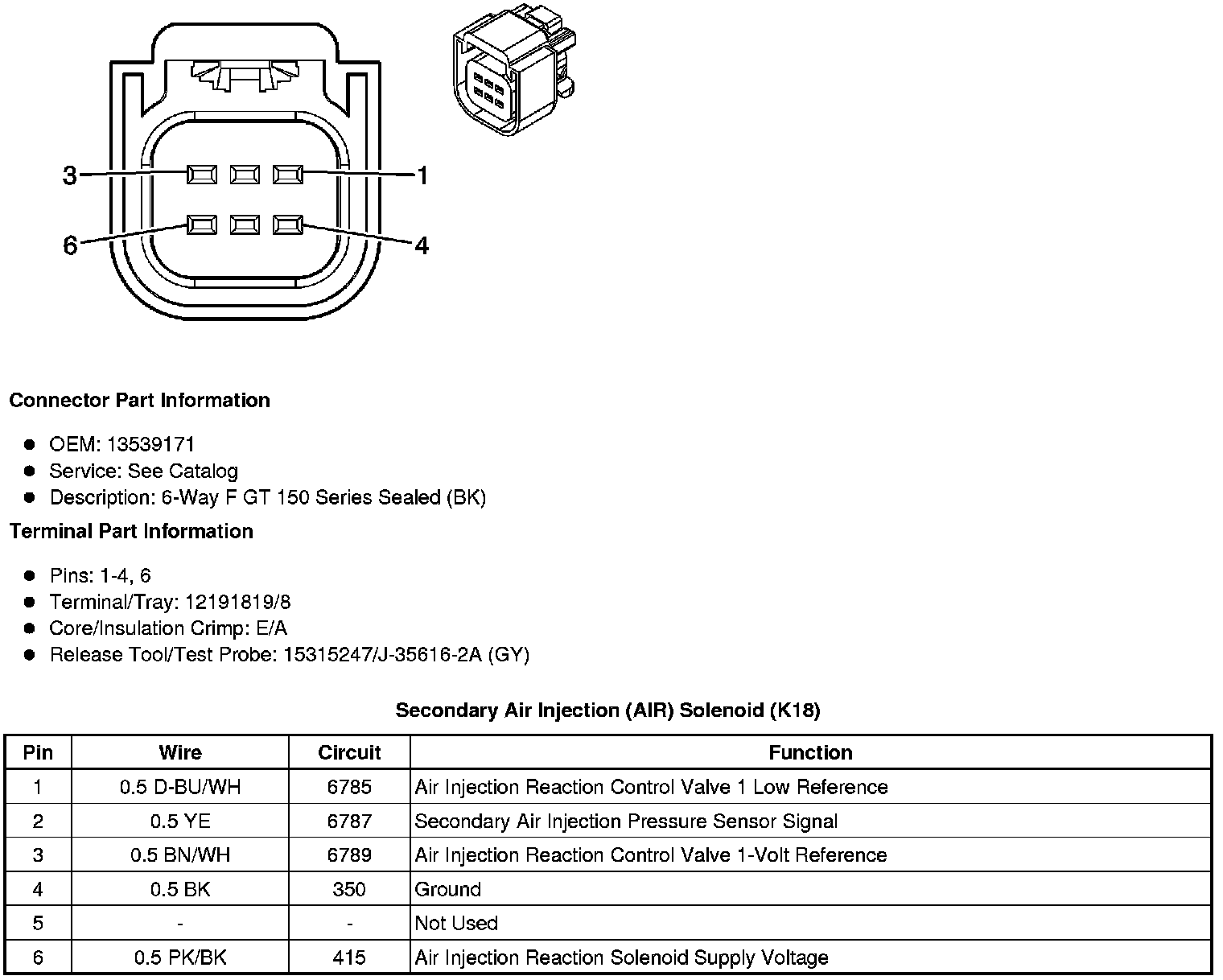

Component Connector End Views

Secondary Air Injection (AIR) Solenoid (K18)
