Air Door Actuator / Motor, HVAC




Component Connector End Views

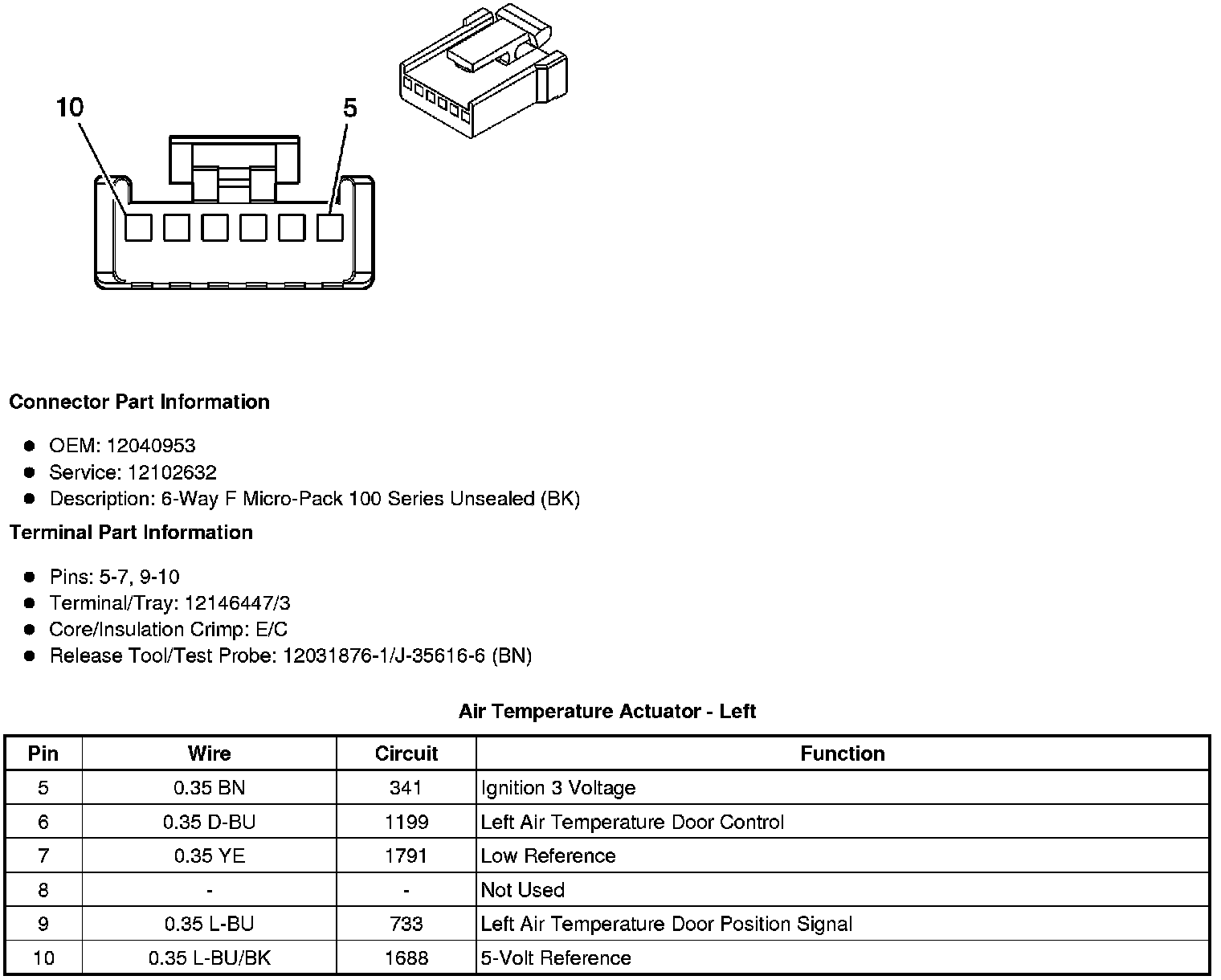

Air Temperature Actuator - Left

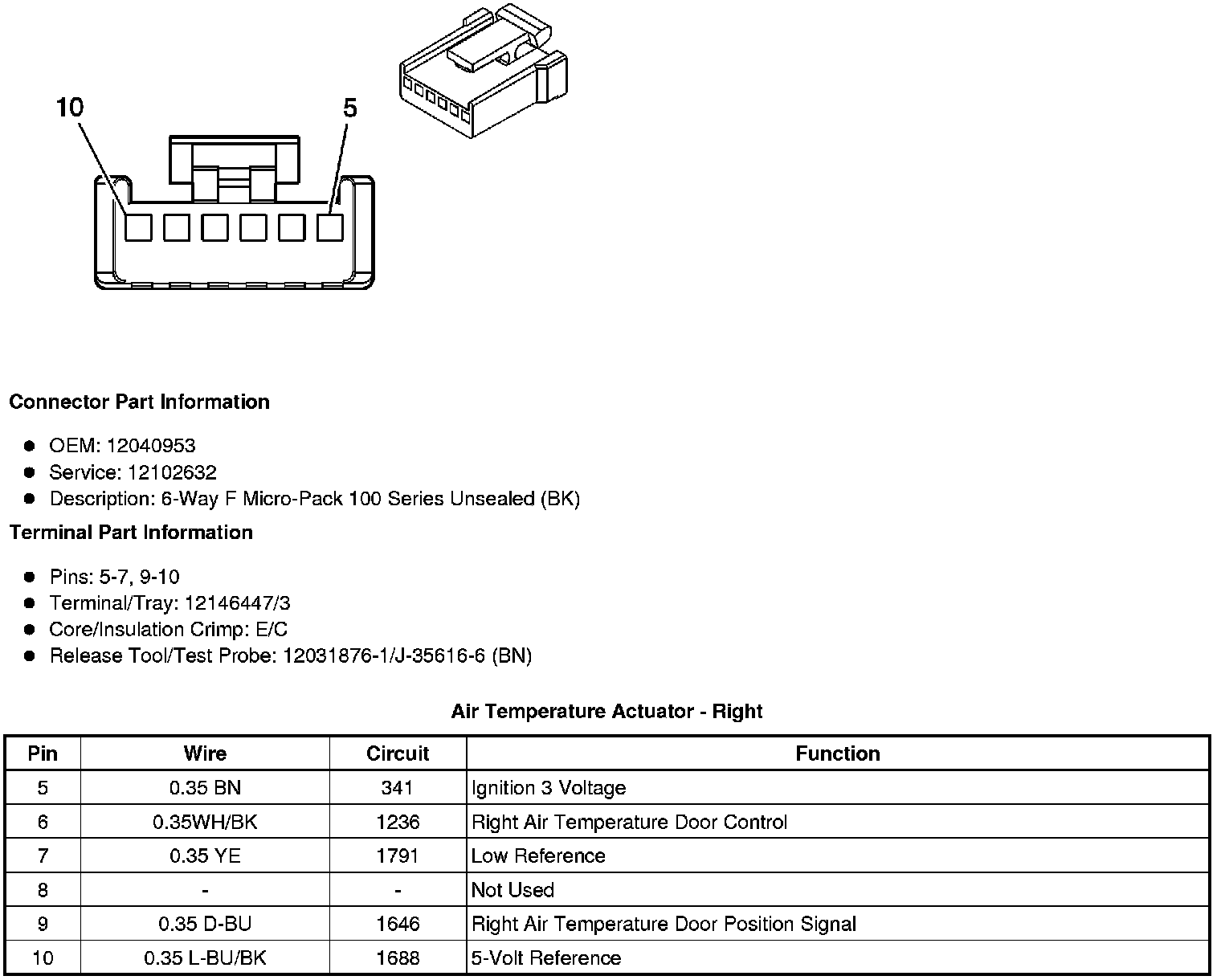

Air Temperature Actuator - Right






Console Mode Actuator - Auxiliary (CJ2)






Console Mode Actuator - Auxiliary (CJ3)

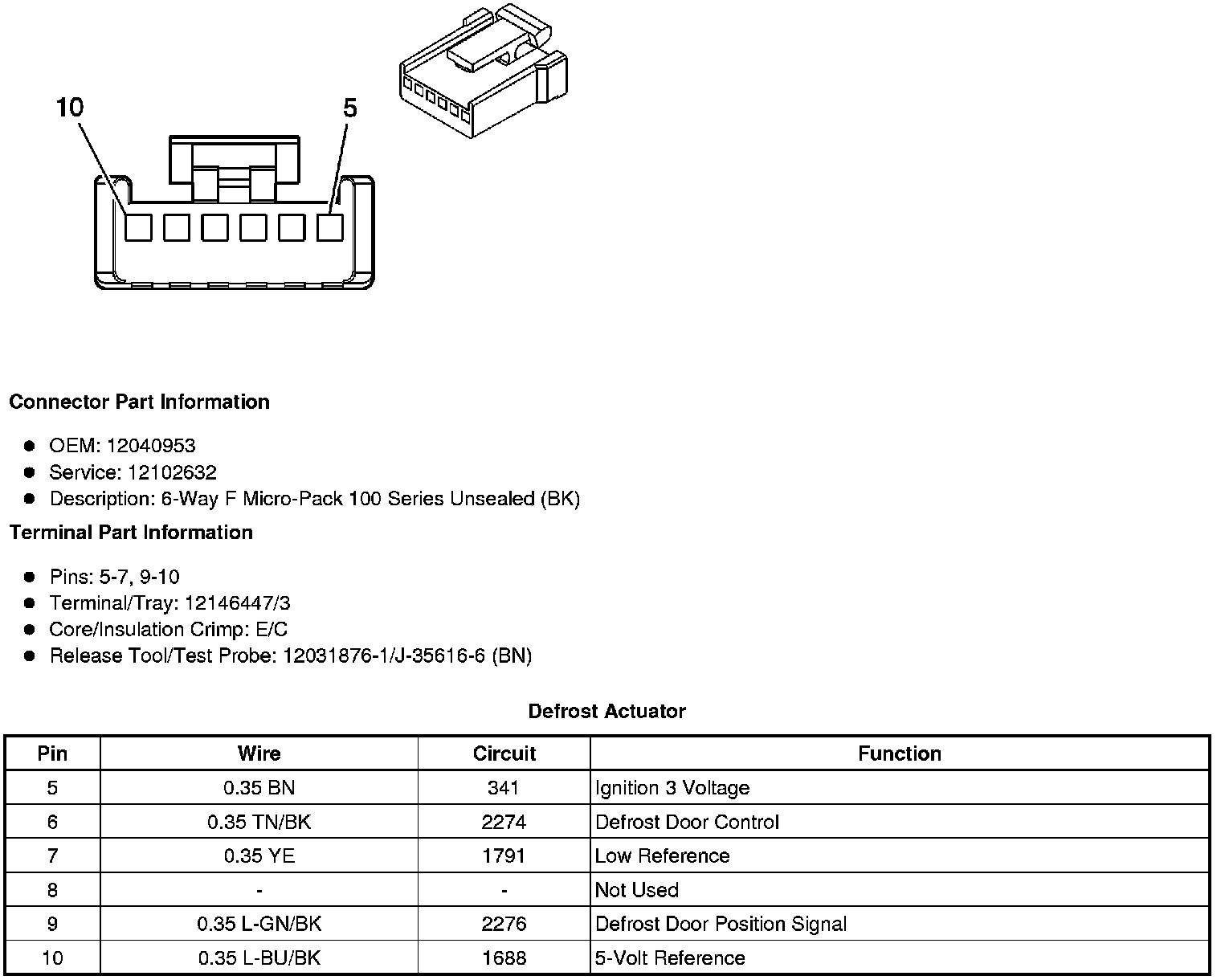

Defrost Actuator






Mode Actuator

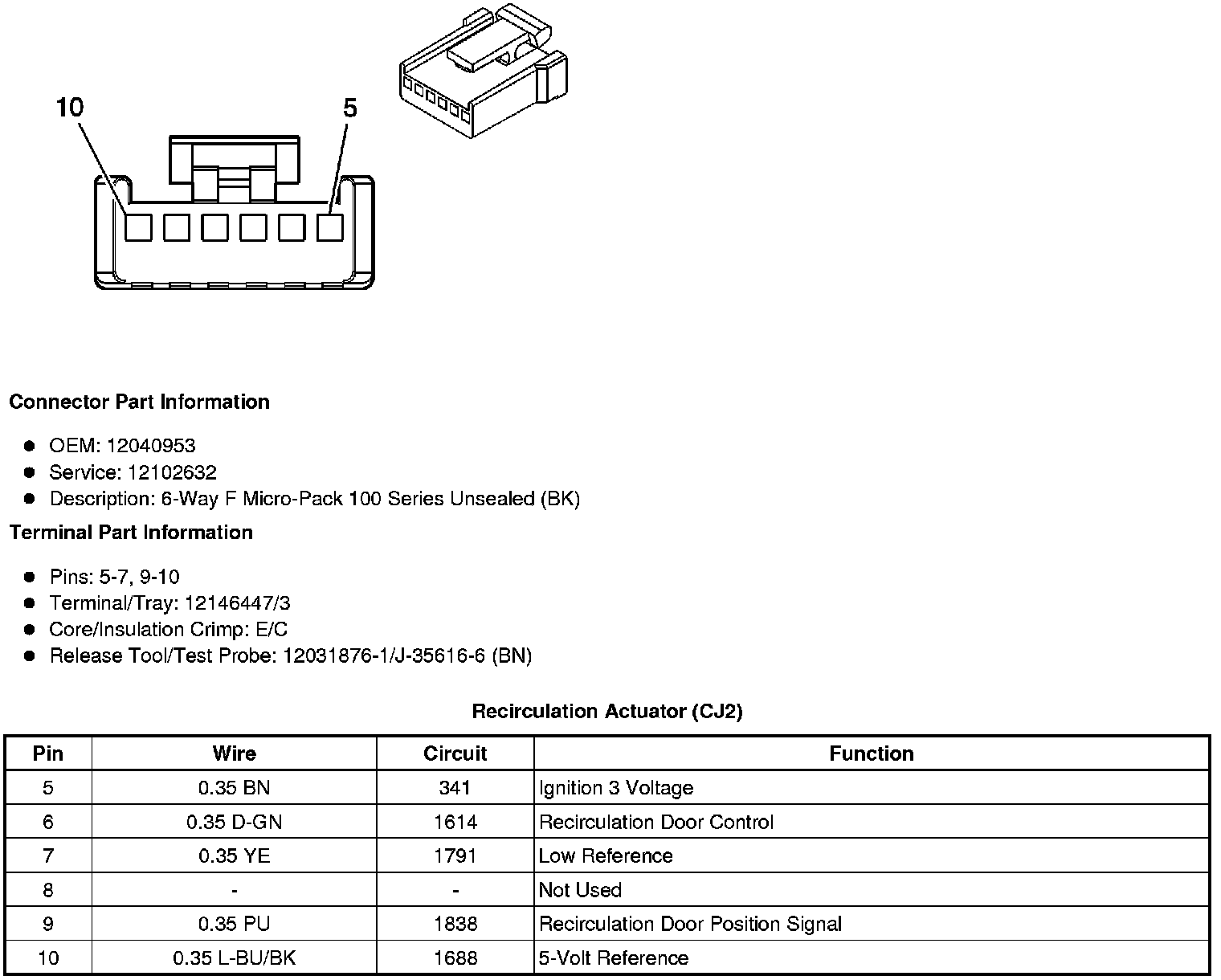

Recirculation Actuator (CJ2)






Recirculation Actuator (CJ3)
