Rear Floor Trim Panel Trim Cover Replacement

Rear Floor Trim Panel Trim Cover Replacement

Removal Procedure




1. Lower the midgate.

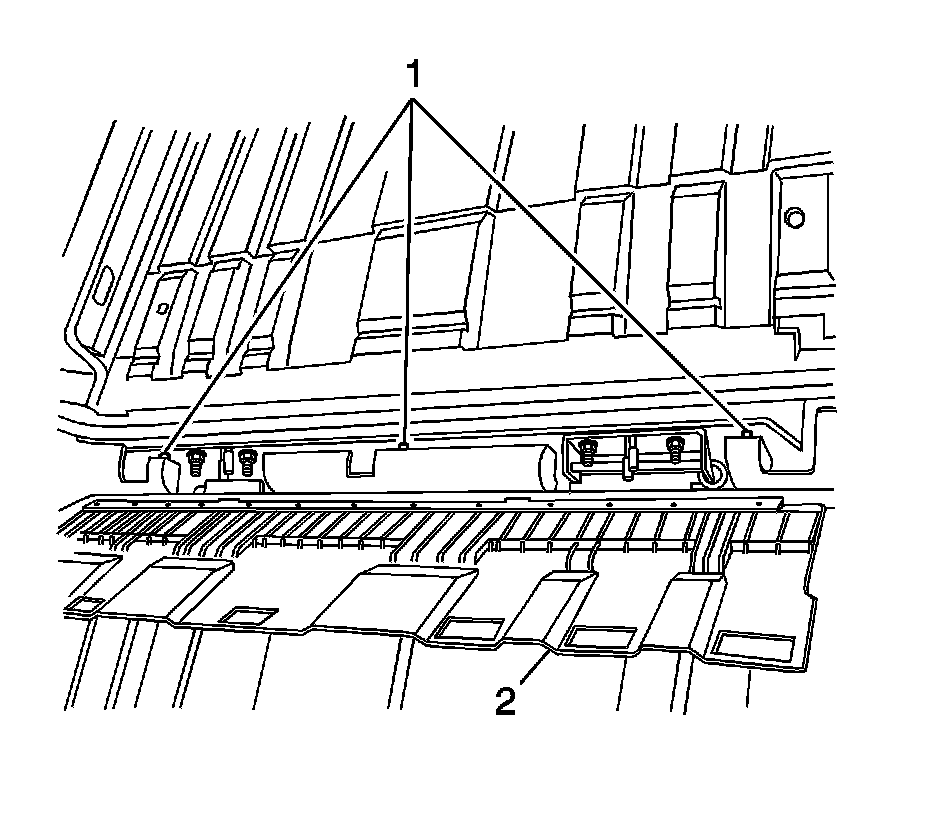

2. Fold the hinged midgate filler trim panel (2) back.
3. Release the trim cover retaining clips (1) from the sheet metal.




4. Raise the midgate to the closed position.
5. Remove the rear floor trim panel by grasping and pulling straight out to release the retaining clips.
6. Remove the rear floor trim panel from the vehicle

Installation Procedure

1. Raise the midgate to the closed position.




2. Ensure that the retaining clips are securely installed on the back side of the rear floor trim panel.
3. Install the rear floor trim panel by pressing the retaining clips into the sheet metal openings.
