Radio/Stereo: Diagrams




Component Connector End Views

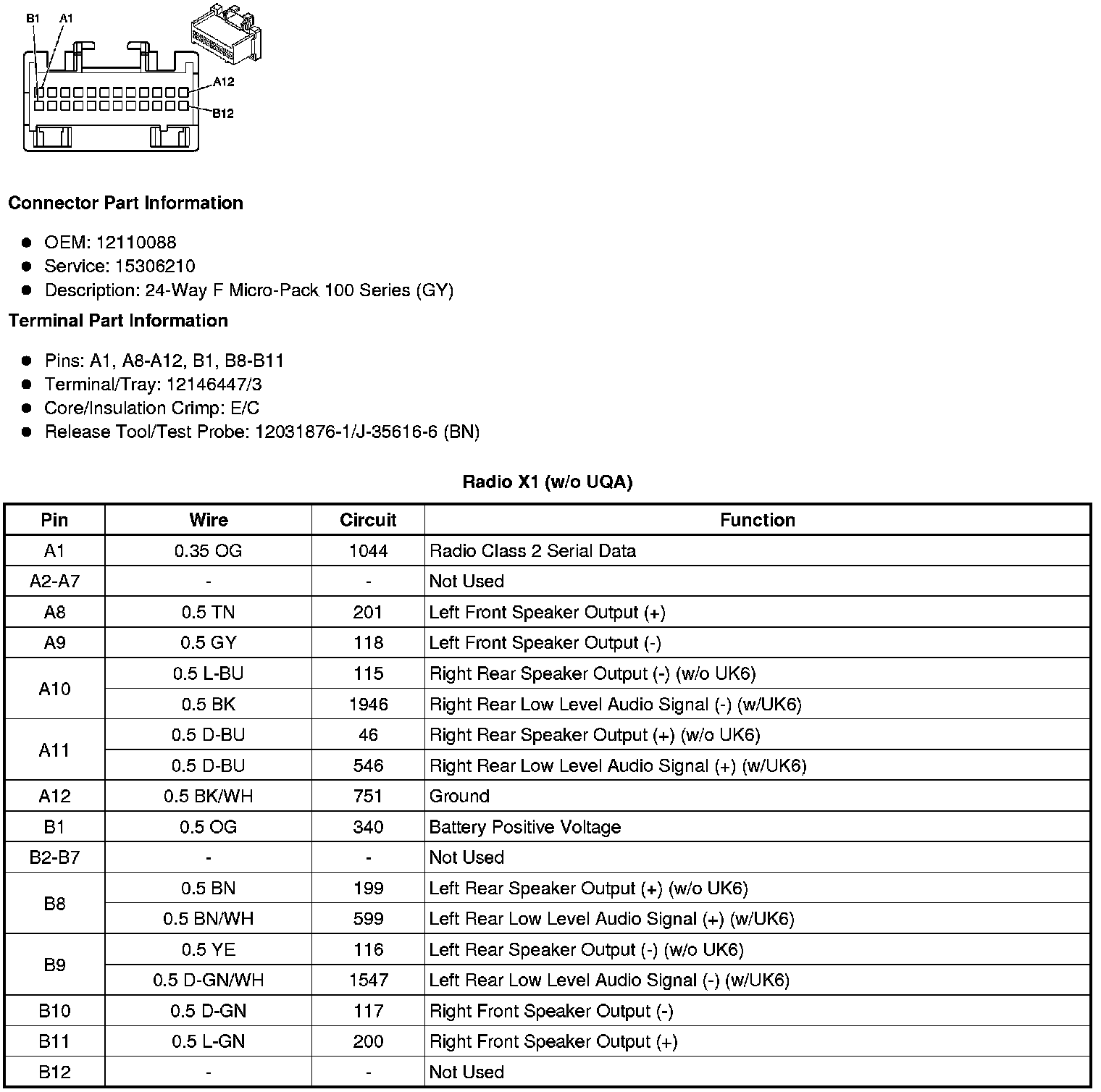

Radio X1 (w/o UQA)

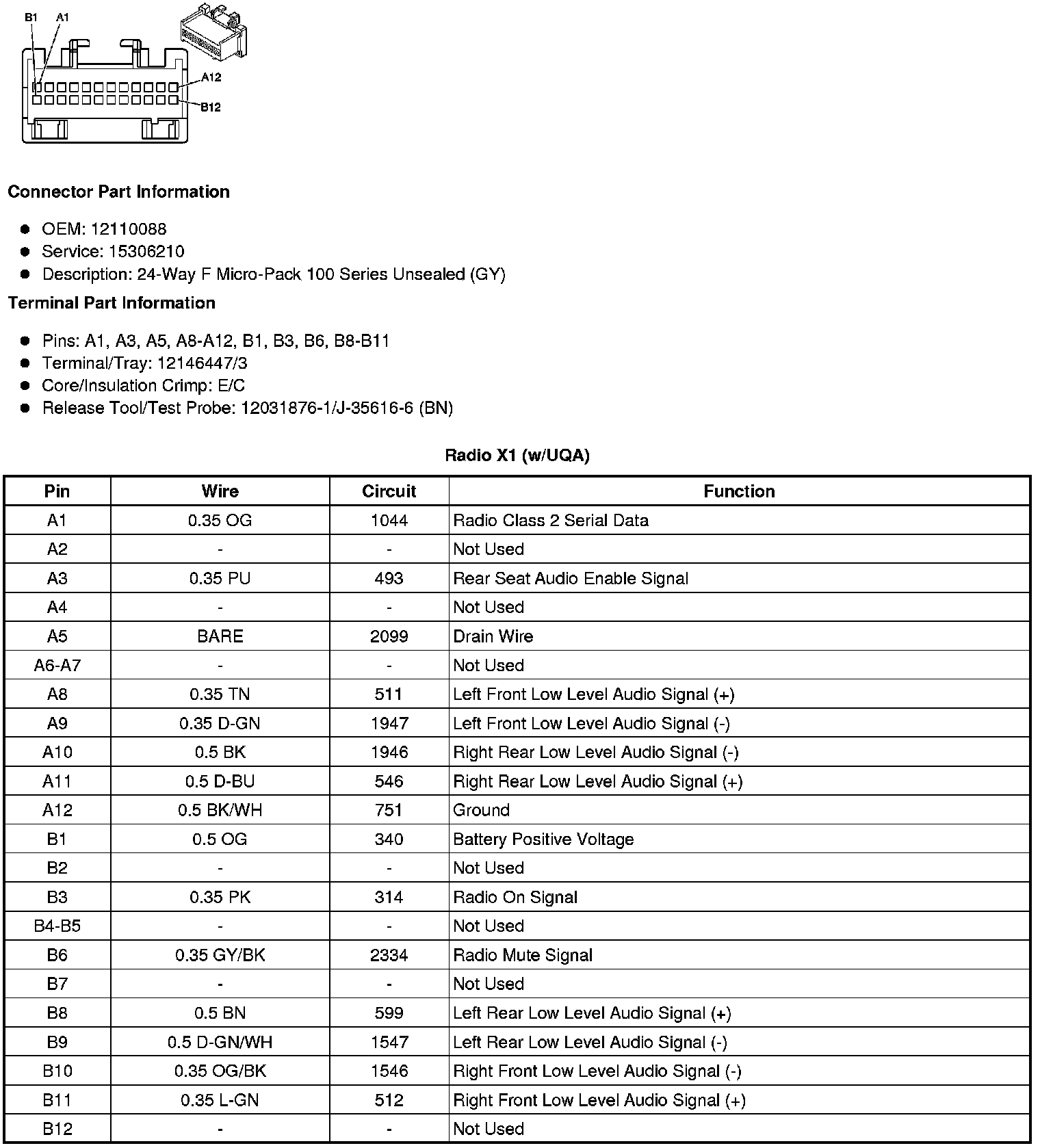

Radio X1 (w/UQA)

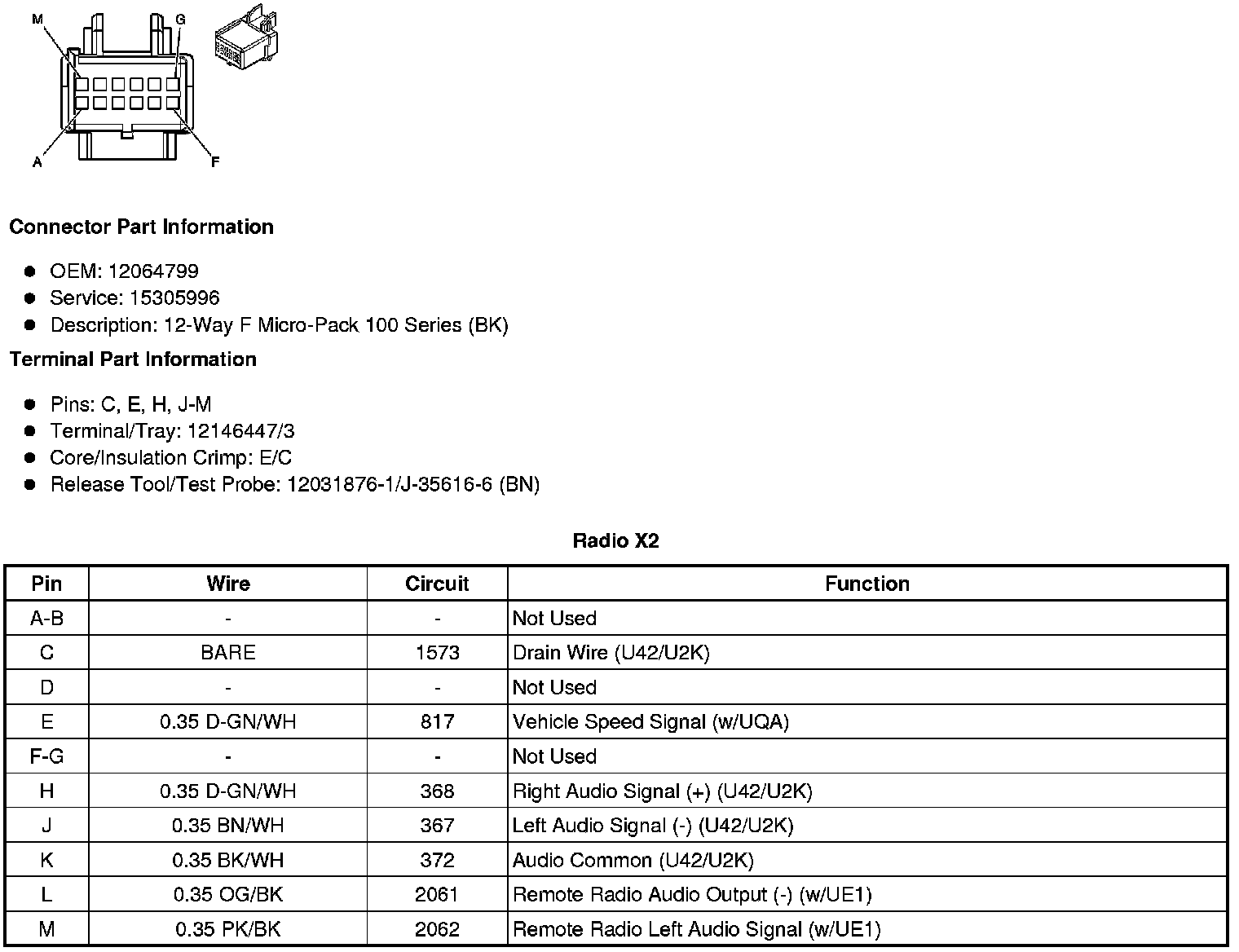

Radio X2
