Home >> Chevrolet >> 2009 >> TrailBlazer 2WD L6-4.2L >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Amplifier >> Diagrams

Amplifier: Diagrams





Component Connector End Views

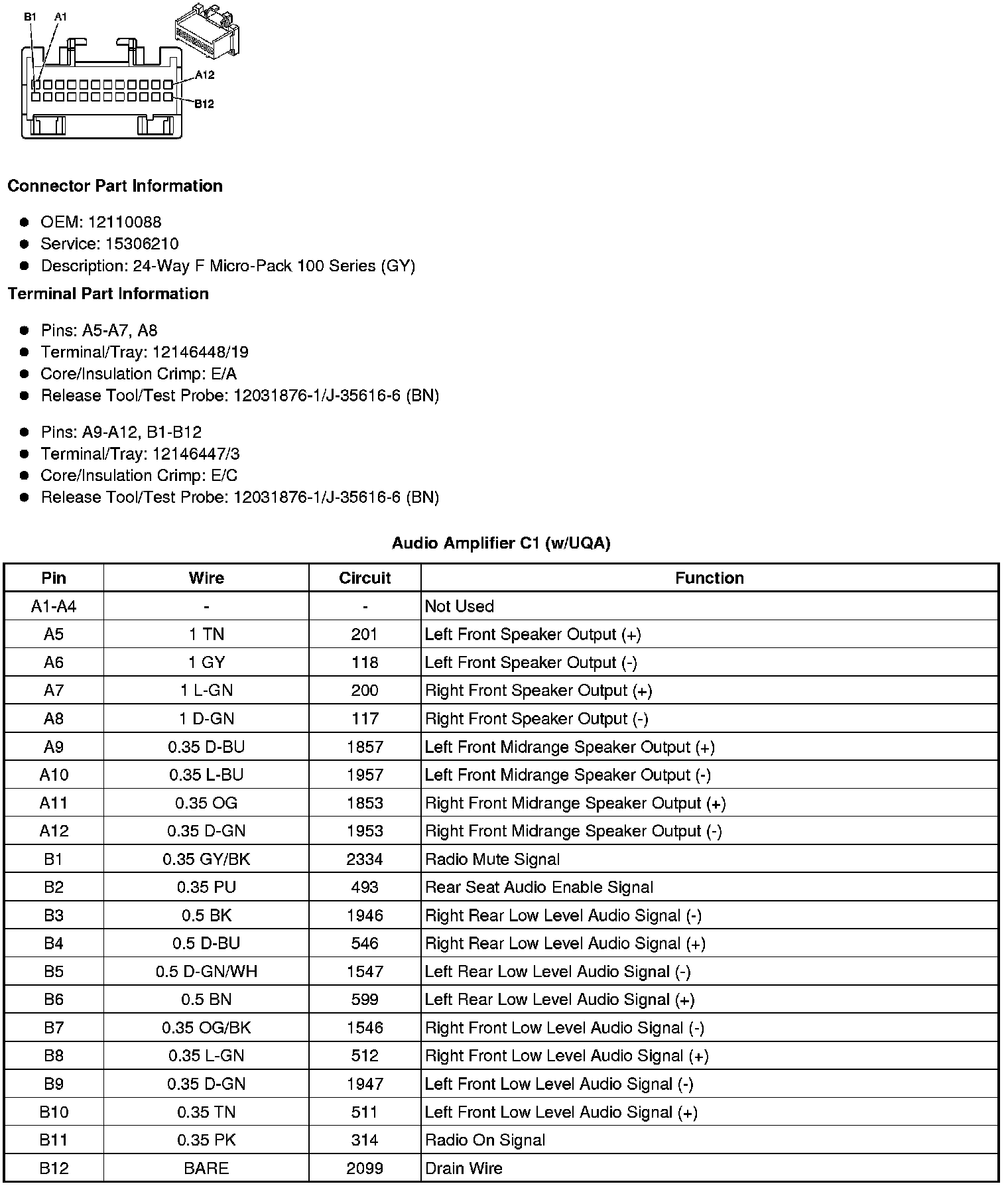

Audio Amplifier C1 (w/UQA)

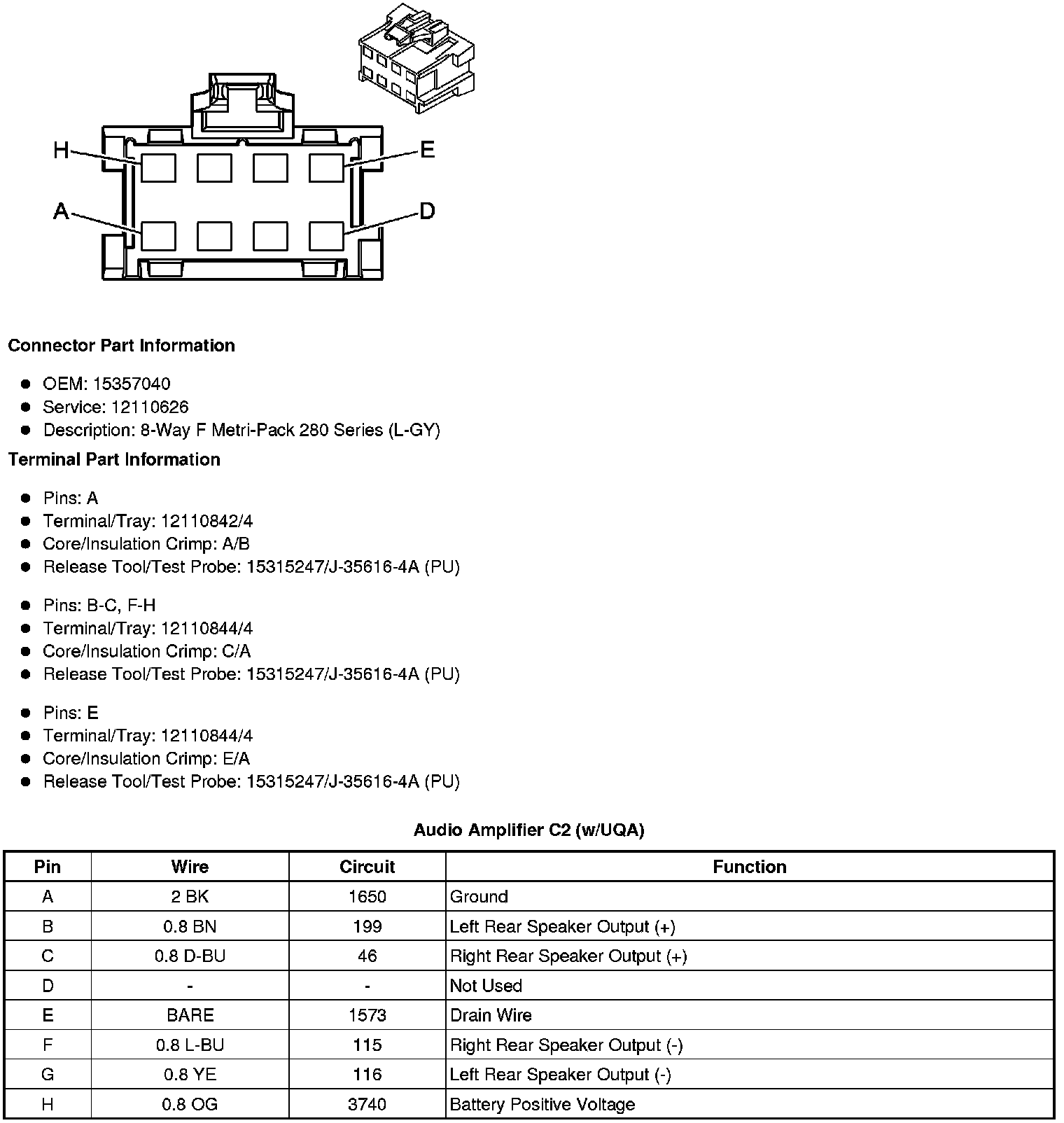

Audio Amplifier C2 (w/UQA)
