Pedal Positioning Switch: Diagrams

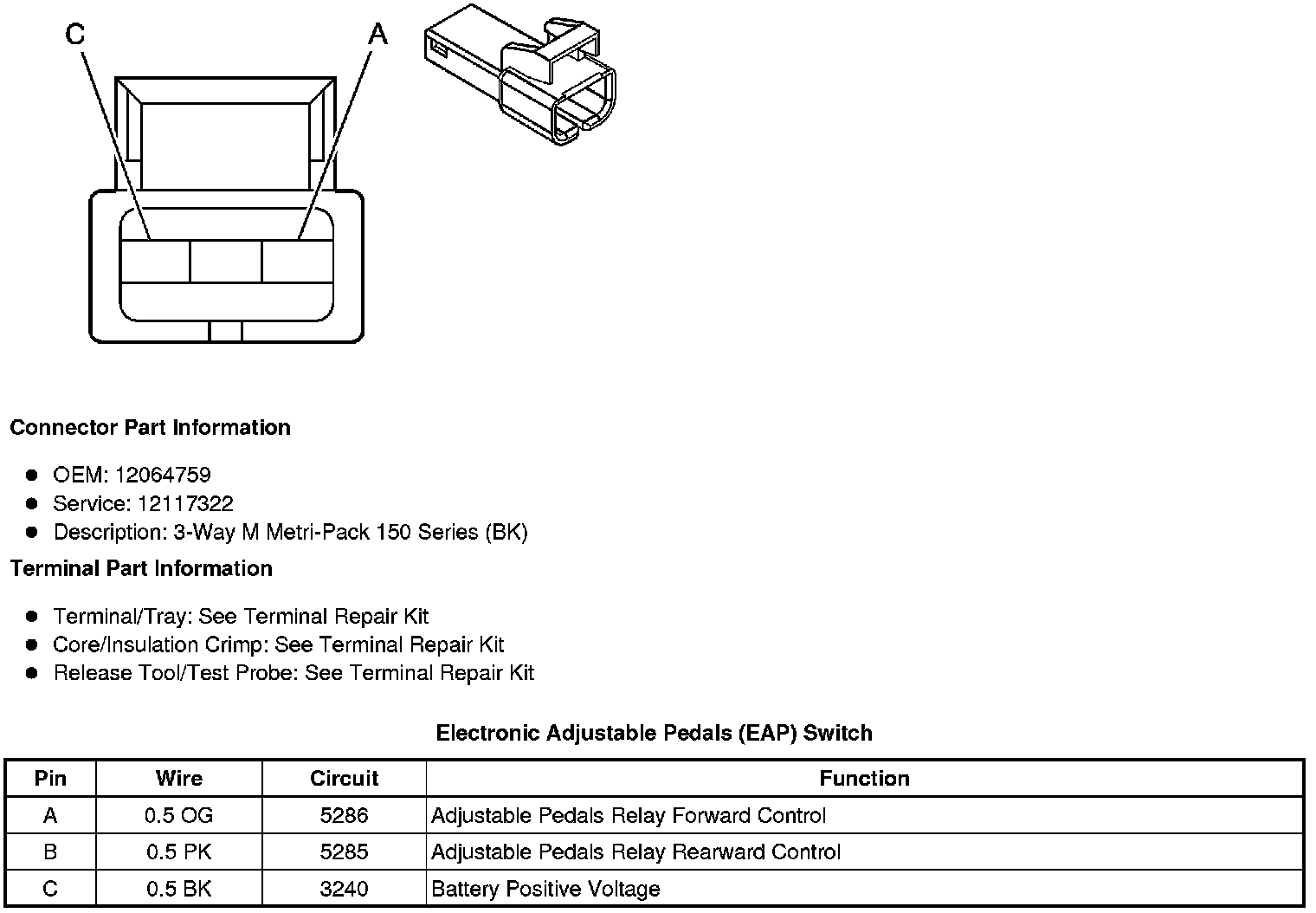

Component Connector End Views

Electronic Adjustable Pedals (EAP) Switch
