85. Throttle Body Installation




Throttle Body Installation





Note: DO NOT use the throttle body gasket again. Install a NEW gasket during assembly.

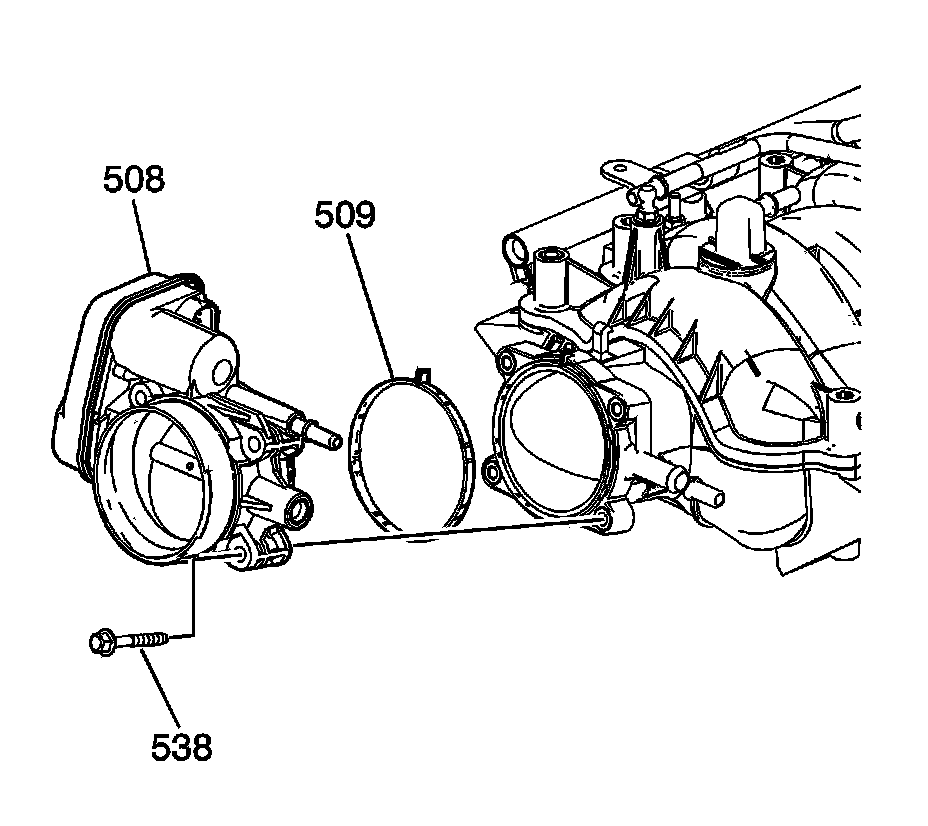

1. Install the throttle body gasket (509) to the intake manifold. Align the locating tab of the gasket with the notch in the manifold.

Caution: Refer to Fastener Caution (Fastener Caution).

2. Install the throttle body (508) and bolts (538) and tighten the throttle body bolts to 10 Nm (89 lb in).
